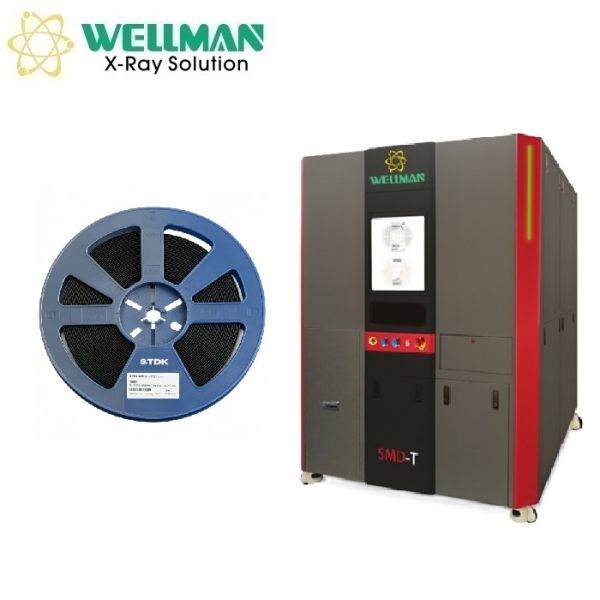

SMD Tower with ultra high capacity and smart batch scanning code loading compatible
SMD Tower with ultra high capacity and smart batch scanning code loading compatible
Specifications
Brand Name :
WELLMAN
Model Number :
Smart SMD Tower SMD-T
Certification :
CE FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Code scanning :
Barcode and QR code
Material type :
SMD reel
Power supply :
220VAC, 16A
Power :
3000W
Displayer :
17” touch screen
Description
Smart SMD Tower SMD-T
Advanced automated storage and retrieval system for SMD reels with ultra-high capacity and intelligent batch processing capabilities.
Workflow Overview
SMD Tower with ultra high capacity and smart batch scanning code loading compatible
Key Advantages
  • Ultra-high space utilization with standard capacity of approximately 750 reels
  • Batch automatic scanning code & loading, compatible with barcode/QR code, processing one reel in 12 seconds
  • Fully automatic in and out of storage, supporting 7" to 15" reels
  • Support for MES, ERP, WMS, and other management systems connection
  • Comprehensive SMD inventory management to ensure accuracy and prevent production interruptions
  • Controlled environment for SMD components with reel life monitoring
  • Automatic data backup and storage with quick search by scanning code for complete traceability
  • Customizable solutions with software technical support

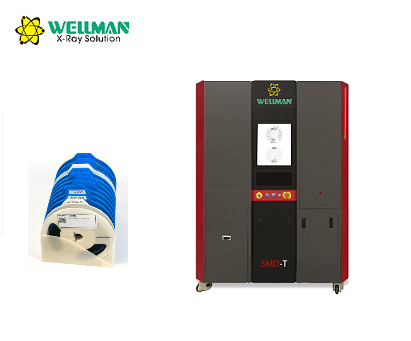

  • Height extension capability to 2.7 meters with expanded capacity to approximately 1120 reels
Hardware Specifications
Parameter Specification
In and out of storage | Code scanning Barcode and QR code
Material type SMD reel
Batch loading Yes
Standard capacity 750pcs (7" & 10mm reel)
Capacity after heightening 1120pcs (7" & 10mm reel)
Single reel cycle time 12-15s
Cycle time after heightening 12-16s
Mini height 5mm
Max height 25mm (customizable)
Max weight 3KG (customizable)
Multi-tower connection Support
WMS management Yes
Temperature and humidity warning Support
Chip mounter communication Optional
Management systems connection MES, ERP, WMS etc.
Dimensions 1450mm (L) * 1900mm (W) * 2050mm (H)
Height after heightening 2700mm
Weight 1500KG
Weight after heightening 2000KG
Power supply 220VAC, 16A
Power 3000W
Industrial PC I7 CPU, 8G RAM, 240G SSD+1T HDD
Displayer 17" touch screen
Working temperature 0 - 40°C
Working humidity 10 - 85%
Noise 50dB
Air pressure 0.5-0.7mpa
N2 interface Support
Software Functions
Function Category Feature Description
Warehouse Management System Material management Transform the unique code for new incoming material, add to the total material table
Warehouse Management System Tower setup Set up new SMD tower and its locations
Warehouse Management System Supplier info Supplier info management, add, delete or search
Warehouse Management System Customer Info Customer info management, add, delete or search
Warehouse Management System Inventory management Intelligent management of overall inventory
Warehouse Management System Inventory freeze Freeze specific locations
Warehouse Management System Inventory verification Take stock and update the data of stored reels
Warehouse Management System Scan the code and load Scan the reel code and put into location
SMD Tower database Location parameter table Record the coordinate and size info of each location
SMD Tower database Current SMD tower table Record the status of each location of the current SMD tower
SMD Tower database In & out record Record all records of material bin and material tray for traceability
SMD Tower database Operation record Record initialization, power on and off, alarm and other operations
Material bin function Initialization Initialize when the machine power on
Material bin function Single reel in Put the reel on the designated position, load it in the tower after scanning code
Material bin function Single reel out Search for the specified reel, send it out
Material bin function Batch loading Load the reels into the tower in batches automatically
Material bin function Place production orders According to the production demand, upload the P/N or unique ID to the system for analysis, then lock the reels, and inform each SMD tower to unload
Material bin function Unload to order After receiving the production order of the system, unload the reels in batches
Material bin function Lock expired reels Lock the expired reels, prevent them from entering the production process
