SMD Tower Storage Solutions 10000Pcs Capacity With Temp / Humidity Monitoring
SMD Tower Storage Solutions 10000Pcs Capacity With Temp / Humidity Monitoring
Specifications
Brand Name :
WELLMAN
Model Number :
SMD-A
Certification :
CE,FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Packaging Details :
Wooden case
Code scanning :
Barcode and QR code
Material type :
SMD reel
Power supply :
220VAC, 16A
Power :
3000W
Displayer :
17” touch screen
Description
SMD Smart Warehouse System – 10,000 Pcs Capacity + Temp/Humidity Monitoring
WELLMAN SMD Smart Warehouse System SMD-A- 10,000 Pcs Capacity + Temp/Humidity Monitoring
Our Advantages
  • Tailored to customers' on-site conditions and requirements, featuring higher space utilization than SMD Towers
  • Batch auto code scanning & loading, compatible with both barcodes and QR codes
  • Fully automated storage and retrieval, supporting 7'' to 15'' reels
  • Supports MES, ERP, WMS, and other management system connections
  • Automatically backs up and stores all data, supports quick search by scanning code
  • Customizable solutions with software technical support
  • Manages and monitors SMD inventory to ensure accuracy and prevent production interruptions
  • Provides controlled environment for SMD components and monitors reel life

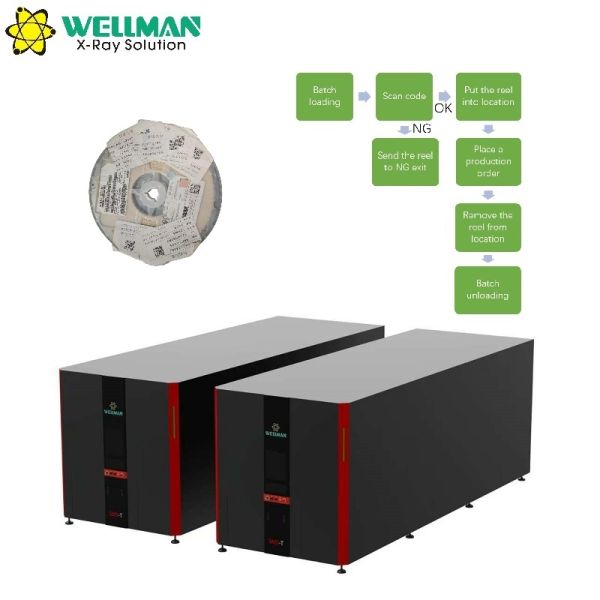

Workflow
SMD Tower Storage Solutions 10000Pcs Capacity With Temp / Humidity Monitoring
Hardware Parameters
Category Parameter Details
In and out of storage Code scanning Barcode and QR code
Material type SMD reel
Batch loading Supported
Inbound and outbound efficiency About 10 s/reel
Reel Applicable reel 7-15 inches
Applicable reel thickness 5-50 mm (customizable)
Max weight 3KG (customizable)
Standard capacity 10,000 pcs (7"&10mm reel)
System Multi-warehouse connection Supported
WMS Management Yes
Temperature and humidity warning Supported
Operating system Win10
Chip mounter communication Optional
Management systems connection Supports MES, ERP, WMS, etc.
Industrial PC I7 CPU, 16 GB RAM, 1TB SSD
Equipment Dimensions 10000mm (L) × 2000mm (W) × 2800mm (H) customized
Weight 8000KG customized
Power supply 220V customization
Power Over 3000W Customized
Displayer 17" touch screen
Working temperature 15-30°C
Working humidity 10-85%
Noise 50dB
N2 interface Supported
Software Function
Category Function Description
Warehouse Management System Material management Transform the unique code for new incoming material, add to the total material table
Tower setup Set up new Intelligent Warehouse and its locations
Supplier info Supplier info management, add, delete or search
Customer info Customer info management, add, delete or search
Inventory management Intelligent management of overall inventory
Inventory freeze Freeze specific locations
Scan the code and load Scan the reel code and put into location
Intelligent Warehouse database Location parameter table Record the coordinate and size info of each location
Current Intelligent Warehouse table Record the status of each location of the current Intelligent Warehouse
In & out record Record all records of material bin and material tray for traceability
Operation record Record initialization, power on and off, alarm and other operations
Intelligent Warehouse function Initialization Initialize when the machine power on
Single reel in Put the reel on the designated position, load it in the Warehouse after scanning code
Single reel out Search for the specified reel, send it out
Batch loading Load the reels into the Warehouse in batches automatically
Place production orders Upload the P/N or unique ID to the system for analysis, lock the reels, and inform each Intelligent Warehouse to unload
Lock expired reels Lock the expired reels, prevent them from entering the production process
