Surface Mounted Devices SMD Tower intelligent SMD material storage equipment with standard capacity 750 reels
Surface Mounted Devices SMD Tower intelligent SMD material storage equipment with standard capacity 750 reels
Specifications
Cycle Time :
12-15s (standard), 12-16s (expanded)
MOQ :
1
Model Number :
Smart SMD Tower SMD-T
Payment Terms :
T/T
Standard Capacity :
750 reels (7" & 10mm reel)
Certification :
CE FDA
Brand Name :
WELLMAN
Place of Origin :
CHINA
Description
Surface Mounted Devices SMD Tower Intelligent SMD Material Storage Equipment
Standard capacity of 750 reels with expandable options for optimized SMD material management.
Workflow Overview
Surface Mounted Devices SMD Tower intelligent SMD material storage equipment with standard capacity 750 reels
Key Advantages
  • Standard capacity of approximately 750 reels (expandable to 1120 reels)
  • Batch automatic scanning with barcode/QR code technology
  • Fully automated storage system supporting 7" to 15" reels
  • Seamless integration with MES, ERP, WMS and other management systems
  • Comprehensive inventory monitoring to ensure accuracy and prevent production interruptions
  • Controlled environment with reel life monitoring capabilities
  • Automated data backup and traceability through scanning
  • Customizable configurations with full software technical support
Software Capabilities
Function Category Features
Warehouse Management Material Management, Transform unique codes for new materials and update master inventory, Tower Configuration Setup new SMD towers and location mapping, Supplier/Customer Info Comprehensive management
Inventory Control Intelligent inventory management with location freezing, Inventory verification and automatic updates, Scan-and-load functionality for reel placement
Database Functions Location parameter recording and status tracking, Complete in/out records for full traceability, Operation logging for all system activities
Material Handling System initialization on power-up, Single reel in/out operations with scanning, Batch loading and production order processing, Expired reel locking to prevent production use
Hardware Specifications
Feature Specification
Storage Operation Automatic in/out with barcode/QR code scanning
Material Type SMD reel
Batch Loading Supported
Standard Capacity 750 reels (7" & 10mm reel)
Expanded Capacity 1120 reels (7" & 10mm reel)
Cycle Time 12-15s (standard), 12-16s (expanded)
Reel Dimensions 5mm min height, 25mm max height (customizable)
Max Weight 3KG (customizable)
System Features Multi-tower connection, WMS management, temperature/humidity monitoring
Physical Dimensions 1450mm (L) * 1900mm (W) * 2050mm (H), expandable to 2700mm height
Weight 1500KG (standard), 2000KG (expanded)
Power Requirements 220VAC, 16A, 3000W

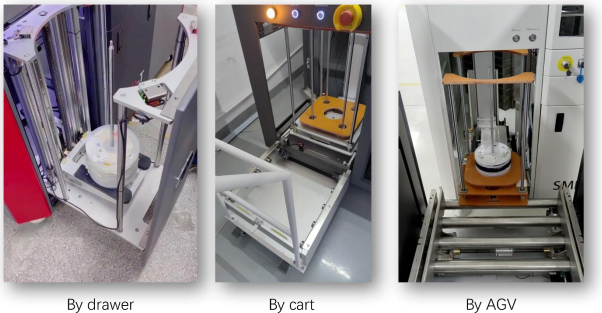

Optional Loading & Unloading Methods
Surface Mounted Devices SMD Tower intelligent SMD material storage equipment with standard capacity 750 reels
Customizable loading and unloading configurations available to suit specific operational requirements.
