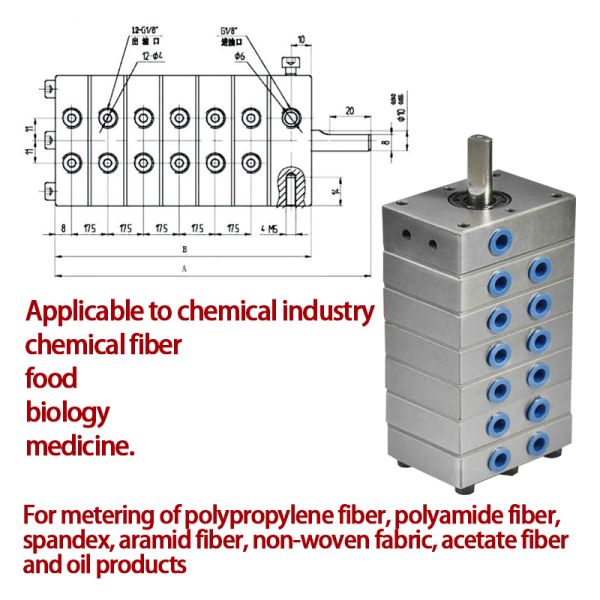

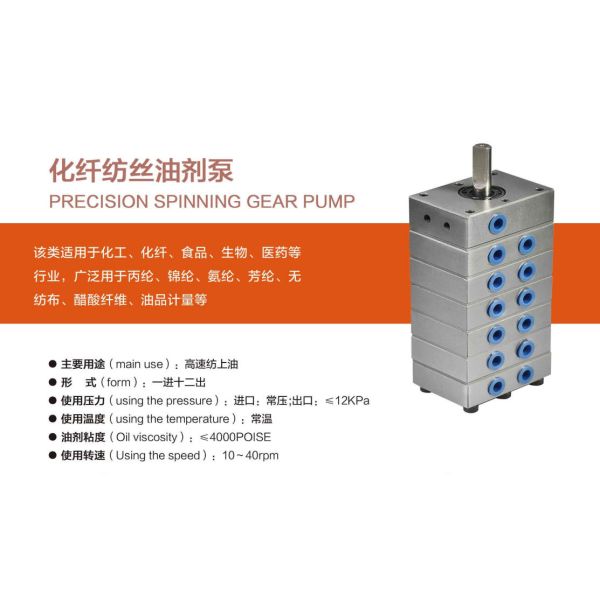

Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
Specifications
Brand Name :
ZRQH
Model Number :
JRGY-0.14×4~12
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Export Plywood Case or Carton
Main Use :
High-Speed Spinning Oiling
Structure Form :
1 Inlet & 12 Outlets
Working Pressure :
Inlet: Normal Pressure; Outlet: ≤12kpa
Working Temperature :
Normal Temperature
Applicable Oil Viscosity :
≤4000poise
Applicable Speed Range :
10~40rpm
Mounting Screw Specification :
M6 (Uniform for All Models)
Description
JRGY Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
The JRGY Series chemical fiber spinning oil pump is a high-precision multi-outlet gear metering pump specifically engineered for high-speed oiling in chemical fiber spinning processes. This advanced pump enables single-inlet, multi-outlet, precise and uniform quantitative delivery of oil agents, serving as the core precision component that ensures consistent yarn oiling throughout spinning production lines. The technology can also be adapted for micro fluid distribution applications across multiple industries.
Technical Specifications
Model JRGY-0.14×4~12
Displacement per Outlet 0.14 cc/rev
Structure 1 inlet, 12 outlets
Working Speed 10-40 rpm
Outlet Pressure ≤ 12 KPa
Working Temperature Normal temperature
Suitable Viscosity ≤ 4000 POISE
Mounting Screw M6
Overall Dimensions (L×W×H) 155.5 × 130.5 × 80 mm
Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
Main Applications
Core Industries
Chemical, chemical fiber, food, biology, medicine, and related sectors
Core Scenarios
High-speed spinning oiling for polypropylene, nylon, spandex, aramid, non-woven fabric, acetate fiber and other spinning processes
Extended Scenarios
Oil metering, micro fluid distribution, multi-channel quantitative delivery applications
Product Advantages
  • Extremely high metering accuracy with minimal error in multi-channel flow consistency
  • Ensures uniform oiling of each yarn, preventing broken wire and hairy wire issues
  • Adapts to high-speed spinning processes with 10-40rpm speed range
  • Multi-industry compatibility for food, medicine and other industrial applications
  • Complete specifications with displacement coverage from 0.06-0.20cc/rev
  • Convenient installation and maintenance with standardized interfaces
Structural Interface Features
The pump utilizes a 1-inlet 12-outlet multi-channel precision gear structure that delivers highly consistent flow across all 12 outlets. This ensures uniform oiling of each yarn during spinning processes, significantly improving product quality. The modular laminated design features a compact structure with minimal installation space requirements, making it ideal for high-speed spinning production lines. The low-pressure output design is optimized for normal pressure oil delivery conditions, providing stable operation with minimal pulsation.

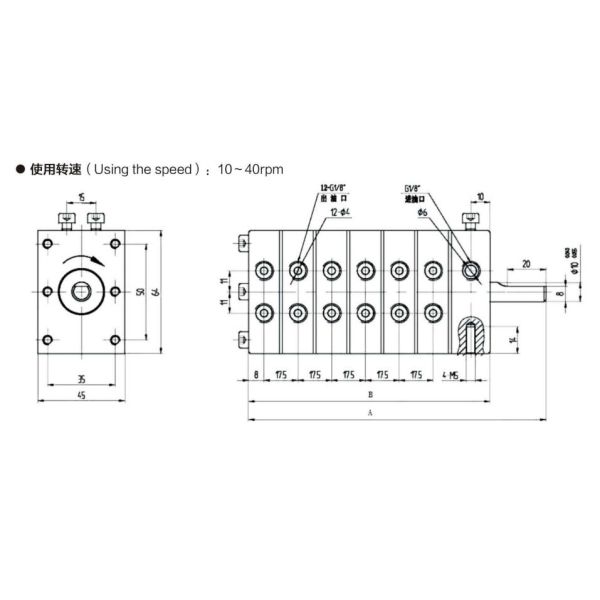

Model Specifications
Model Output per Port per Revolution (cc/rev) Dimension A (mm) Dimension B (mm) Mounting Screw
JRGY-0.06×4"12 0.06 153.5 124.5 M6
JRGY-0.08×4"12 0.08 154 125 M6
JRGY-0.10×4"12 0.10 154.5 125.5 M6
JRGY-0.12×4"12 0.12 155 130 M6
JRGY-0.14×4"12 0.14 155.5 130.5 M6
JRGY-0.16×4"12 0.16 156 131 M6
JRGY-0.18×4"12 0.18 156.5 131.5 M6
JRGY-0.20×4"12 0.20 157 132 M6
Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
Why Choose Our JR Series Metering Pump?
  • Customization Support: We accept custom displacement, interface, and material requirements for special working conditions
  • Quality Assurance: Strict factory testing ensures stable performance and extended service life
  • Professional Service: Comprehensive technical consultation, installation guidance, and after-sales support
  • Cost-Effective: High-precision metering reduces material waste while improving production efficiency
Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
After Sales Service
Enjoy complete peace of mind with our comprehensive after-sales service package. We provide a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Company Profile
Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling Jrgy Series 12-Outlet Gear Pump for Chemical Fiber Spinning Oiling
Packaging & Shipping
  • Standard export wooden case packaging for maximum transportation protection
  • Multiple shipping methods available (sea, air, express) to meet delivery requirements
  • Complete product documentation including operation manual, test reports, and quality certificates
Frequently Asked Questions
Q1: What can you buy from us?
A1: We provide comprehensive flow meter services including flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, and related instruments.
Q2: What is your terms of packing?
A2: Standard packaging includes JSN brand colorful cardboard boxes. OEM brand brown cardboard boxes available upon request.
Q3: How about your delivery time?
A3: Standard products: 6-7 working days after order confirmation. Non-standard products: 8-10 working days after order confirmation.
Q4: What's your MOQ?
A4: No minimum order quantity required. Single pieces for testing purposes are acceptable.
Q5: How do you ensure good product quality?
A5: We maintain a comprehensive quality control system with full inspection by IQC and OQC departments before shipment.
Q6: How long is your quotation valid?
A6: All quotations remain valid for 1 month.
Q7: Can you accept OEM brand?
A7: Yes, we accept OEM branding without additional charges.
Q8: How long is your product warranty?
A8: 7-day replacement and 12-month repair service free of charge for quality-related issues.
Q9: Can you produce according to the samples?
A9: Yes, we can manufacture according to your samples or technical drawings.
