Staple Fiber Spinning Pump Gear Metering Pump for Polyurethane Foaming PUR Hot Melt Adhesive Coating
Staple Fiber Spinning Pump Gear Metering Pump for Polyurethane Foaming PUR Hot Melt Adhesive Coating
Staple Fiber Spinning Pump Gear Metering Pump for Polyurethane Foaming PUR Hot Melt Adhesive Coating
Staple Fiber Spinning Pump Gear Metering Pump for Polyurethane Foaming PUR Hot Melt Adhesive Coating
Staple Fiber Spinning Pump Gear Metering Pump for Polyurethane Foaming PUR Hot Melt Adhesive Coating
Staple Fiber Spinning Pump Gear Metering Pump for Polyurethane Foaming PUR Hot Melt Adhesive Coating
Staple Fiber Spinning Pump Gear Metering Pump for Polyurethane Foaming PUR Hot Melt Adhesive Coating
Staple Fiber Spinning Pump Gear Metering Pump for Polyurethane Foaming PUR Hot Melt Adhesive Coating
Specifications
Brand Name :
ZRQH
Model Number :
JRG-20
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Export Plywood Case or Carton
Form :
One Inlet & One Outlet
Displacement (Dosing Rate Per Revolution :
20cc/Rev (Per Port)
Operating Pressure :
Inlet: ≤20MPa; Outlet: ≤40MPa
Operating Temperature :
≤320℃
Viscosity of Spinning Fluid :
≤4000 Poise
Operating Speed :
5~40 Rpm
Port Dimensions :
Inlet: φ18mm; Outlet: φ13mm
Mounting Holes :
2×φ13mm (Symmetrically Arranged)
Description

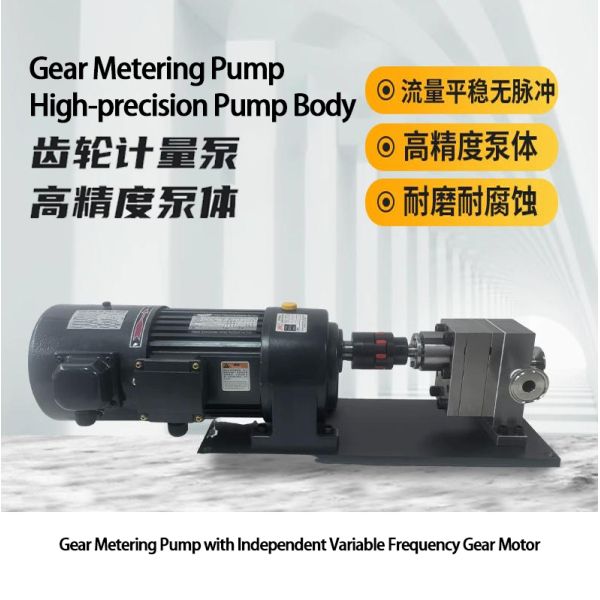

JRG Series High-Precision Gear Metering Pump
The JRG Series is a range of high-precision gear metering pumps specifically designed for the stable and accurate delivery of high-viscosity fluids. Ideal for high-temperature and high-pressure operating conditions, it is widely applied in chemical fiber, chemical engineering, and hot melt adhesive industries.
Technical Specifications
ParameterValue
ModelJRG-20
Discharge per revolution per port20 cc/rev
FormOne inlet, one outlet
Operating speed5~40 rpm
Applicable flow range100~800 cc/min (determined by speed)
Operating temperature≤320ºC
Operating pressureInlet ≤20 MPa; Outlet ≤40 MPa
Applicable fluid viscosity≤4000 POISE
Staple Fiber Spinning Pump Gear Metering Pump for Polyurethane Foaming PUR Hot Melt Adhesive Coating Staple Fiber Spinning Pump Gear Metering Pump for Polyurethane Foaming PUR Hot Melt Adhesive Coating
Main Applications
  • Textile Industry: Staple fiber spinning
  • Industrial Fluids: Glue dispensing, oil agent conveying, hydraulic pressure, pipeline pressurization, extruder booster delivery
  • Special Materials: Polyurethane (PU), PC foaming machine, PUR hot melt adhesive metering
  • Surface Treatment: Spraying, coating, precision glue metering
Product Advantages
  • High Precision Metering: Gear-driven technology ensures minimal flow variation, meeting the strict accuracy requirements of spinning processes.
  • Extreme Environment Adaptation: Withstands high temperatures up to 320ºC and outlet pressures up to 40 MPa, ensuring reliability in harsh industrial environments.
  • High Viscosity Capability: Efficiently handles fluids up to 4000 POISE, covering the majority of spinning melts and industrial adhesives.
  • Easy Integration & Maintenance: Universal installation dimensions facilitate easy equipment replacement and system integration.

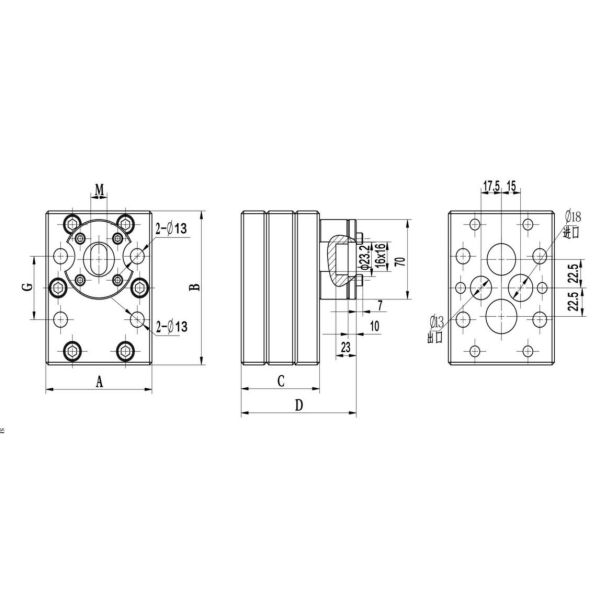

Structural Interface Features
  • Interface Layout: Standard one-inlet, one-outlet design (Inlet: Φ18, Outlet: Φ13)
  • Mounting Standard: Shared mounting dimensions (A & B consistent across models) with M16 mounting screws
  • Material & Construction: Precision machined all-metal stainless steel structure. Features external meshing gears for superior flow stability.
Staple Fiber Spinning Pump Gear Metering Pump for Polyurethane Foaming PUR Hot Melt Adhesive Coating Staple Fiber Spinning Pump Gear Metering Pump for Polyurethane Foaming PUR Hot Melt Adhesive Coating
Why Choose Our JR Series Metering Pump?
  • Customization Support: We accept custom displacement, interface, and material requirements to meet special working conditions.
  • Quality Assurance: Strict factory testing ensures stable performance and long service life, reducing maintenance costs.
  • Professional Service: We provide technical consultation, installation guidance, and after-sales support to ensure smooth equipment operation.
  • Cost-Effective: High-precision metering reduces material waste, improving production efficiency and product quality.
Staple Fiber Spinning Pump Gear Metering Pump for Polyurethane Foaming PUR Hot Melt Adhesive Coating
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Packaging & Shipping
  • Standard export wooden case packaging to protect the pump from damage during transportation.
  • Support multiple shipping methods (sea, air, express) to meet different delivery time requirements.
  • Complete product documents (operation manual, test report, quality certificate) are provided with each shipment.
Frequently Asked Questions
Q1: What can you buy from us?
A1: We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.
Q2: What is your terms of packing?
A2: Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
Q3: How about your delivery time?
A3: Generally, standard type: 6-7 working days after confirm the order. Non-standard type: 8-10 working days after confirm the order.
Q4: What's your MOQ?
A4: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q5: How do you ensure good product quality?
A5: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
Q6: How long your quotation valid?
A6: Our quotation valid for 1 month.
Q7: Can you accept OEM brand?
A7: Yes, we can accept the OEM brand without extra charge.
Q8: How long is your product warranty?
A8: 7 days replacement and 12 months repair free of charge for quality problem.
Q9: Can you produce according to the samples?
A9: Yes, we can produce by your samples or technical drawings.
