High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line
High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line
High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line
High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line
High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line
High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line
High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line
High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line
Specifications
Brand Name :
ZRQH
Model Number :
HRF-5.0
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Export Plywood Case or Carton
Main Use :
Coating & Glue Transfer Pump
Structure Form :
1 Inlet & 1 Outlet
Displacement Range :
3.6~10cc/R (Displacement Per Revolution)
Working Pressure :
Inlet: Normal Pressure; Outlet ≤15MPa
Working Temperature :
≤120℃
Applicable Medium Viscosity :
≤10000poise
Applicable Speed Range :
15~100rpm
Description
High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line

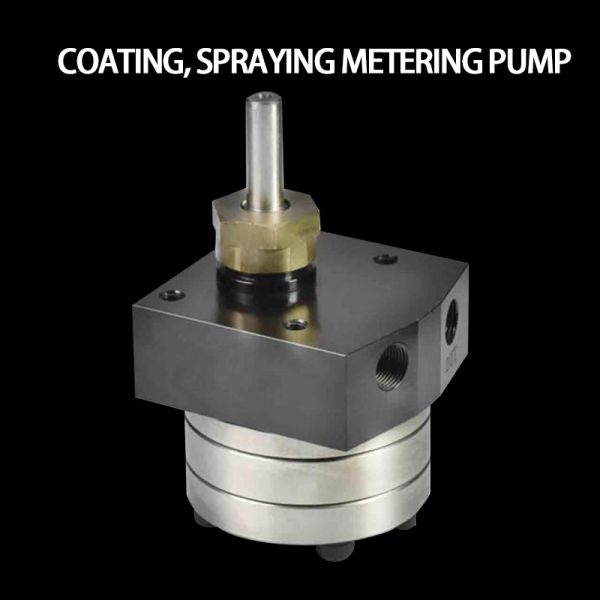

The Coating & Spraying Metering Pump is a high-precision quantitative delivery pump, specially designed for coating and spraying processes. It can deliver high-viscosity fluids such as glue, paint and oil agent stably and accurately, serving as the core precision component for coating production lines, dispensing equipment and hot melt adhesive systems, suitable for a variety of industrial fluid delivery scenarios.

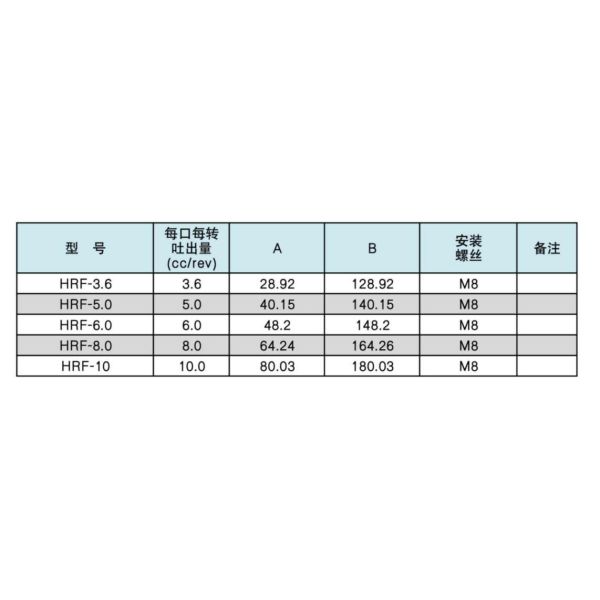

Technical Specifications
Item Specification
Model HRF-5.0
Displacement per revolution 5.0 cc/rev
Structure 1 inlet, 1 outlet
Working Speed 15-100 rpm
Working Pressure Inlet: Normal pressure; Outlet ≤ 15 MPa
Working Temperature ≤ 120 ºC
Suitable Viscosity ≤ 10000 POISE
Mounting Screw M8
Dimension A (Pump Body Length) 40.15 mm
Dimension B (Total Length with Shaft) 140.15 mm
Overall Dimensions (L×W×H) 140.15 × 86 × 54.45 mm
High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line
High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line
Main Applications
  • Coating, spraying, dispensing, oil delivery, hydraulic system, pipeline pressurization
  • Extruder supporting, booster conveying, polyurethane foaming, PC foaming machine
  • PUR hot melt adhesive, spraying, coating, glue quantitative metering
Product Advantages
High Metering Accuracy

Precision gear meshing structure ensures stable flow and minimal error, guaranteeing consistency of coating and spraying processes

High-Viscosity Adaptability

Adapts to 10000POISE high-viscosity paint and glue, meeting stringent working conditions of the coating industry

Multi-Scenario Universal

Covers multiple industrial scenarios including polyurethane foaming, hot melt adhesive, dispensing and oil delivery

Complete Specifications

Full displacement coverage of 3.6~10cc/r for accurate selection according to different production line capacities

Standardized Installation

Unified mounting flange and screw specifications for all models, facilitating standardized transformation and maintenance

Structural Interface Features
  • Main Body Mounting Flange: 86×90mm
  • Shaft End Specification: Φ12.7mm, Shaft Extension Height 54.45mm
  • Inlet & Outlet Diameter: Φ86mm, suitable for standard coating pipelines
High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line
High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line
Why Choose Our JR Series Metering Pump?
  • Customization Support: We accept custom displacement, interface, and material requirements to meet special working conditions
  • Quality Assurance: Strict factory testing ensures stable performance and long service life, reducing maintenance costs
  • Professional Service: We provide technical consultation, installation guidance, and after-sales support
  • Cost-Effective: High-precision metering reduces material waste, improving production efficiency and product quality
High Viscosity Gear Metering Pump for Industrial Paint Spraying & Coating Line
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Packaging & Shipping
  • Standard export wooden case packaging to protect the pump from damage during transportation
  • Support multiple shipping methods (sea, air, express) to meet different delivery time requirements
  • Complete product documents (operation manual, test report, quality certificate) provided with each shipment
Frequently Asked Questions
What can you buy from us?
We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.
What is your terms of packing?
Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
How about your delivery time?
Generally, standard type: 6-7 working days after confirm the order. Non-standard type: 8-10 working days after confirm the order.
What's your MOQ?
We have no MOQ demand, 1 piece for test purpose at first is acceptable.
How do you ensure good product quality?
We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
How long your quotation valid?
Our quotation valid for 1 month.
Can you accept OEM brand?
Yes, we can accept the OEM brand without extra charge.
How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problem.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
