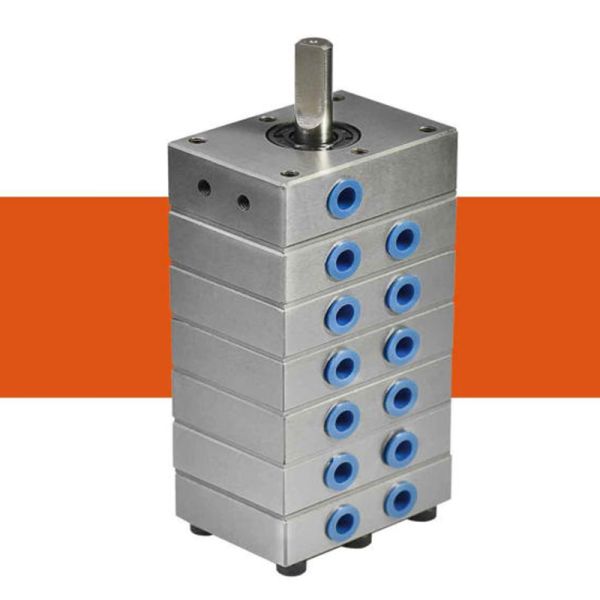

Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling
Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling
Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling
Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling
Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling
Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling
Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling
Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling
Specifications
Brand Name :
ZRQH
Model Number :
JRGY-0.06×4~12
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Export Plywood Case or Carton
Main Use :
High-Speed Spinning Oiling
Structure Form :
1 Inlet & 12 Outlets
Working Pressure :
Inlet: Normal Pressure; Outlet: ≤12kpa
Working Temperature :
Normal Temperature
Applicable Oil Viscosity :
≤4000poise
Applicable Speed Range :
10~40rpm
Mounting Screw Specification :
M6 (Uniform for All Models)
Description
Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump
High-precision multi-outlet gear metering pump specifically designed for high-speed oiling in chemical fiber spinning processes. This pump enables single-inlet, multi-outlet, accurate and uniform quantitative delivery of oil agents, serving as the core precision component to ensure yarn oiling consistency in spinning production lines.
Technical Specifications
Parameter Specification
Main Use High-speed Spinning Oiling
Structure Form 1 Inlet & 12 Outlets
Working Pressure Inlet: Normal Pressure; Outlet: ≤12KPa
Working Temperature Normal Temperature
Applicable Oil Viscosity ≤4000POISE
Applicable Speed Range 10~40rpm
Mounting Screw Specification M6 (Uniform for All Models)
Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling
Main Applications
Core Industries
Chemical, chemical fiber, food, biology, medicine, and related industries
Core Scenarios
High-speed spinning oiling for polypropylene, nylon, spandex, aramid, non-woven fabric, acetate fiber and other spinning processes
Extended Scenarios
Oil metering, micro fluid distribution, multi-channel quantitative delivery applications
Product Advantages
  • Extremely high metering accuracy with minimal error in multi-channel flow consistency
  • Adapts to high-speed spinning process with 10~40rpm speed range
  • Multi-industry universal application beyond chemical fiber spinning
  • Complete specifications with full displacement coverage of 0.06~0.20cc/rev
  • Convenient installation and maintenance with standardized interfaces
Structural Interface Features
1-inlet 12-outlet multi-channel precision gear structure with highly consistent flow at all outlets. Modular laminated design with compact structure suitable for high-speed spinning production lines. Low-pressure output design for stable operation with minimal pulsation.
Model Specifications
Model Output per Port per Revolution (cc/rev) Dimension A (mm) Dimension B (mm) Mounting Screw
JRGY-0.06×4"12 0.06 153.5 124.5 M6
JRGY-0.08×4"12 0.08 154 125 M6
JRGY-0.10×4"12 0.10 154.5 125.5 M6
JRGY-0.12×4"12 0.12 155 130 M6
JRGY-0.14×4"12 0.14 155.5 130.5 M6
JRGY-0.16×4"12 0.16 156 131 M6
JRGY-0.18×4"12 0.18 156.5 131.5 M6
JRGY-0.20×4"12 0.20 157 132 M6
Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling
Why Choose Our JR Series Metering Pump?
  • Customization Support: Custom displacement, interface, and material requirements
  • Quality Assurance: Strict factory testing ensures stable performance and long service life
  • Professional Service: Technical consultation, installation guidance, and after-sales support
  • Cost-Effective: High-precision metering reduces material waste and improves efficiency
Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling
After Sales Service
Comprehensive after-sales service including 7-day replacement policy and 12-month repair service absolutely free of charge for any quality-related issues.
Company Profile
Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling
Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling Jrgy Series 1-Inlet 12-Outlet Precision Spinning Gear Pump for Chemical Fiber High-Speed Oiling
Packaging & Shipping
Standard export wooden case packaging to protect the pump during transportation. Support for multiple shipping methods (sea, air, express) to meet different delivery time requirements. Complete product documents including operation manual, test report, and quality certificate provided with each shipment.
Frequently Asked Questions
What can you buy from us?
We provide one-stop flow meter services including flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, and related instruments.
What is your terms of packing?
Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing available.
How about your delivery time?
Standard type: 6-7 working days after order confirmation. Non-standard type: 8-10 working days after order confirmation.
What's your MOQ?
No MOQ requirement - 1 piece for test purpose is acceptable.
How do you ensure good product quality?
Complete quality control system with all products fully checked by IQC and OQC departments before shipment.
How long your quotation valid?
Our quotation is valid for 1 month.
Can you accept OEM brand?
Yes, we accept OEM brand without extra charge.
How long is your product warranty?
7 days replacement and 12 months repair free of charge for quality problems.
Can you produce according to the samples?
Yes, we can produce according to your samples or technical drawings.
