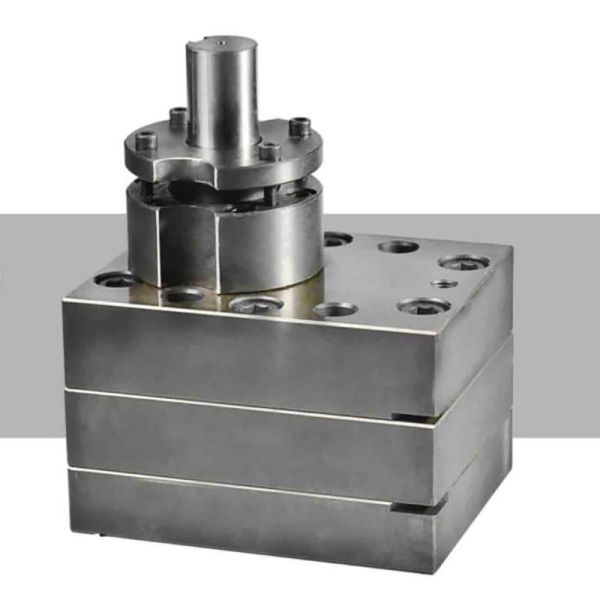

Jrg Series Glue Gear Metering Pump 40-125cc/R for PUR Hot Melt Adhesive & Polyurethane Foaming
Jrg Series Glue Gear Metering Pump 40-125cc/R for PUR Hot Melt Adhesive & Polyurethane Foaming
Jrg Series Glue Gear Metering Pump 40-125cc/R for PUR Hot Melt Adhesive & Polyurethane Foaming
Jrg Series Glue Gear Metering Pump 40-125cc/R for PUR Hot Melt Adhesive & Polyurethane Foaming
Jrg Series Glue Gear Metering Pump 40-125cc/R for PUR Hot Melt Adhesive & Polyurethane Foaming
Jrg Series Glue Gear Metering Pump 40-125cc/R for PUR Hot Melt Adhesive & Polyurethane Foaming
Jrg Series Glue Gear Metering Pump 40-125cc/R for PUR Hot Melt Adhesive & Polyurethane Foaming
Jrg Series Glue Gear Metering Pump 40-125cc/R for PUR Hot Melt Adhesive & Polyurethane Foaming
Specifications
Brand Name :
ZRQH
Model Number :
JRG-40
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Export Plywood Case or Carton
Structure Form :
1 Inlet & 1 Outlet
Displacement Range :
30~100cc/R (Displacement Per Revolution)
Working Pressure :
Inlet ≤20MPa; Outlet ≤40MPa
Working Temperature :
≤320℃
Applicable Fluid Viscosity :
≤4000poise
Applicable Speed Range :
5~40rpm
Displacement :
40 Cc/Rev
Inlet Pressure :
≤ 2.0 MPa
Outlet Pressure :
≤ 4.0 MPa
Description
JRG Series Glue Gear Metering Pump 40-125cc/R
High-precision gear metering pump designed for stable and accurate delivery of high-viscosity fluids including PUR hot melt adhesive and polyurethane foaming applications.
Technical Specifications
Parameter Specification
Main Use Liquid Transfer Pump
Structure Form 1 Inlet & 1 Outlet
Displacement Range 40~125cc/r (Displacement per Revolution)
Working Pressure Inlet ≤20MPa; Outlet ≤40MPa
Working Temperature ≤220ºC
Applicable Fluid Viscosity ≤4000POISE
Applicable Speed Range 5~80rpm
Jrg Series Glue Gear Metering Pump 40-125cc/R for PUR Hot Melt Adhesive & Polyurethane Foaming Jrg Series Glue Gear Metering Pump 40-125cc/R for PUR Hot Melt Adhesive & Polyurethane Foaming
Main Applications
  • Dispensing, oil delivery, hydraulic system, pipeline pressurization
  • Extruder supporting, booster conveying, polyurethane foaming, PC foaming machine
  • PUR hot melt adhesive, spraying, coating, glue quantitative metering
Product Advantages
  • High metering accuracy: Precision gear meshing structure ensures stable flow and minimal error
  • Strong working condition adaptability: Withstands 40MPa high pressure and 220ºC high temperature
  • Multi-scenario universal: Covers multiple industrial scenarios including polyurethane foaming and hot melt adhesive
  • Complete specifications: Full displacement coverage of 40~125cc/r for different production line capacities
  • Standardized installation: Unified top mounting flange size for all models
Structural Interface Features
  • Interface Layout: Standard one-inlet, one-outlet design (Inlet: Φ18, Outlet: Φ13)
  • Mounting Standard: Shared mounting dimensions with M16 mounting screws
  • Material & Construction: Precision machined all-metal stainless steel structure with external meshing gears
Jrg Series Glue Gear Metering Pump 40-125cc/R for PUR Hot Melt Adhesive & Polyurethane Foaming Jrg Series Glue Gear Metering Pump 40-125cc/R for PUR Hot Melt Adhesive & Polyurethane Foaming
Why Choose Our JRG Series Metering Pump?
  • Customization Support: Accept custom displacement, interface, and material requirements
  • Quality Assurance: Strict factory testing ensures stable performance and long service life
  • Professional Service: Technical consultation, installation guidance, and after-sales support
  • Cost-Effective: High-precision metering reduces material waste and improves production efficiency
Jrg Series Glue Gear Metering Pump 40-125cc/R for PUR Hot Melt Adhesive & Polyurethane Foaming
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues.
Packaging & Shipping
  • Standard export wooden case packaging to protect the pump from damage during transportation
  • Support multiple shipping methods (sea, air, express) to meet different delivery time requirements
  • Complete product documents (operation manual, test report, quality certificate) provided with each shipment
Frequently Asked Questions
Q1: What can you buy from us?
A1: We provide one-stop flow meter services including flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, and more.
Q2: What is your terms of packing?
A2: Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
Q3: How about your delivery time?
A3: Standard type: 6-7 working days after order confirmation. Non-standard type: 8-10 working days after order confirmation.
Q4: What's your MOQ?
A4: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q5: How do you ensure good product quality?
A5: We have a complete quality control system; All products are fully checked by IQC, OQC departments before shipping.
Q6: How long your quotation valid?
A6: Our quotation valid for 1 month.
Q7: Can you accept OEM brand?
A7: Yes, we can accept the OEM brand without extra charge.
Q8: How long is your product warranty?
A8: 7 days replacement and 12 months repair free of charge for quality problem.
Q9: Can you produce according to the samples?
A9: Yes, we can produce by your samples or technical drawings.
