Specifications
Brand Name :
ZRQH
Model Number :
JRG-125
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Export Plywood Case or Carton
Structure Form :
1 Inlet & 1 Outlet
Displacement Range :
30~100cc/R (Displacement Per Revolution)
Working Pressure :
Inlet ≤20MPa; Outlet ≤40MPa
Working Temperature :
≤320℃
Applicable Fluid Viscosity :
≤4000poise
Applicable Speed Range :
5~40rpm
Displacement :
125 Cc/Rev
Inlet Pressure :
≤ 2.0 MPa
Outlet Pressure :
≤ 4.0 MPa
Description

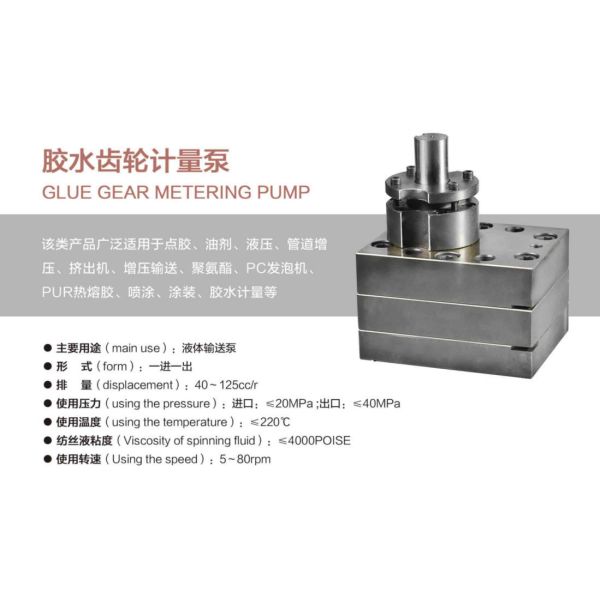

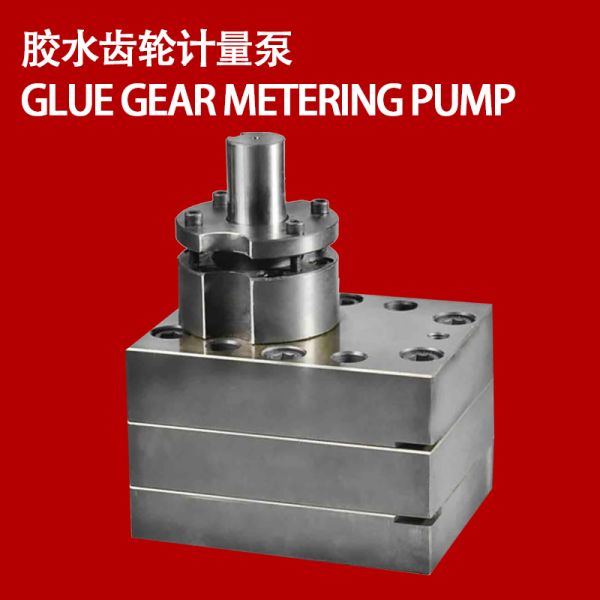

JRG Glue Gear Pump for High Viscosity Polymer Melt
The Glue Gear Metering Pump is a high-precision quantitative delivery pump designed for accurate and stable conveying of glue, oil, and high-viscosity fluids. It serves as a core precision component for dispensing, coating, foaming, and other industrial fluid delivery processes.
Product Specifications
Item Specification
Model JRG-125
Displacement 125 cc/rev
Working Speed 5-80 rpm
Inlet Pressure ≤ 20 MPa
Outlet Pressure ≤ 40 MPa
Working Temperature ≤ 220 ºC
Suitable Viscosity ≤ 4000 POISE
Main Use Liquid Transfer Pump
Structure Form 1 Inlet & 1 Outlet
Jrg Glue Gear Pump for High Viscosity Polymer Melt in Chemical Fiber & Adhesive Dosing System
Jrg Glue Gear Pump for High Viscosity Polymer Melt in Chemical Fiber & Adhesive Dosing System
Main Applications
This product is widely used in various industrial applications including:
  • Dispensing, oil delivery, hydraulic systems, and pipeline pressurization
  • Extruder supporting and booster conveying
  • Polyurethane foaming and PC foaming machines
  • PUR hot melt adhesive, spraying, coating, and glue quantitative metering
Product Advantages
  • High Metering Accuracy: Precision gear meshing structure ensures stable flow with minimal error, guaranteeing consistency in dispensing and coating processes
  • Strong Working Condition Adaptability: Withstands 40MPa high pressure and 220ºC high temperature, adapts to 4000POISE high-viscosity glue/melt
  • Multi-Scenario Universal: Covers multiple industrial scenarios including polyurethane foaming, hot melt adhesive, coating, and oil delivery
  • Complete Specifications: Full displacement coverage from 40~125cc/r for accurate selection based on production line capacities
  • Standardized Installation: Unified top mounting flange size for all models facilitates standardized transformation and maintenance

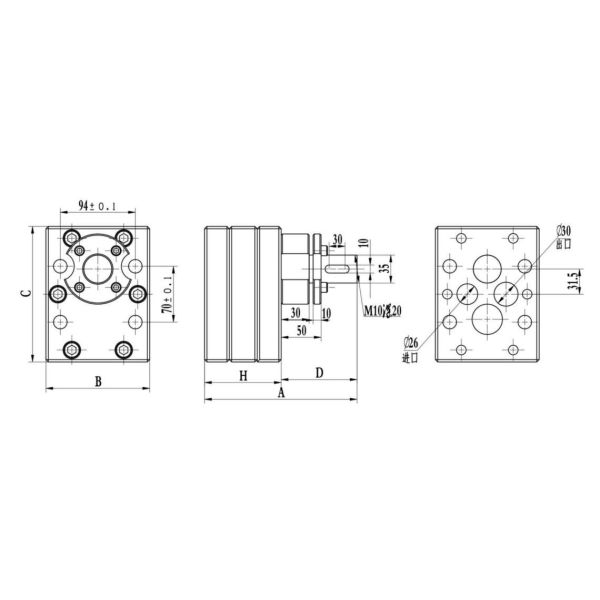

Structural Interface Features
Universal Installation Dimensions (Consistent for All Models):
  • Top Mounting Flange: 130.0mm × 170.0mm (Tolerance ±0.1mm)
  • Main Body Mounting Flange: 94±0.1mm × 70±0.1mm
  • Inlet & Outlet Diameter: Inlet Φ26mm, Outlet Φ30mm
  • Shaft End Specification: M10×Φ20, Keyway 3×10mm, Shaft Extension Height 35mm
Model Specifications
Model Output per Port per Revolution (cc/rev) Dimension A (mm) Dimension B (mm) Mounting Screw Specification
JRG-30 30 91.8 166.8 M16
JRG-40 40 98.8 173.8 M16
JRG-50 50 105.8 180.7 M16
JRG-70 70 119.8 194.8 M16
JRG-100 100 142 217 M16
Jrg Glue Gear Pump for High Viscosity Polymer Melt in Chemical Fiber & Adhesive Dosing System
Jrg Glue Gear Pump for High Viscosity Polymer Melt in Chemical Fiber & Adhesive Dosing System
Why Choose Our JR Series Metering Pump?
  • Customization Support: We accept custom displacement, interface, and material requirements for special working conditions
  • Quality Assurance: Strict factory testing ensures stable performance and long service life, reducing maintenance costs
  • Professional Service: Technical consultation, installation guidance, and after-sales support for smooth equipment operation
  • Cost-Effective: High-precision metering reduces material waste while improving production efficiency and product quality
Jrg Glue Gear Pump for High Viscosity Polymer Melt in Chemical Fiber & Adhesive Dosing System
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Company Profile
Jrg Glue Gear Pump for High Viscosity Polymer Melt in Chemical Fiber & Adhesive Dosing System
Jrg Glue Gear Pump for High Viscosity Polymer Melt in Chemical Fiber & Adhesive Dosing System
Jrg Glue Gear Pump for High Viscosity Polymer Melt in Chemical Fiber & Adhesive Dosing System
Packaging & Shipping
  • Standard export wooden case packaging to protect the pump from damage during transportation
  • Support multiple shipping methods (sea, air, express) to meet different delivery time requirements
  • Complete product documents (operation manual, test report, quality certificate) provided with each shipment
Frequently Asked Questions
Q1: What can you buy from us?
A1: We provide one-stop flow meter services, including flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, and other instruments.
Q2: What is your terms of packing?
A2: Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
Q3: How about your delivery time?
A3: Standard type: 6-7 working days after order confirmation. Non-standard type: 8-10 working days after order confirmation.
Q4: What's your MOQ?
A4: We have no MOQ requirement - 1 piece for test purposes is acceptable.
Q5: How do you ensure good product quality?
A5: We maintain a complete quality control system with all products fully checked by IQC and OQC departments before shipment.
Q6: How long is your quotation valid?
A6: Our quotations are valid for 1 month.
Q7: Can you accept OEM brand?
A7: Yes, we accept OEM branding without extra charge.
Q8: How long is your product warranty?
A8: 7 days replacement and 12 months repair free of charge for quality problems.
Q9: Can you produce according to the samples?
A9: Yes, we can produce according to your samples or technical drawings.
