Specifications
Brand Name :
ZRQH
Model Number :
HRB-60
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Export Plywood Case or Carton
Main Use :
Melt-Blow Metering Pump
Displacement :
60 Cc/Rev
Port Configuration :
1 Inlet, 1 Outlet
Operating Pressure :
Inlet: ≤20 MPa; Outlet: ≤40 MPa
Operating Temperature :
≤250℃
Spinning Fluid Viscosity :
≤4000 Poise
Operating Speed :
5~40 Rpm
Description
Melt-Blow Metering Pump HRB-50/60/70 High Pressure Gear Pump

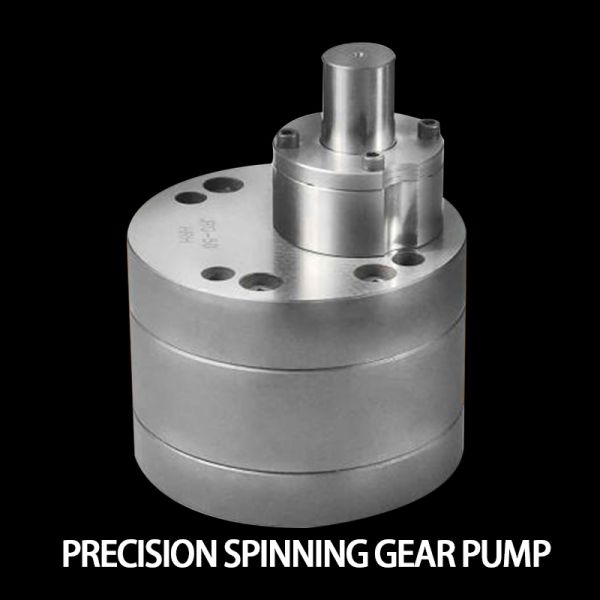

This precision spinning gear pump, also known as a melt-blow metering pump, is engineered for high-precision, stable fluid metering in spinning applications. It excels in high-viscosity, high-pressure-difference melt delivery scenarios and is widely applicable across industries.

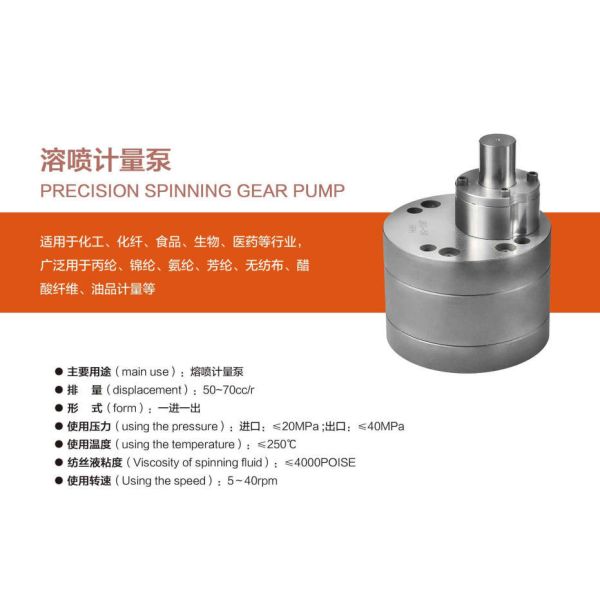

Technical Specifications
ModelHRB-60
ApplicationMelt-blown metering pump (Precision spinning gear pump)
Output per revolution60 cc/rev
Port configuration1 inlet & 1 outlet
Max. inlet pressure≤ 20 MPa
Max. outlet pressure≤ 40 MPa
Max. operating temperature≤ 250 ºC
Max. spinning fluid viscosity≤ 4000 POISE
Recommended operating speed5 ~ 40 rpm
Melt-Blow Metering Pump Hrb-50/60/70 High Pressure Gear Pump for Chemical & Textile Industry Melt-Blow Metering Pump Hrb-50/60/70 High Pressure Gear Pump for Chemical & Textile Industry
Main Applications
Industries: Chemical, chemical fiber, food, biological, pharmaceutical, etc.
  • Spinning of polypropylene fiber, nylon, spandex, aramid, non-woven fabric, acetate fiber, and oil metering
  • Core Use: Spinning of polyester and nylon filament
Product Advantages
  • High-Efficiency Multi-Position Feeding: The 1-inlet & 4-outlet design allows one pump to supply multiple spinning positions simultaneously, simplifying equipment layout and reducing per-position costs
  • Stable Metering Accuracy: The gear structure ensures precise and controllable melt flow, improving the consistency of finished yarn quality
  • Harsh Condition Adaptability: It can handle high-temperature, high-pressure, and high-viscosity media, meeting the conveying requirements of chemical fiber spinning melts
  • Complete Model Range: Covers a full displacement range of 1.2~6.5 cc/r, meeting the flow requirements of different spinning equipment
Structural Interface Features
The pump body is a cylindrical structure with a uniform outer diameter of φ102mm. The flange mounting holes are 2-Ø13 / 2-Ø12.5, fitting well into standard installation spaces of spinning equipment.
The 1-inlet & 4-outlet flow path design enables uniform feeding for 4 spinning positions at the same time, significantly improving spinning efficiency and yarn uniformity.
All models use M12 mounting screws, ensuring high adaptability for easy equipment integration and maintenance.
Melt-Blow Metering Pump Hrb-50/60/70 High Pressure Gear Pump for Chemical & Textile Industry Melt-Blow Metering Pump Hrb-50/60/70 High Pressure Gear Pump for Chemical & Textile Industry
Melt-Blow Metering Pump Hrb-50/60/70 High Pressure Gear Pump for Chemical & Textile Industry
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Company Profile
Melt-Blow Metering Pump Hrb-50/60/70 High Pressure Gear Pump for Chemical & Textile Industry
Melt-Blow Metering Pump Hrb-50/60/70 High Pressure Gear Pump for Chemical & Textile Industry Melt-Blow Metering Pump Hrb-50/60/70 High Pressure Gear Pump for Chemical & Textile Industry
Packaging & Shipping
  • Standard export wooden case packaging to protect the pump from damage during transportation
  • Support multiple shipping methods (sea, air, express) to meet different delivery time requirements
  • Complete product documents (operation manual, test report, quality certificate) are provided with each shipment
Frequently Asked Questions
Q1: Are you a factory?
A1: We are based in Shanghai, China, start from 2011. Main production and sales of various industrial flow meters and other products. Welcome to visit!
Q2: What can you buy from us?
A2: We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.
Q3: What is your terms of packing?
A3: Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
Q4: How about your delivery time?
A4: Generally, standard type: 6-7 working days after confirm the order. Non-standard type: 8-10 working days after confirm the order.
Q5: What's your MOQ?
A5: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q6: How do you ensure good product quality?
A6: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
Q7: How long your quotation valid?
A7: Our quotation valid for 1 month.
Q8: Can you accept OEM brand?
A8: Yes, we can accept the OEM brand without extra charge.
Q9: How long is your product warranty?
A9: 7 days replacement and 12 months repair free of charge for quality problem.
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings.
