6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line
6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line
6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line
6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line
6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line
6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line
6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line
6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line
Specifications
Brand Name :
ZRQH
Model Number :
HRA-1.8*6-2
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Export Plywood Case or Carton
Main Use :
Polyester, Nylon Filament Spinning Metering
Structure :
1 Inlet, 6 Outlets
Displacement Per Port Per Revolution :
1.8 Cc/Rev
Total Displacement (6 Ports) :
10.8 Cc/Rev
Working Pressure :
Inlet: ≤20MPa; Outlet: ≤40MPa
Working Temperature :
≤320℃
Viscosity of Spinning Fluid :
≤4000 Poise
Working Speed :
5~40 Rpm
Inlet Port Size :
φ15 mm
Outlet Port Size :
6 × φ6.4 mm
Mounting Hole Specification :
3 × φ12.5 mm
Drive Shaft Diameter :
φ20 mm
Description
6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line

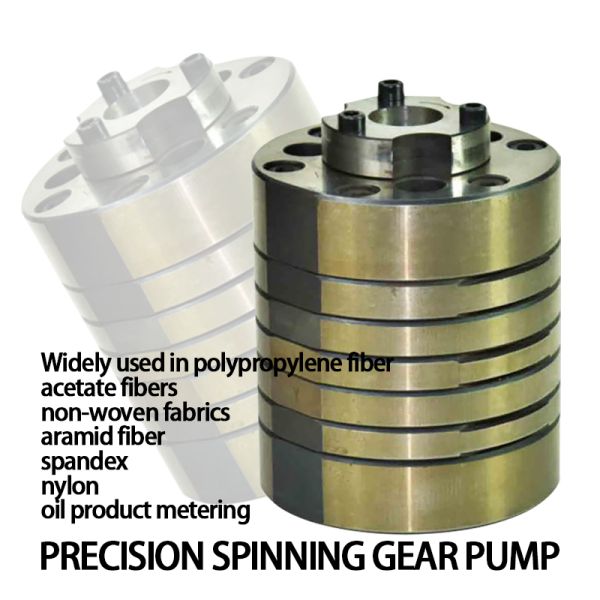

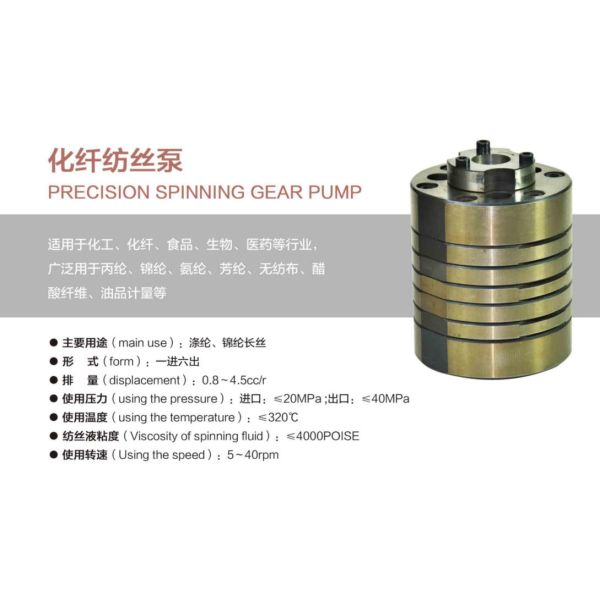

This 1-inlet 6-outlet precision spinning gear pump is high-precision metering and conveying equipment specifically designed for chemical fiber spinning processes. Featuring precision gear meshing structure, it enables uniform flow distribution from a single inlet to 6 outlets, providing stable and accurate melt/oil agent conveying for polyester, nylon and other filament spinning processes. As a core component ensuring uniformity and continuity of spinning finished products, it is widely suitable for high-viscosity fluid metering scenarios across multiple industries.
ItemSpecification
ModelHRA-1.8*6-2
Main UsePolyester, Nylon Filament Spinning
Structure1 Inlet, 6 Outlets
Displacement per Port per Revolution1.8 cc/rev
Total Displacement10.8 cc/rev
Working Speed5-40 rpm
Working PressureInlet ≤20 MPa; Outlet ≤40 MPa
Working Temperature≤320 ºC
Suitable Viscosity≤4000 POISE
Mounting ScrewM12
Dimension A (Pump Body Length)107.6 mm
Dimension B (Total Length with Shaft)115.6 mm
Overall Dimensions (L×W×H)115.6 × 60 × 52 mm
Inlet Port SizeΦ15 mm
Outlet Port Size6 × Φ6.4 mm
Drive Shaft DiameterΦ20 mm
Mounting Hole Specification3 × Φ12.5 mm
6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line 6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line
Main Applications
  • Core Industries: Chemical, chemical fiber, food, biology, medicine, etc.
  • Core Processes: Spinning forming of polypropylene, nylon, spandex, aramid, non-woven fabric, acetate fiber, etc.
  • Extended Applications: Precision oil metering, high-viscosity fluid booster conveying, special material extrusion supporting, etc.
Product Advantages
  • High metering accuracy: Uniform flow at 6 outlets with minimal error, eliminating uneven spinning thickness and broken filaments
  • High pressure and temperature resistance: Maximum outlet pressure of 40MPa, temperature resistance up to 320ºC, suitable for high-temperature and high-pressure spinning working conditions
  • Strong high-viscosity adaptability: Can transport high-viscosity spinning melt up to 4000POISE, meeting the stringent requirements of the chemical fiber industry
  • Complete specifications: Full displacement coverage of 0.8~4.5cc/rev, can accurately match spinning lines with different production capacities and processes
  • Standardized installation: Unified mounting flange and screw specifications for all models, facilitating line transformation and maintenance

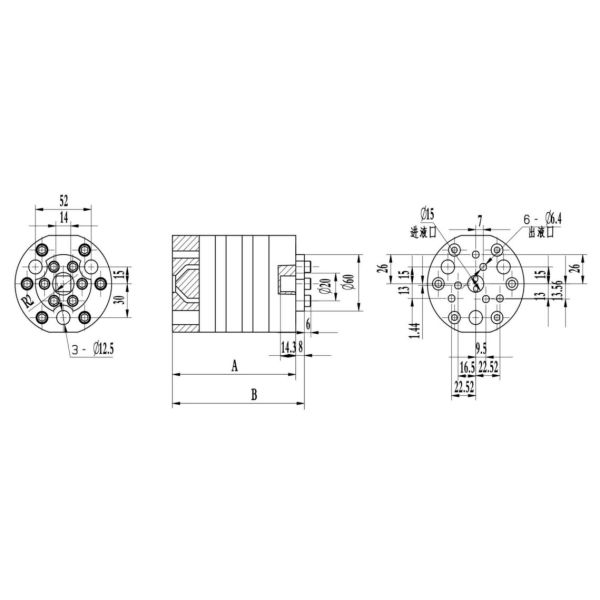

Structural Interface Features
  • Mounting Flange: Φ60mm standard flange, 3 Φ12.5mm mounting holes
  • Shaft End Specification: Φ20mm output shaft, shaft extension length 14.38mm
  • Interface Specification: 1 Φ15mm inlet, 6 Φ6.4mm outlets
Model Specifications Comparison
Model Output per Port per Revolution (cc/rev) Dimension A (mm, Pump Body Length) Dimension B (mm, Total Length with Shaft) Mounting Screw
HRA-0.8*_6-_ 20.899.9119.9M12
HRA-1.2*_6-_ 21.2101.2109.2M12
HRA-1.4*_6-_ 21.4103.4111.4M12
HRA-1.6*_6-_ 21.6105.5113.5M12
HRA-1.8*_6-_ 21.8107.6115.6M12
HRA-2*_6-_ 22.0109.7117.7M12
HRA-2.4*_6-_ 22.4114.0122.0M12
HRA-3*_6-_ 23.0127.6135.6M12
HRA-3.6*_6-_ 23.6134.0142.0M12
HRA-4*_6-_ 24.0133.5130.5M12
HRA-4.5*_6-_ 24.5126.8134.8M12
6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line 6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line
6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Company Profile
6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line
6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line 6-Outlet Gear Dosing Pump for Polypropylene/Nylon/Spandex Fiber Spinning Line
Packaging & Shipping
  • Standard export wooden case packaging to protect the pump from damage during transportation
  • Support multiple shipping methods (sea, air, express) to meet different delivery time requirements
  • Complete product documents (operation manual, test report, quality certificate) are provided with each shipment
Frequently Asked Questions
Q1: What is your terms of packing?
A1: Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
Q2: How about your delivery time?
A2: Generally, standard type: 6-7 working days after confirm the order. Non-standard type: 8-10 working days after confirm the order.
Q3: What's your MOQ?
A3: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q4: How do you ensure good product quality?
A4: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
Q5: How long your quotation valid?
A5: Our quotation valid for 1 month.
Q6: Can you accept OEM brand?
A6: Yes, we can accept the OEM brand without extra charge.
Q7: How long is your product warranty?
A7: 7 days replacement and 12 months repair free of charge for quality problem.
Q8: Can you produce according to the samples?
A8: Yes, we can produce by your samples or technical drawings.
