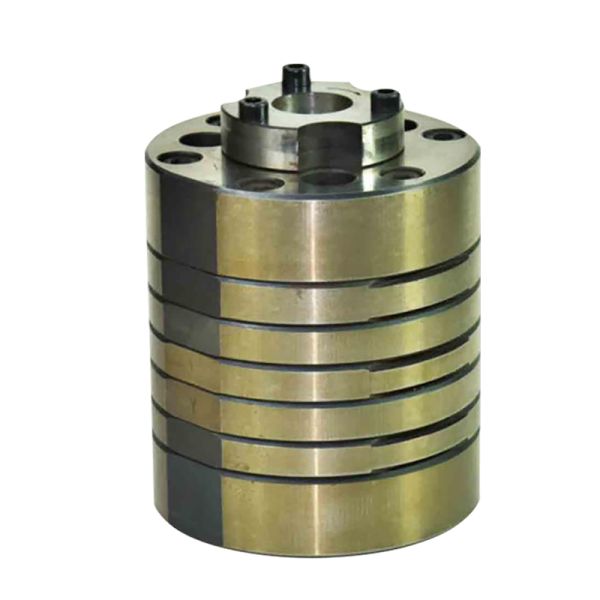

1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
Specifications
Brand Name :
ZRQH
Model Number :
HRA-2*6-2
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month
Delivery Time :
5-8 weeks
Packaging Details :
Standard Export Plywood Case or Carton
Main Use :
Polyester, Nylon Filament Spinning Metering
Structure :
1 Inlet, 6 Outlets
Displacement Per Port Per Revolution :
2.0 Cc/Rev
Total Displacement (6 Ports) :
12.0 Cc/Rev
Working Pressure :
Inlet: ≤20MPa; Outlet: ≤40MPa
Working Temperature :
≤320℃
Viscosity of Spinning Fluid :
≤4000 Poise
Working Speed :
5~40 Rpm
Inlet Port Size :
φ15 mm
Outlet Port Size :
6 × φ6.4 mm
Mounting Hole Specification :
3 × φ12.5 mm
Drive Shaft Diameter :
φ20 mm
Description
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
This 1-inlet 6-outlet precision spinning gear pump is high-precision metering and conveying equipment specifically designed for chemical fiber spinning processes. With its precision gear meshing structure, it achieves uniform flow distribution from a single inlet to six outlets, providing stable and accurate melt/oil agent conveying for polyester, nylon, and other filament spinning processes. As a core component ensuring uniformity and continuity of spinning finished products, it is widely suitable for high-viscosity fluid metering scenarios across multiple industries.
Technical Specifications
Model HRA-2*6-2
Main Use Polyester, Nylon Filament Spinning
Structure 1 Inlet, 6 Outlets
Displacement per Port per Revolution 2.0 cc/rev
Total Displacement 12.0 cc/rev
Working Speed 5-40 rpm
Working Pressure Inlet ≤20 MPa; Outlet ≤40 MPa
Working Temperature ≤320 ºC
Suitable Viscosity ≤4000 POISE
Mounting Screw M12
Dimension A (Pump Body Length) 109.7 mm
Dimension B (Total Length with Shaft) 117.7 mm
Overall Dimensions (L×W×H) 117.7 × 60 × 52 mm
Inlet Port Size Φ15 mm
Outlet Port Size 6 × Φ6.4 mm
Drive Shaft Diameter Φ20 mm
Mounting Hole Specification 3 × Φ12.5 mm
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
Main Applications
Core Industries
Chemical, chemical fiber, food, biology, medicine, and related industries
Core Processes
Spinning forming of polypropylene, nylon, spandex, aramid, non-woven fabric, acetate fiber, and similar materials
Extended Applications
Precision oil metering, high-viscosity fluid booster conveying, special material extrusion supporting, and related precision fluid handling applications
Product Advantages
  • High metering accuracy: Uniform flow at 6 outlets with minimal error, eliminating uneven spinning thickness and broken filaments
  • High pressure and temperature resistance: Maximum outlet pressure of 40MPa, temperature resistance up to 320ºC, suitable for high-temperature and high-pressure spinning working conditions
  • Strong high-viscosity adaptability: Can transport high-viscosity spinning melt up to 4000POISE, meeting stringent requirements of the chemical fiber industry
  • Complete specifications: Full displacement coverage of 0.8~4.5cc/rev, accurately matching spinning lines with different production capacities and processes
  • Standardized installation: Unified mounting flange and screw specifications for all models, facilitating line transformation and maintenance
Structural Interface Features
Mounting Flange
Φ60mm standard flange, 3 Φ12.5mm mounting holes
Shaft End Specification
Φ20mm output shaft, shaft extension length 14.38mm
Interface Specification
1 Φ15mm inlet, 6 Φ6.4mm outlets
Model Specifications
Model Output per Port per Revolution (cc/rev) Dimension A (mm, Pump Body Length) Dimension B (mm, Total Length with Shaft) Mounting Screw
HRA-0.8*_6-_ 2 0.8 99.9 119.9 M12
HRA-1.2*_6-_ 2 1.2 101.2 109.2 M12
HRA-1.4*_6-_ 2 1.4 103.4 111.4 M12
HRA-1.6*_6-_ 2 1.6 105.5 113.5 M12
HRA-1.8*_6-_ 2 1.8 107.6 115.6 M12
HRA-2*_6-_ 2 2.0 109.7 117.7 M12
HRA-2.4*_6-_ 2 2.4 114.0 122.0 M12
HRA-3*_6-_ 2 3.0 127.6 135.6 M12
HRA-3.6*_6-_ 2 3.6 134.0 142.0 M12
HRA-4*_6-_ 2 4.0 133.5 130.5 M12
HRA-4.5*_6-_ 2 4.5 126.8 134.8 M12
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
After Sales Service
Enjoy peace of mind with our comprehensive after-sales service. We offer a 7-day replacement policy and a 12-month repair service absolutely free of charge for any quality-related issues, ensuring your complete satisfaction and confidence in our products.
Company Profile
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
1 Inlet 6 Outlets Spinning Gear Pump for Uniform Filament Oiling & Metering
Packaging & Shipping
  • Standard export wooden case packaging to protect the pump from damage during transportation
  • Support multiple shipping methods (sea, air, express) to meet different delivery time requirements
  • Complete product documents (operation manual, test report, quality certificate) are provided with each shipment
Frequently Asked Questions
Q1: Are you a factory?
A1: We are based in Shanghai, China, starting from 2011. Main production and sales of various industrial flow meters and other products. Welcome to visit!
Q2: What can you buy from us?
A2: We can provide one-stop flow meter services, providing sales of instruments such as flow meters, liquid level gauges, vacuum gauges, pumps, sensors, industrial thermometers, etc.
Q3: What is your terms of packing?
A3: Generally, JSN brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.
Q4: How about your delivery time?
A4: Generally, standard type: 6-7 working days after confirm the order. Non-standard type: 8-10 working days after confirm the order.
Q5: What's your MOQ?
A5: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q6: How do you ensure good product quality?
A6: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
Q7: How long your quotation valid?
A7: Our quotation valid for 1 month.
Q8: Can you accept OEM brand?
A8: Yes, we can accept the OEM brand without extra charge.
Q9: How long is your product warranty?
A9: 7 days replacement and 12 months repair free of charge for quality problem.
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings.
