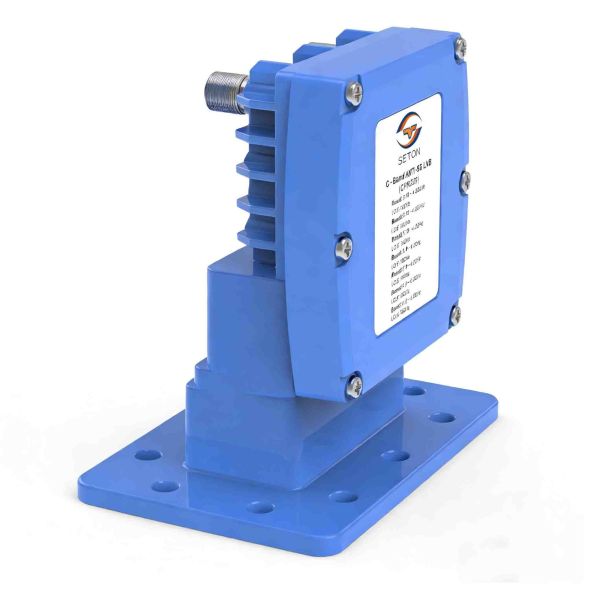

C-Band LNB for VSAT System - ST-C11F WR229G High Gain Anti-5G Filter, 3.7-4.2GHz Low Noise
C-Band LNB for VSAT System - ST-C11F WR229G High Gain Anti-5G Filter, 3.7-4.2GHz Low Noise
Specifications
Brand Name :
SETON
Model Number :
CPR229
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T,Western Union
Supply Ability :
15 million pieces
Delivery Time :
30-35 days
Packaging Details :
CARTON
Input Frequency :
3.7~4.2GHz(Customizable design)
Output Frequency :
950MHz ~ 1450MHz
Noise figure :
30° K (Typ.)/50° K (Max.)
Conversion Gain :
58dB~68dB/ 63dB (Typ.)
LNB Input 5G Power level :
-30dBm (Max.)
LNB Input Rejection :
50dBc min.(@100MHz)
5G IMT :
3.3~3.6GHz
Description
VSAT LNB C-Band ST-C11F Anti-5G
Engineered for spectrum co-existence, the CPR229 Anti-5G C-Band LNB provides high gain and low noise figure while featuring robust rejection of 5G IMT interference, ensuring uncompromised VSAT operation.

Key Features
  • Frequency range: 3.7~4.2GHz (customizable design available)
  • 5G IMT rejection: 3.3~3.6GHz with 100MHz guard band
  • LNB input 5G power level: -30~-20dBm @ 3.3~3.6GHz
  • Minimal intermodulation and no saturation when 3.3~3.6GHz interference input
Technical Specifications

No.

ITEM

SPECIFICATION

UNIT

C-1

I/P Frequency Range

3.7 ~ 4.2/3.8 ~ 4.2/3.9 ~ 4.2/4.0 ~ 4.2 (BW500MHz optional)

GHz

C-2

O/P Frequency Range

950 ~ 1450

MHz

C-3

Noise Figure

30[Max.]/ 17[Typ.]

°K

C-4

LO Frequency

5.15

GHz

C-5

LO Stability

±50/±25/±10

kHz

C-6

Input power Level ability

-25@3300 ~ 3600MHz

dBm

C-7

LNB out of band

Rejection@≤3600MHz

60[Min.]

dBc

C-8

LO Phase Noise

-85[Max.]/ @10kHz

dBc

C-9

O/P1dB Compression Point(P1dB)

+10[Typ.]

dB

C-10

Gain

60 ~ 65

dB

C-11

Gain Flatness

±2.5

dB

C-12

Gain Variation

±0.5 / 36MHz

dB/MHz

C-13

DC-Power

200[Max.] / 10 ~ 24V

mA

C-14

Output impedance

75

Ω/F-Type

C-15

VSWR

2.0: 1

/

C-16

Operating temperature range

-30 ~ +60

°C

C-17

Storage temperature range

-40 ~ +70

°C

C-18

Relative humidity

5% ~ 95%

/

C-19

Barometric pressure

55 ~ 106

kPa

C-20

Waterproof Rate

IP67

/
Available Frequency Bands
Frequency Band(GHz) 3.7~4.2 3.72~4.2 3.8~4.2 3.9~4.2 4.0~4.2
L.O. Frequency(GHz) 5.15 5.15 5.15 5.15 5.15
IF Frequency(MHz) 950~1450 950~1430 950~1350 950~1250 950~1150
Frequently Asked Questions
What is an ANTI-5G CPR229 LNB?
The transmit way by Matrix waveguide, LNB itself has anti-5G IMT @3.5G Band interference capability.
What is a Strong Rejection-5G CPR229 LNB?
CPR229 LNB directly input 5G IMT@3.5GHz frequency from transmitting waveguide, Guard band=100MHz, 5G Power Level: -30dBm, CPR229 LNB output Gain(in-band) no intermodulation, Output Gain no saturation. WR229 LNB itself has strong anti-5G IMT@3.5GHz frequency capability, because with un-linking the mechanical filter outside, CPR229 LNB built-in high performance out-band rejection passive filter.
What is High Gain Low Noise?
CPR229 LNB High Gain: 63dB (Typ.), which can receive week intensity signal; Low Noise:50°K(Max.)/ 0.8dB(Max.), which can guarantee system better C/N value.
