75-110GHz WR-10 WAVEGUIDE ATTENUATOR
75-110GHz WR-10 WAVEGUIDE ATTENUATOR
Specifications
Model Number :
VN-WGAT-6090-WR12-10dB-0.2
Supply Ability :
500
Attenuation(dB) :
10
MOQ :
5 pcs
Part Number :
VN-WGAT-75110-WR10-10dB-0.2
Payment Terms :
L/C, D/A, D/P, T/T
Attenuation Accuracy(dB) :
±1.3
Price :
negotiable
Attenuation Flatness(dB) :
±0.9
VSWR :
1.15:1
Certification :
ISO 9000 ROHS
Place of Origin :
China
Brand Name :
Vinncom
Operating Frequency ( GHz ) :
75-110
Description

75-110GHz WR-10 WAVEGUIDE ATTENUATOR

  • Helps prevent receiver saturation and overload
  • Dissipates excess energy safely as heat
  • Improves intermodulation distortion (IMD) performance by reducing input power to nonlinear devices

  • A WAVEGUIDE ATTENUATOR with absorptive (coaxial‑to‑waveguide) design uses lossy ferrite or dielectric materials that absorb electromagnetic energy.
  • A WAVEGUIDE ATTENUATOR maintains a good impedance match (low VSWR) across its operating frequency band, ensuring minimal reflection.
  • A WAVEGUIDE ATTENUATOR attenuates signals by converting part of the electromagnetic energy into heat, which is dissipated through the waveguide body and heat sinks.
  • A WAVEGUIDE ATTENUATOR can be fixed (providing a constant attenuation value, e.g., 3 dB, 6 dB, 10 dB, 20 dB) or variable (adjustable over a range, e.g., 0–30 dB or 0–60 dB).
  • Isolation improvement –
  • A WAVEGUIDE ATTENUATOR increases isolation between two active components (e.g., amplifiers in series) to prevent oscillations.
  • Harmonic and spurious suppression –
  • A WAVEGUIDE ATTENUATOR reduces higher‑order harmonic levels that may interfere with other system components.
  • Radar systems –
  • A WAVEGUIDE ATTENUATOR adjusts transmitter output power for built‑in‑test (BIT) or calibration routines.

Part Number VN-WGAT-75110-WR10-10dB-0.2
Operating Frequency ( GHz ) 75-110
Attenuation(dB) 10
Attenuation Accuracy(dB) ±1.3
Attenuation Flatness(dB) ±0.9
VSWR 1.15:1
Interface WR10 (BJ900)

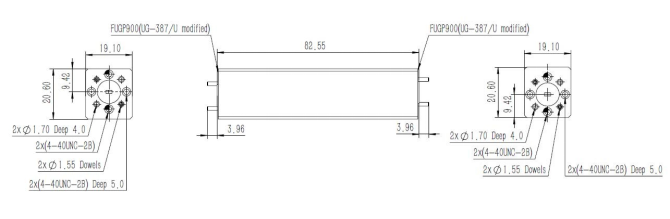

Dimension(mm) As below
Handling Power 0.2 (Watt, max)
Operating Temperature ( ℃ ) -40 ~ + 80
ROHS Compliance Yes
