60-90GHz WR-12 WAVEGUIDE ATTENUATOR
60-90GHz WR-12 WAVEGUIDE ATTENUATOR
Specifications
Model Number :
VN-WGAT-6090-WR12-10dB-0.2
Price :
negotiable
Attenuation Flatness(dB) :
±0.9
Supply Ability :
500
Attenuation(dB) :
10
MOQ :
5 pcs
Part Number :
VN-WGAT-6090-WR12-10dB-0.2
Payment Terms :
L/C, D/A, D/P, T/T
Attenuation Accuracy(dB) :
±1.3
VSWR :
1.15:1
Certification :
ISO 9000 ROHS
Place of Origin :
China
Brand Name :
Vinncom
Operating Frequency ( GHz ) :
60-90
Description

60-90GHz WR-12 WAVEGUIDE ATTENUATOR

  • Rugged and precision‑machined waveguide construction
  • Broadband operation (multi‑octave available)
  • Frequency range from 1 GHz to 110 GHz+

  • Radar systems –
    A WAVEGUIDE ATTENUATOR adjusts transmitter output power for built‑in‑test (BIT) or calibration routines.

  • Satellite communication (Satcom) ground stations –
    A WAVEGUIDE ATTENUATOR compensates for gain variations in the transmission chain or equalizes power between two redundant paths.

  • Electronic warfare (EW) systems –
    A WAVEGUIDE ATTENUATOR provides dynamic range management for receivers that must handle signals from very weak to very strong.

  • A WAVEGUIDE ATTENUATOR with absorptive (coaxial‑to‑waveguide) design uses lossy ferrite or dielectric materials that absorb electromagnetic energy.
    A WAVEGUIDE ATTENUATOR maintains a good impedance match (low VSWR) across its operating frequency band, ensuring minimal reflection.
    A WAVEGUIDE ATTENUATOR attenuates signals by converting part of the electromagnetic energy into heat, which is dissipated through the waveguide body and heat sinks.

Part Number VN-WGAT-6090-WR12-10dB-0.2
Operating Frequency ( GHz ) 60-90
Attenuation(dB) 10
Attenuation Accuracy(dB) ±1.3
Attenuation Flatness(dB) ±0.9
VSWR 1.15:1
Interface WR12 (BJ740)

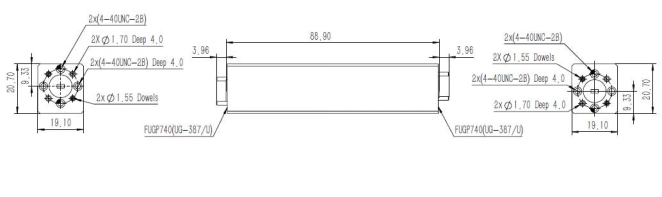

Dimension(mm) As below
Handling Power 0.2CW (Watt, max)
Operating Temperature ( ℃ ) -40 ~ + 80
ROHS Compliance Yes

60-90GHz WR-12 WAVEGUIDE ATTENUATOR

60-90GHz WR-12 WAVEGUIDE ATTENUATOR
