33-50GHz WR-22 WAVEGUIDE ATTENUATOR
33-50GHz WR-22 WAVEGUIDE ATTENUATOR
Specifications
VSWR :
1.15:1
Model Number :
VN-WGAT-3350-WR22-30dB-0.5
MOQ :
5 pcs
Part Number :
VN-WGAT-3350-WR22-30dB-0.5
Payment Terms :
L/C, D/A, D/P, T/T
Attenuation Accuracy(dB) :
±1.3
Price :
negotiable
Attenuation Flatness(dB) :
±0.9
Supply Ability :
500
Attenuation(dB) :
30
Certification :
ISO 9000 ROHS
Brand Name :
Vinncom
Operating Frequency ( GHz ) :
33-50
Place of Origin :
China
Description

33-50GHz WR-22 WAVEGUIDE ATTENUATOR

  • Bi‑directional operation (most designs)
  • Fixed or variable versions for different needs
  • Low VSWR (excellent impedance match) at all attenuation settings

Application Scenarios / Working Scenarios of a WAVEGUIDE ATTENUATOR

  • Amplifier gain measurement and characterization –
    A WAVEGUIDE ATTENUATOR is placed before a power meter or spectrum analyzer to prevent overload when testing high‑gain amplifiers.

  • Microwave heating and industrial systems –
    A WAVEGUIDE ATTENUATOR reduces reflected power or balances multiple magnetron outputs.

  • In every working scenario, a WAVEGUIDE ATTENUATOR acts as a controlled loss element that precisely reduces signal amplitude while preserving signal integrity and impedance match.

  • Radio astronomy and remote sensing –
    A WAVEGUIDE ATTENUATOR sets the signal level to the optimum detection range of ultra‑sensitive receivers.

  • Research and development laboratories –
    A WAVEGUIDE ATTENUATOR is a standard bench component for adjusting signal levels in experiments and prototypes.

  • For variable attenuators – adjust the dial/drum –

    Rotate the calibrated dial of a WAVEGUIDE ATTENUATOR to set the desired attenuation value; read the setting from the engraved scale.

  • Power rating verification –

    Before operating a WAVEGUIDE ATTENUATOR, verify its average and peak power handling capabilities—high‑power versions require forced air or water cooling.

Part Number VN-WGAT-3350-WR22-30dB-0.5
Operating Frequency ( GHz ) 33-50
Attenuation(dB) 30
Attenuation Accuracy(dB) ±1.3
Attenuation Flatness(dB) ±0.9
VSWR 1.15:1
Interface WR22 (BJ400)

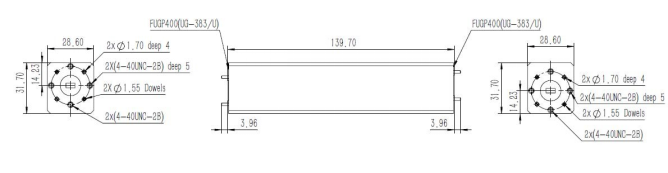

Dimension(mm) As below
Handling Power 0.5CW (Watt, max)
Operating Temperature ( ℃ ) -40 ~ + 80
ROHS Compliance Yes

33-50GHz WR-22 WAVEGUIDE ATTENUATOR33-50GHz WR-22 WAVEGUIDE ATTENUATOR
