50-75GHz WR-15 WAVEGUIDE ATTENUATOR
50-75GHz WR-15 WAVEGUIDE ATTENUATOR
Specifications
VSWR :
1.15:1
Model Number :
VN-WGAT-5075-WR15-10dB-0.3
MOQ :
5 pcs
Part Number :
VN-WGAT-5075-WR15-10dB-0.3
Payment Terms :
L/C, D/A, D/P, T/T
Attenuation Accuracy(dB) :
±1.3
Price :
negotiable
Attenuation Flatness(dB) :
±0.9
Supply Ability :
500
Attenuation(dB) :
10
Certification :
ISO 9000 ROHS
Brand Name :
Vinncom
Operating Frequency ( GHz ) :
50-75
Place of Origin :
China
Description

50-75GHz WR-15 WAVEGUIDE ATTENUATOR

  • Precise and repeatable attenuation values
  • Flat attenuation response over frequency
  • Passive device – no external power required

  • A WAVEGUIDE ATTENUATOR achieves this reduction by introducing controlled loss into the signal path, without causing significant reflection.

  • A WAVEGUIDE ATTENUATOR can be designed using three primary mechanisms: resistive film/insertion, absorption by lossy dielectric materials, or mechanical vane/rotary structures.

  • A WAVEGUIDE ATTENUATOR based on the resistive vane type uses a thin resistive card placed along the E‑plane of the waveguide—the card intersects the electric field lines and dissipates microwave energy as heat.

  • A WAVEGUIDE ATTENUATOR of the rotary vane type consists of three sections: an input fixed resistive vane, a rotatable resistive vane, and an output fixed resistive vane—rotating the middle vane changes the attenuation level continuously.

  • Match flange types –

    A WAVEGUIDE ATTENUATOR requires the same flange type (UG, CPR, cover, or choke) as the adjacent waveguide components.

  • For variable attenuators – adjust the dial/drum –

    Rotate the calibrated dial of a WAVEGUIDE ATTENUATOR to set the desired attenuation value; read the setting from the engraved scale.

Part Number VN-WGAT-5075-WR15-10dB-0.3
Operating Frequency ( GHz ) 50-75
Attenuation(dB) 10
Attenuation Accuracy(dB) ±1.3
Attenuation Flatness(dB) ±0.9
VSWR 1.15:1
Interface WR15 (BJ620)

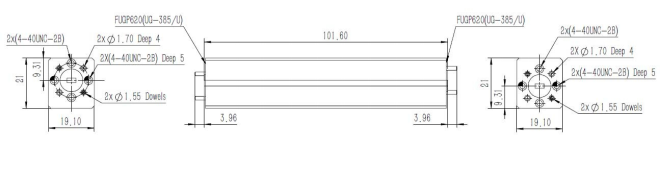

Dimension(mm) As below
Handling Power 0.3CW (Watt, max)
Operating Temperature ( ℃ ) -40 ~ + 80
ROHS Compliance Yes

50-75GHz WR-15 WAVEGUIDE ATTENUATOR

50-75GHz WR-15 WAVEGUIDE ATTENUATOR
