IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
Model Number :
TH-800-F
MOQ :
1
Price :
$6,850
Temperature range :
-70°C~150°C
Humidity range :
20%~98% R.H.
Internal dimension :
W1000*H1000*D800mm
Volume :
800L
Cooling method :
Air cooling
Material :
SUS 304 Stainless Steel
Compressor :
Bizer
Analytic accuracy :
0.1°C; 0.1% R.H.
Distribution uniformity :
±2.0°C; ±3.0% R.H.
Control accuracy :
±0.5°C; ±2.5% R.H.
Temperature rising speed :
0.1~3.0°C/min
Temperature falling speed :
0.3~1.0°C/min
Refrigerant :
DuPont R-404A
Cable port :
100mm
Observation window :
Frost free function
Description
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
Key Features
  • Bilingual Chinese and English LCD touch screen for easy operation and programming
  • Real-time display of system data, graphics, maintenance alerts, and troubleshooting information
  • Sirocco fan motor ensures uniform temperature and humidity distribution without dead corners
  • Independent heating, cooling, dehumidifying, and humidifying systems for reduced testing costs and extended equipment life
  • Automatic water supply system with circulating water and filtration
  • Constructed with Stainless Steel 304 for durability
  • Foam-insulated door for enhanced rigidity and longevity
  • Frost-free observation window
  • High-performance refrigeration system
  • User-friendly TEMI-880 PLC controller interface
  • Standard 100mm cable port (custom specifications available)
  • PID-controlled Stainless Steel Humidifier
  • DuPont R-404A [No Fluorine] Refrigerant / R-23 for temperatures below -40°C
  • USB port for data export
  • Anti-explosive interior lighting
  • Data logging with paperless recorders stored in PLC
Technical Specifications
Product Name Temperature Humidity Climatic Test Chamber
Model TH-408(A~F) | TH-800 (A~F) | TH-1000 (A~F)
Internal Dimension W×H×D (mm) 600×850×800 | 1000×1000×800 | 1000×1000×1000
External Dimension W×H×D (mm) 1200×1950×1350 | 1600×2000×1450 | 1600×2100×1450
Temperature Range Low Temperature (A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) | High Temperature: 150°C
Humidity Range 20%~98% R.H. (10%-98% R.H. / 5%-98% R.H. available as special option with dehumidifier)
Analytic Accuracy / Distribution Uniformity 0.1°C; 0.1% R.H. / ±2.0°C; ±3.0% R.H.
Control Accuracy ±0.5°C; ±2.5% R.H.
Temperature Rising/Falling Speed Rate Rising: 0.1~3.0°C/min | Falling: 0.3~1.0°C/min (Minimum 1.5°C per minute available as special option)
Optional Accessories Inner door with operation hole, Recorder, Water Purifier, Dehumidifier, glass door

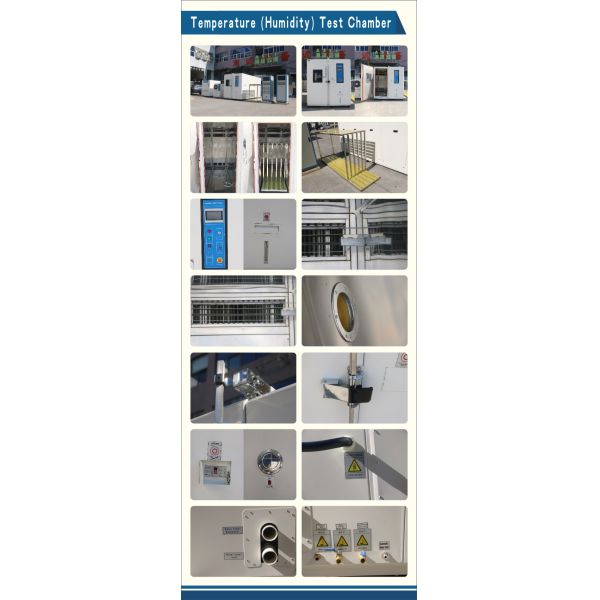

Product Images
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
Related Products
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
High Temperature Oven
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
Thermal Shock Test Chamber
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber

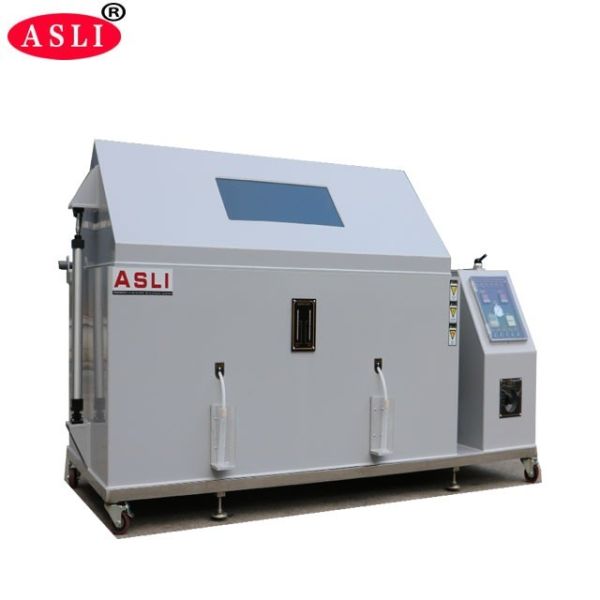

Salt Spray Test Chamber

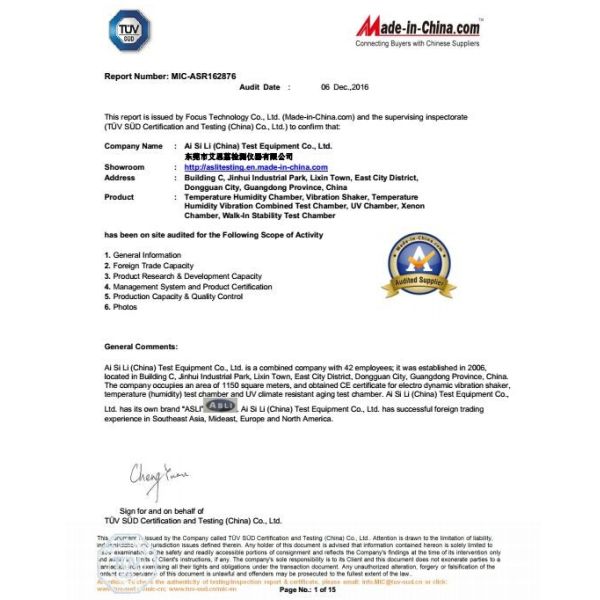

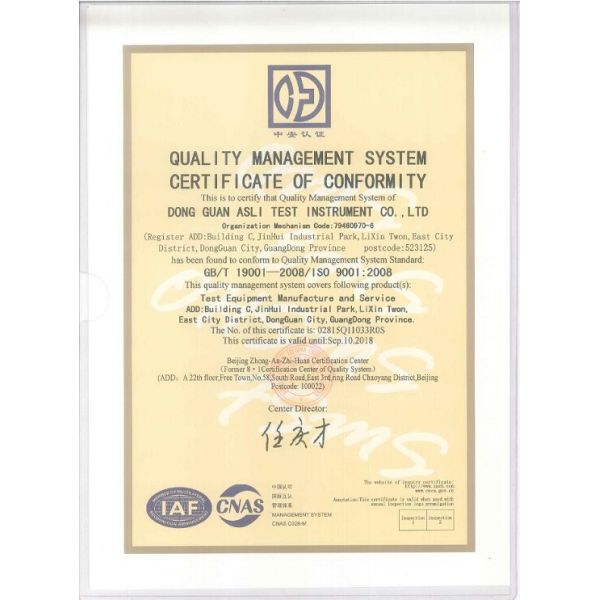

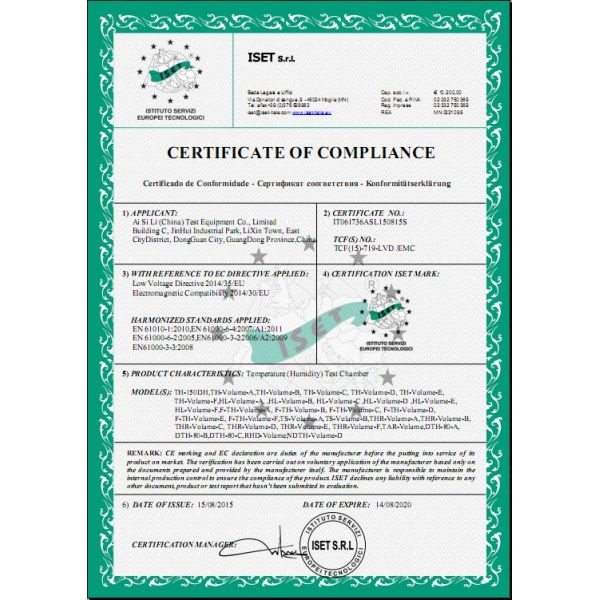

Certifications
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
CE
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
ISO
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
TUV
Packing & Shipping
IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber

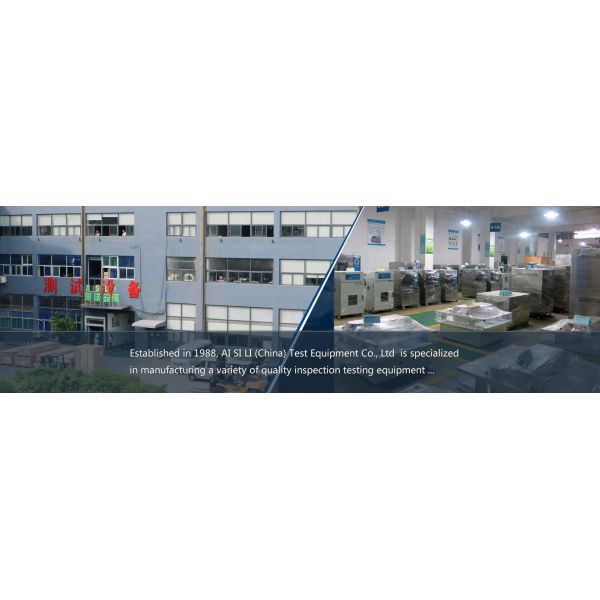

Company Introduction

With over 28 years of manufacturing experience in test instruments, our company has built a reputation for superior quality and outstanding customer service.

IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber IEC 61215 MQT 13, IEC61730 MST53 Solar Panel Environment Climate Chamber
Frequently Asked Questions
Are you a trading company or a factory?
We are a factory with 28 years of experience in test instruments and 4 years of exporting experience.
What is the delivery time after placing an order?
Typically about 20 working days. If we have finished products in stock, we can arrange shipment within 3 working days. Production lead times depend on specific items and quantities.
What about warranty and after-sales services?
12 months warranty. After warranty period, our professional after-sales team provides technical support and handles customer issues promptly.
What services do you offer and how is product quality ensured?
Services include OEM, design, and buyer label services. Each instrument undergoes 100% quality examination and testing, with third-party calibration before shipping.
How is installation and training handled?
For simple products, customers can follow operation manuals. For complex equipment, customers can visit our factory for training, or our engineers can provide overseas support.
What are your main products?
Environmental chambers, temperature/humidity chambers, PCT/Hast chambers, ESS chambers, walk-in stability chambers, vacuum ovens, altitude chambers, vibration test systems, mechanical shock testers, and combined environmental vibration chambers.
