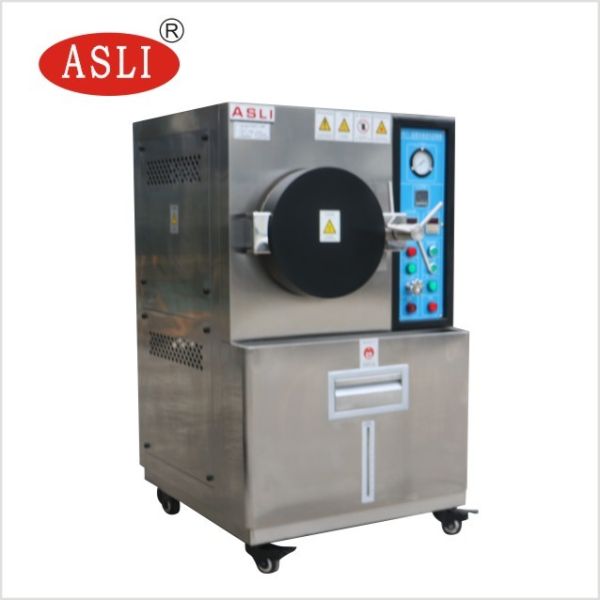

PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
Model Number :
PCT-35
MOQ :
1
Power supply :
AC 220v / AC380
Stem Pressure :
0.0kg/cm~2.0 kg/cm(+101.3Kpa)
Temperature Range :
100ºC~135ºC
Relative Pressure :
Display values on pressure gauge
Absolute Pressure :
100 Kpa + display values
Humidity :
100%RH saturation steam humidity
Steam Pressure :
101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2
Recursive Device :
Steam Natural convection circulation
Safety Device :
Water short storage protect, over pressure protect
Accessories :
Two layers stainless steel plate
Internal Dimension :
300×450, 450×550, 550×650, 650×750
External Dimension :
800×1250×930, 960×1380×1050, 1050×1450×1100, 1150x1600x1500
Equipment Capacity :
17, 43, 87, 155, 250 L
Power :
AC 220V, 1ph 3 Lines, 50/60HZ
Door Gasket :
Integrated silic gel
Description
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
Advanced PCT/HAST aging test chamber designed for highly accelerated stress testing with automated humidity control and comprehensive safety features.
Key Features
  • Automatic humidity filling system
  • Automatic door lock mechanism
  • Accommodates wider sample boards
  • Convenient hermetic power-pin system for bias testing
  • Pot safety device prevents operation when inner box is not closed
  • Safety valve automatically relieves excess pressure
  • Double overheat protection with alarm and automatic power cutoff
  • Aluminum alloy cover protects operators from scalding
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
Technical Specifications
Model PCT - 35 PCT - 45 PCT - 55 PCT - 65
Internal Dimension Φ×D (mm) 300×450 450×550 550×650 650×750
External Dimension Φ×D (mm) 800×1250×930 960×1380×1050 1050×1450×1100 1150×1600×1500
Equipment Capacity (L) 17 43 87 155

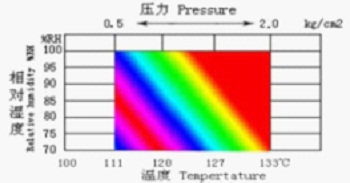

Temperature Range: Saturated Steam: 100ºC~135ºC (Operating: 120ºC, 100Kpa / 133ºC, 200Kpa; 143ºC available as special order)
Pressure: Relative pressure displayed on gauge; Absolute pressure adds 100 Kpa to gauge reading
Humidity: 100% RH saturation steam humidity
Steam Pressure: 101.3Kpa +0.0Kg/cm² ~ 2.0Kg/cm² (3.0Kg/cm² special standard)
Recursive Device: Steam natural convection circulation
Power: AC 220V, 1ph 3 Lines, 50/60HZ
Accessories: Two layers stainless steel plate
Safety Protection: Water short storage protection, over pressure protection with automatic/manual water replenishing and automatic pressure discharge
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber PCT / HAST Highly Accelerated Stress Test Aging Test Chamber PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
Applications
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
HAST testing chamber for altitude testing is widely applied for sealing property testing of multi-layer circuit boards, IC sealing packages, LCD screens, LEDs, semiconductors, magnetic materials, NdFeB, rare earths, and magnet iron. The chamber tests resistance to pressure and air tightness for these products.
Advanced Features
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
  • LED digital timer starts when temperature reaches set value
  • Accurate pressure and temperature chart display
  • Automatic discharge of non-saturated steam for optimal steam quality
  • Integrated silicone gel door gasket for excellent air tightness and long life
  • Mirror-polished inner box, graceful and non-polluting
  • Automatic water adding function with automatic refill during testing
  • Fully automatic operation until test completion
  • LED digital temperature controller for precise setting, control and display
Manufacturing Facility
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber PCT / HAST Highly Accelerated Stress Test Aging Test Chamber PCT / HAST Highly Accelerated Stress Test Aging Test Chamber PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
Related Products
PCT / HAST Highly Accelerated Stress Test Aging Test Chamber
Additional ASLI manufactured products include: Temperature Humidity Test Chamber, Walk-in Aging Chamber, Environmental Test Chambers, Thermal Shock Chamber, Fast Temp. Change Test Chamber, Vibration Shaker, Environmental Vibration Chamber, Mechanical Shock Tester, UV Chamber, Xenon Chamber, Salt Spray Test Chamber, Paper Packing Test Equipment, Video Measuring System, Metallographic Analysis Equipment, Mechanical Test Equipment, and Other Test Equipment.
