Walk in Temperature and Humidity test Chambers
Walk in Temperature and Humidity test Chambers
Walk in Temperature and Humidity test Chambers
Walk in Temperature and Humidity test Chambers
Walk in Temperature and Humidity test Chambers
Walk in Temperature and Humidity test Chambers
Walk in Temperature and Humidity test Chambers
Walk in Temperature and Humidity test Chambers
Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$26,542
Power :
15KW
Voltage :
380 V
Internal Dimension :
W2000*H2000*D2000mm
Volume :
8000L
Temperature Range :
-70~200C
Humidity Range :
20%~98%R.H
Test Hole :
Dia. 100mm
Viewing Window :
W350*D450mm
Material :
SUS 304 Stainless Steel
Protection Class :
IP55
Temperature Rising Velocity :
0.1~3.0°C/min
Temperature Falling Velocity :
0.1~1.0°C/min
Compressor Brand :
French Tecumseh, Germany Bizer
Display Accuracy :
Temperature 0.1%, Humidity 0.1%
Sampling Time :
1time/S
Description

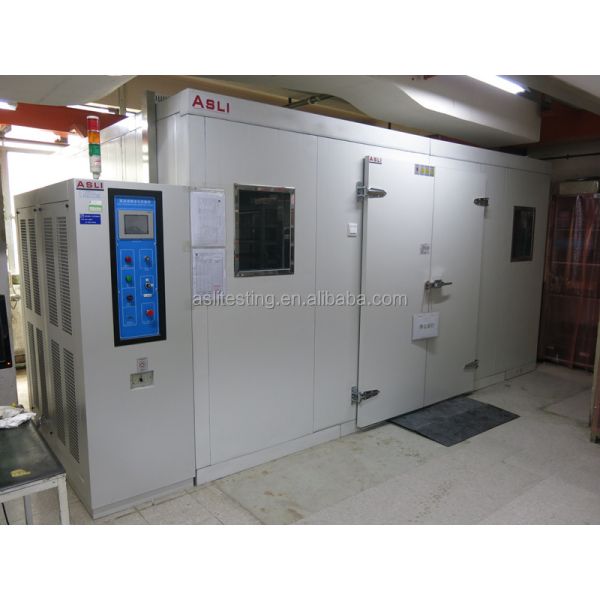

Walk-in Temperature and Humidity Test Chambers
Laboratory Walk-in Temperature Test Chambers consist of Control Panel, electrical panels, moisturizing plate blower, heater, humidifier, and freezer. These chambers provide large testing space for temperature and humidity testing of large-scale parts and semi-finished products. Ideal for testing computer terminals, vehicle parts, and other large or high-quantity products.
Technical Specifications
ModelTHR-volume (low-temperature options: A ~ F)
Inner DimensionsCustomer designated space size and design
Temperature Range Low Temperature (A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C)
High Temperature: 80°C (80°C ~200°C optional)
Humidity Range20%~98% R.H. (10%-98% R.H. / 5%-98% R.H. special optional with dehumidifier)
Temperature Rising/Falling Velocity Temperature rising: approx. 0.1~3.0°C/min
Temperature falling: approx. 0.1~1.0°C/min
(Minimum 1.0°C/min falling velocity optional)
Optional AccessoriesSlope for cart, Recorder, Water Purifier, Dehumidifier
CompressorFrench Tecumseh Brand, Germany Bizer Brand
PowerAC 380 V(±10%), 50/60HZ, 3 ph 5 Lines
Compliance Standards
  • GB11158 Technical conditions for high-temperature testing room
  • GB10589-89 Technical conditions for low-temperature testing room
  • GB/T10586-89 technical conditions for humidity testing room
  • GB/T2423.1-2001 testing methods for low-temperature
  • GB/T2423.2-2001 testing methods for high-temperature
  • GB/T2423.3-93 technical conditions for humidity testing room
  • GB/T2423.4-93 testing method for alternating hot and humid
  • IEC60068-2-1.1990 testing methods for low-temperature
  • IEC60068-2-2.1974 testing methods for high-temperature
  • GJB150.3 High-temperature test
  • GJB150.4 Low-temperature test
  • GJB150.9 muggy test
  • GB/T2423.22 temperature test

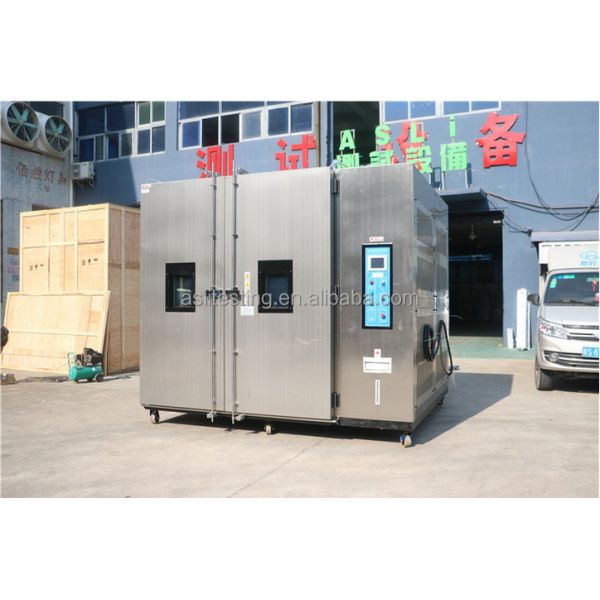

Product Gallery
Walk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test Chambers

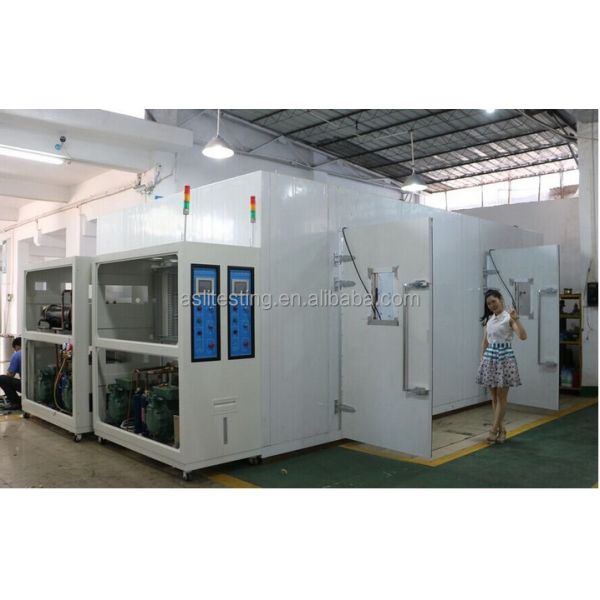

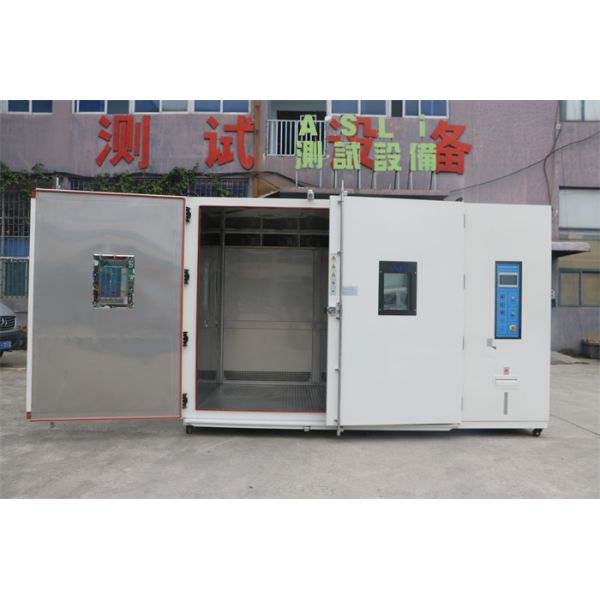

Chamber Details
Walk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test Chambers
Quality Certifications
Passed the ISO9001:2008 quality system authentication and ROHS authentication.

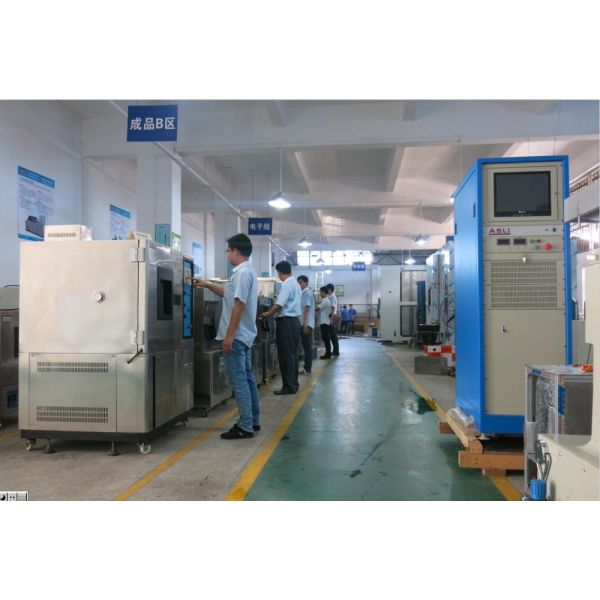

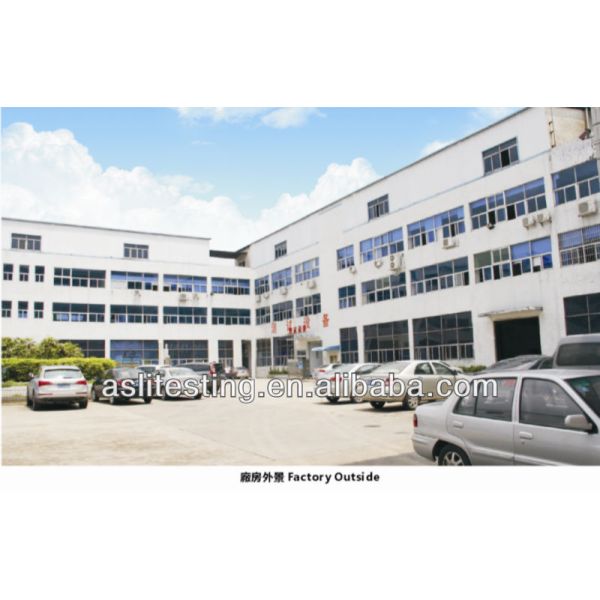

Company Overview
Walk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test Chambers

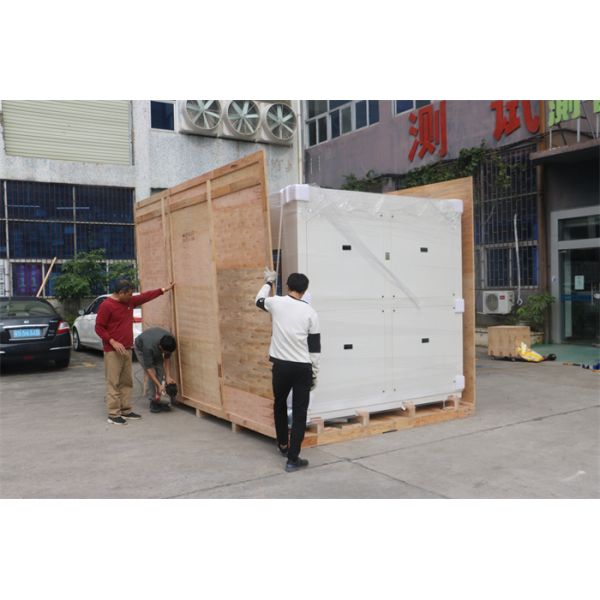

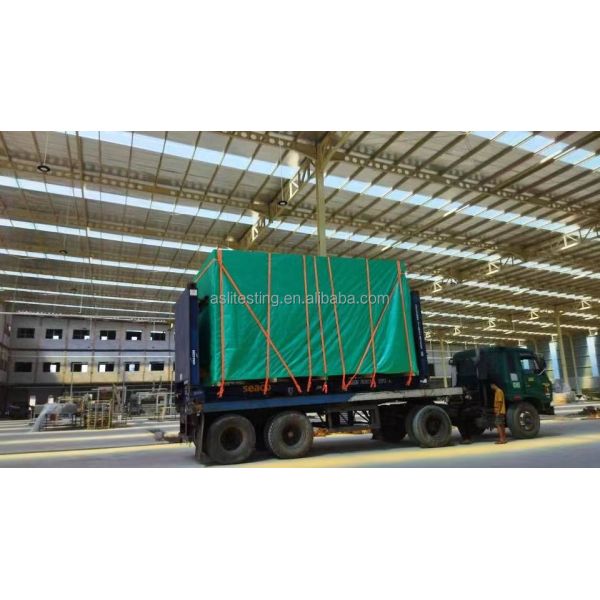

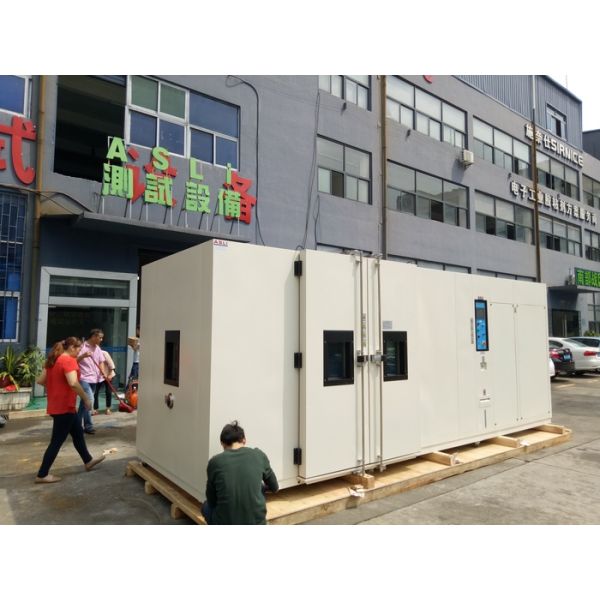

Packing & Delivery

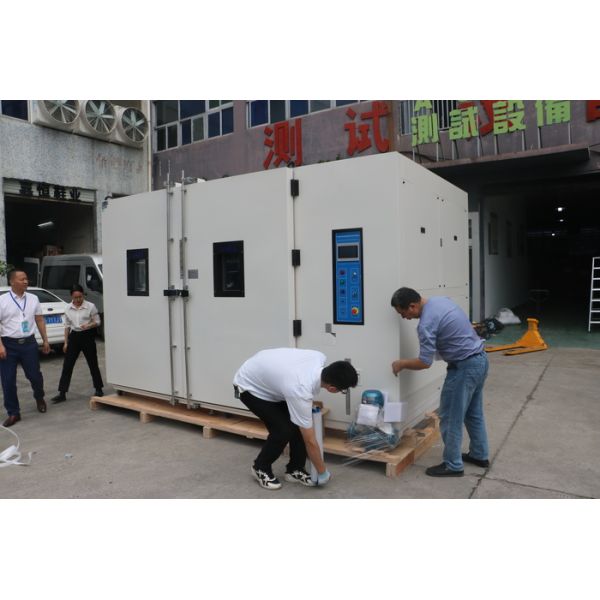

Packing Details: Export standard plywood case
Delivery Details: 30 days after order
Walk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test Chambers

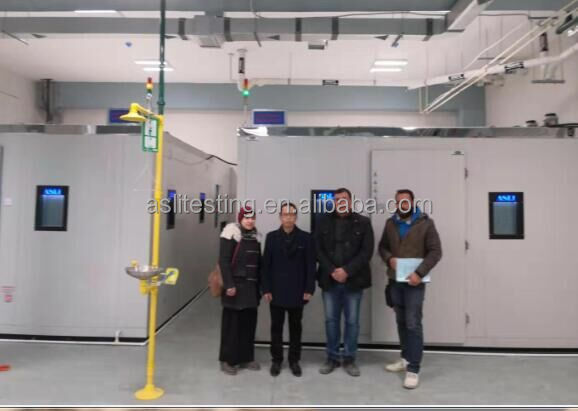

Our Customers
Walk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test ChambersWalk in Temperature and Humidity test Chambers
Key Features
  • Graceful appearance, circularly shaped body, surface treated with mist strips
  • Easy to operate, safe and reliable operation
  • Rectangular double-paned viewing window with interior lighting
  • Double-layer-insulated airtight doors for effective temperature insulation
  • Externally connectable water supply system with automatic recycling
  • French Tecumseh compressor with environmentally friendly refrigeration (R23 or R404A)
  • LCD display screen showing measured values, set values, and time
  • Multiple segment program editing with quick or ramp rate control
  • Mobility casters with strong positioning screws
Testing Data & Parameters

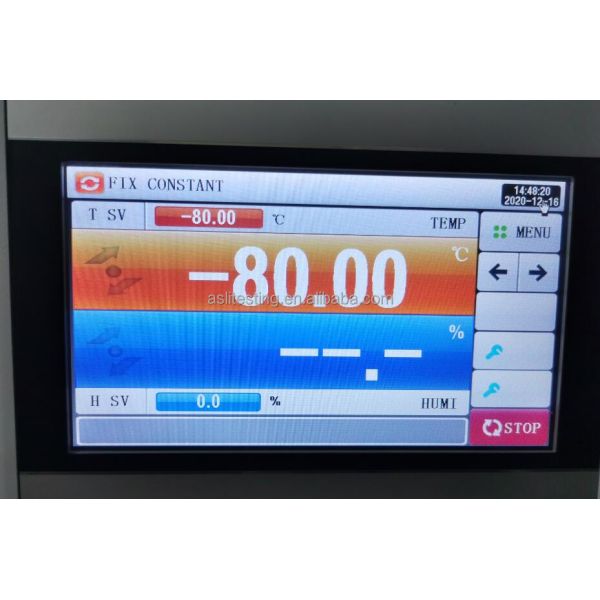

Display Mode: LCD display, touch control
Display Accuracy: temperature 0.1%, humidity 0.1%
Set Accuracy: temperature 0.1℃, humidity 0.1%
Display Resolution: temperature 0.1℃, humidity 0.1%
Sampling Time: 1 time/S

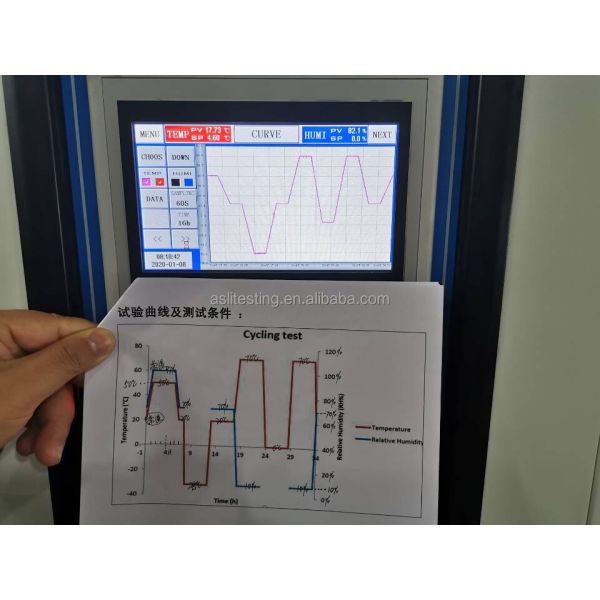

Graphical Display: Full display of setting and program curve
Program Capacity: Max. 100 programs, each program with 50 segments, max. 999 cycles
Walk in Temperature and Humidity test Chambers
Multi-Protection Functions
  • Grounded protection
  • Leakage/breakage protection
  • Heater short-circuit protection
  • Blower motor overload protection
  • Refrigerator over-voltage protection
  • Refrigerator overload protection
  • Water shortage protection
Walk in Temperature and Humidity test Chambers
Frequently Asked Questions
1. How can I get the price?
We usually quote within 24 hours after we get your inquiry (except weekends and holidays). For urgent pricing requests, please contact us directly.
2. What is your lead time?
Lead time depends on order quantity and season. Typically, we ship within 7-15 days for small quantities and about 30 days for large quantities.
3. What is your payment term?
T/T, Western Union, MoneyGram, and Paypal. Payment terms are negotiable.
4. What is the shipping method?
Shipping options include sea, air, or express (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm shipping method before placing orders.
5. How do you maintain long-term business relationships?
We maintain good quality and competitive pricing to ensure customer benefits. We respect every customer and sincerely conduct business while building lasting relationships.
For more information about our Walk-in Temperature Test Chambers, please don't hesitate to send your inquiry.
