Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
MOQ :
1
Power :
20kw
Voltage :
380 V
Refrigerants :
R404A or equivalent
Test Hole :
Dia. 50mm
Communication Interface :
RS232,R485
Temperature Range :
-60℃ ～ +150 ℃
Humidity Range :
20% ~ 98% RH
Humidity Deviation :
± 2.5% RH
Temperature Change Rate :
1 ~ 3.4℃ / Min
Panel Size :
1M*2M
Cooling :
R23/R404A
Controller :
Programmable color LCD touch screen controller
Sensor :
PT100Ω
Interior Material :
SUS 316 stainless steel
Power Supply :
220V 50Hz / 380V 50HZ
Description

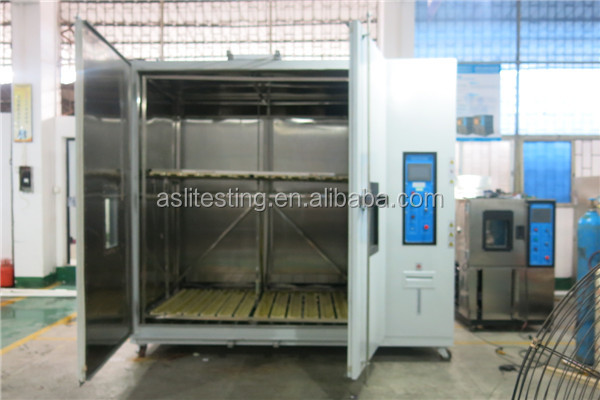

Walk-In Climatic Test Chamber
Large temperature humidity room for environmental simulation and PV solar panel testing
Product Specifications
NamePV Tester PV Solar Panel Simulator Test Chamber PV Test Machine
ModelTHV-Volume-5
Internal DimensionTo be confirmed
Overall DimensionTo be confirmed
Temperature Range-60℃ to +150℃
Humidity Range20% to 98% RH
Humidity Deviation±2.5% RH
Temperature Change Rate1 to 3.4℃/Min
Panel Size1M*2M
Panel Capacity4/6/8/10/12 Pieces (customized accordingly)
CoolingR23/R404A
ControllerProgrammable color LCD touch screen controller with Ethernet connection, PC Link, USB
SensorPT100Ω
Safety DevicesHumidifier dry-combustion protection, over-temperature protection, over-current protection, refrigerant high-pressure protection, water shortage protection, earth leakage protection
Exterior MaterialWhite powder coated
Interior MaterialSUS 316 stainless steel

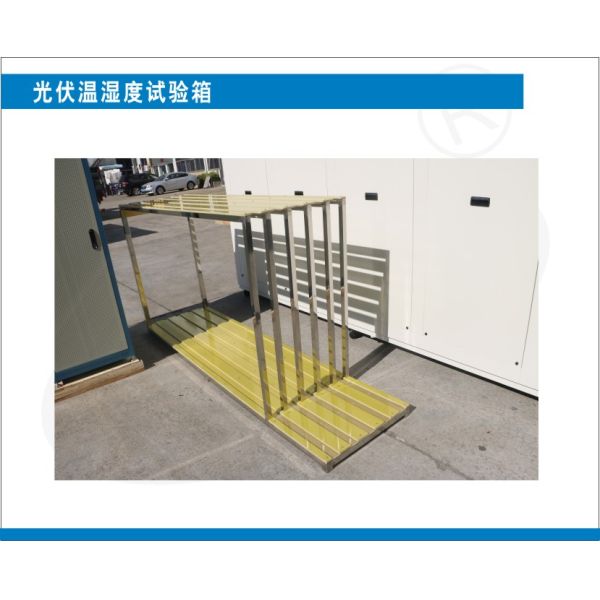

Standard ConfigurationCable hole (Φ50 or Φ100) with plug, and 1 sample rack
Power Supply220V 50Hz / 380V 50HZ
Compliance StandardsIEC61215, IEC61646, IEC61108, IEC62688, UL1703, IEC61345, IEC61730, IEC61290, IEC61282, ASTM E1036
Key Features
  • 7 inch LCD Touch Screen (TATO TT5166)
  • PID Control of Temperature and Humidity
  • Both Temperature and Humidity are Programmable
  • With Humidity Sensor
  • With thermostats (prevent overheat)
  • Test Hole (50 mm diameter)
  • With Data Storage function by USB Flash Memory
  • Protection (phase protection, overheat, over current etc)
  • Water Tank with level detector
  • Adjustable Shelf
  • With RS485/232 output to computer
  • Remote fault notification (optional)
  • Observation window with multi-layer vacuum glass
  • User friendly three color LED indicator lamp
  • Pure water filter (optional)
  • Manual locking chamber door
  • CFC Free Refrigerant
  • Anti-condensed steam by Automatic defrost system
  • Emergency stop button
  • Automatic shutdown when system is too hot or too cold
  • Compressor high-pressure protector

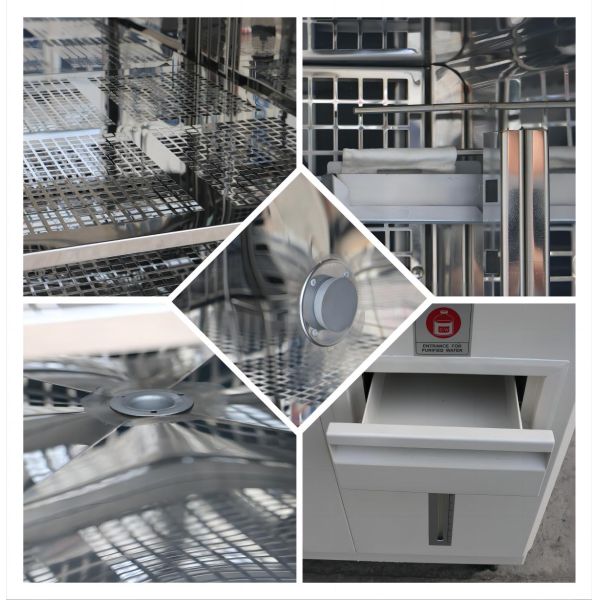

Product Images
Walk-In Climatic Test Chamber | Large Temperature Humidity Room for Environmental Simulation Walk-In Climatic Test Chamber | Large Temperature Humidity Room for Environmental Simulation Walk-In Climatic Test Chamber | Large Temperature Humidity Room for Environmental Simulation Walk-In Climatic Test Chamber | Large Temperature Humidity Room for Environmental Simulation Walk-In Climatic Test Chamber | Large Temperature Humidity Room for Environmental Simulation Walk-In Climatic Test Chamber | Large Temperature Humidity Room for Environmental Simulation

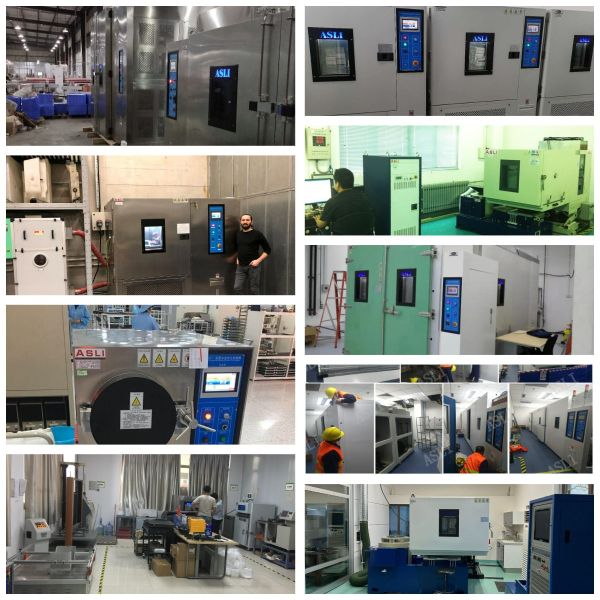

Manufacturing Company
