Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
MOQ :
1
Accuracy :
0.1
Power :
8KW
Voltage :
380 V
Internal Dimension :
W500*H600*D500mm
Volume :
150 Liters
Temperature Range :
-20~150C
Humidity Range :
20%~98%R.H.
Temperature Rising Rate :
3.0 C/min
External Dimension :
1200x1900x1300mm
Control Accuracy :
±0.5°C; ±2.5% R.H.
Temperature Velocity :
0.1~3.0°C/min (rising); 0.3~1.0°C/min (falling)
Inner Material :
SUS 304# stainless steel
Outer Material :
Stainless steel or SEE cold-rolled steel
Insulation Material :
High-density foam
Cooling System :
Wind or water cooling
Description

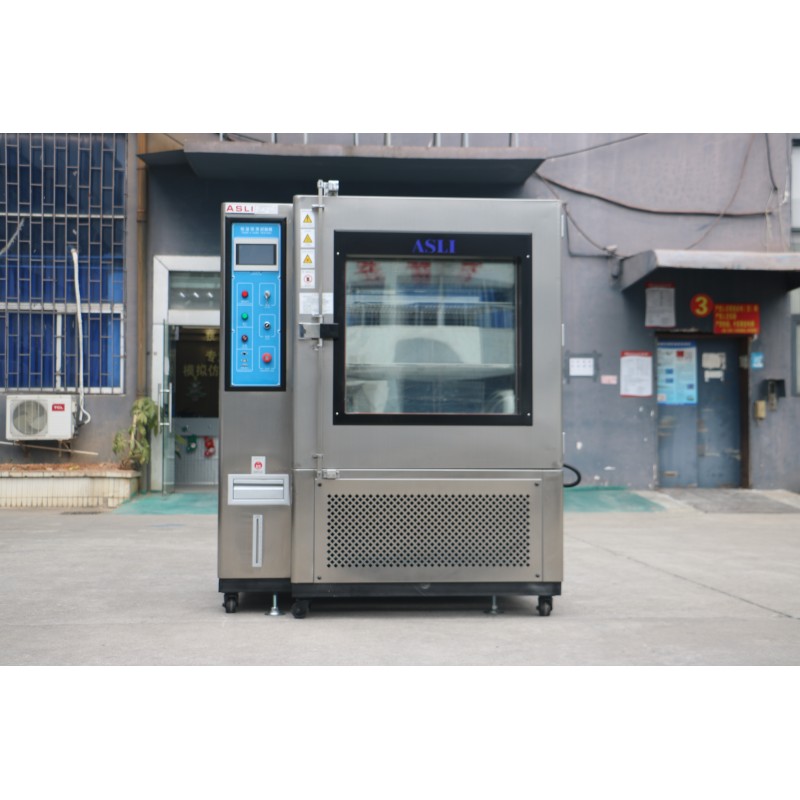

Full-Size Observation Window Environmental Test Chamber
This laboratory temperature and humidity test equipment offers precise environmental simulation with quick and constant conditions from 5% to 98% R.H. ±0.5% and -70°C to 150°C ±0.5°C. Designed for comprehensive resistance testing to heat, cold, dry, and humidity conditions, it is widely used for conditioning various samples prior to testing.
Applications
The chamber tests heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance capabilities. It is suitable for quality control across multiple industries including electronics, electrical equipment, automotive, metal, foodstuffs, chemicals, building materials, luggage, adhesion tape, printing, and packaging.
Technical Specifications
Parameter Specification
Model TH-500 (A~F)
Internal Dimension W×H×D (mm) 800×800×800
External Dimension W×H×D (mm) 1200×1900×1300
Temperature Range Low Temperature (A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 150°C
Humidity Range 20%~98% R.H. (10%-98% R.H. / 5%-98% R.H optional, requires dehumidifier)
Indication Resolution / Distribution Uniformity 0.1°C; 0.1% R.H / ±2.0°C; ±3.0% R.H.
Control Accuracy ±0.5°C; ±2.5% R.H.
Temperature Rising/Falling Velocity Rising: 0.1~3.0°C/min; Falling: 0.3~1.0°C/min (Min. 1.5°C/min falling optional)
Inner and Outer Material Interior: SUS 304# stainless steel; Exterior: stainless steel or SEE cold-rolled steel with paint coating
Insulation Material High-temperature resistant, high-density formate chlorine ethyl acetum foam insulation
Cooling System Wind cooling or water cooling (single segment compressor -40°C, double segment compressor -70°C)
Protection Devices Fuse-free switch, compressor overloading protection, high/low voltage coolant protection, over-humidity and over-temperature protection, fuses, fault warning system, water shortage warning protection
Product Images
Full-Size Observation Window Environmental Test Chamber | Laboratory Temperature and Humidity Test Equipment
Full-Size Observation Window Environmental Test Chamber | Laboratory Temperature and Humidity Test Equipment
Full-Size Observation Window Environmental Test Chamber | Laboratory Temperature and Humidity Test Equipment
Heated Humidification System Features
  • U-TYPE SUS#304 stainless steel electric heat pipe heater
  • Humidify barrel made of SUS#304 stainless steel with observation glass and electromagnetic water level valve
  • Independent heating, humidification, and dehumidification systems
  • Automatic heating, wetting and demist functions with observation glass and imported tubing
  • Humidification water recycling with automatic filling system and 25L built-in draw-out type water tank
Related Products
Full-Size Observation Window Environmental Test Chamber | Laboratory Temperature and Humidity Test Equipment

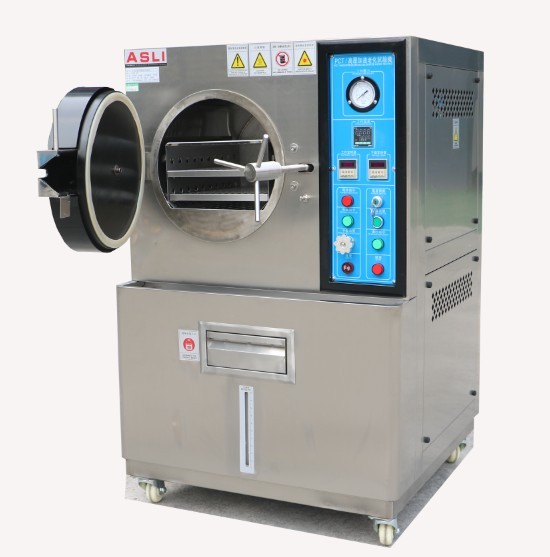

PCT Pressure Cooker
Full-Size Observation Window Environmental Test Chamber | Laboratory Temperature and Humidity Test Equipment
Salt Spray Test Chamber
Full-Size Observation Window Environmental Test Chamber | Laboratory Temperature and Humidity Test Equipment

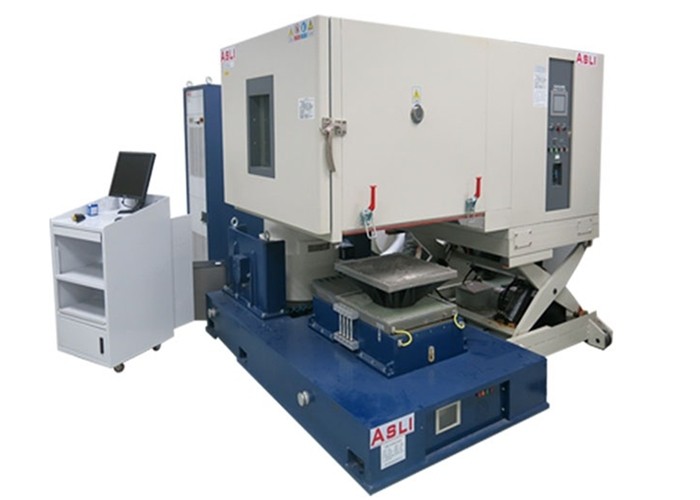

Temperature Humidity Vibration System
