Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
Model Number :
TH-225-E
MOQ :
1
Certification :
CE, ISO,SGS, BV
Internal Dimension :
W600*H750*D500mm
Volume :
225L
Display :
Programmable Touch Screen
Safety Device :
Emergency stop button
Computer Control :
yes
Test Hole :
Dia. 50mm
Communication Interface :
RS232
Power Supply :
AC 380V
Temperature Range :
Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃)High Temperature 150℃
Humidity Range :
20%~98%R.H.
Control Accuracy :
±0.5℃; ±2.5% R.H.
Temperature Velocity :
Rising approx. 0.1~3.0℃/min; Falling approx. 0.1~1.0℃/min
Inner Material :
SUS 304# stainless steel
Outer Material :
Stainless steel or SEE cold-rolled steel with paint coated
Sheet Thickness :
2.0mm
Description

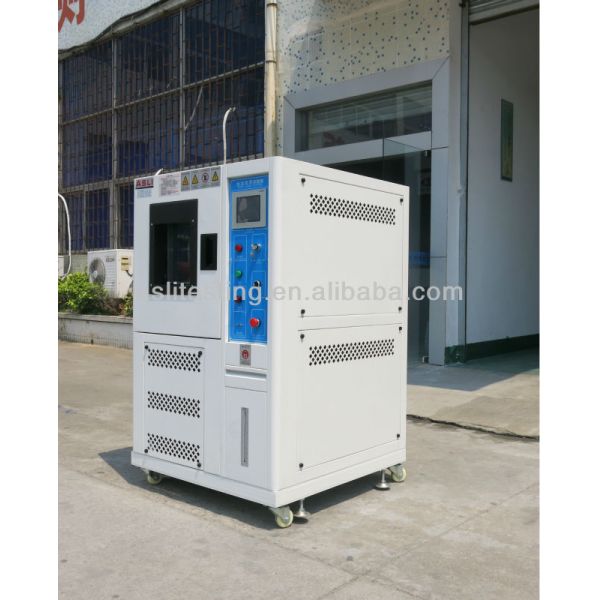

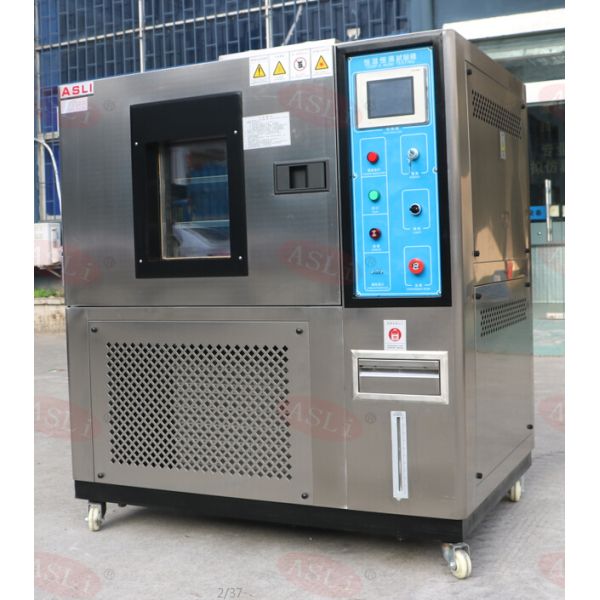

Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber
These test chambers are designed for evaluating the performance of various products including aerospace components, electronics, instruments, materials, food products, chemicals, building materials, and medical devices under high-low temperature or temperature and humidity alternating environments.
Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber
Technical Specifications
Model TH-225(A~F) TH-408(A~F) TH-800(A~F)
Internal Dimension WxHxD (mm) 600x750x500 600x850x800 1000x1000x800
External Dimension WxHxD (mm) 1200x1900x1150 1200x1950x1350 1600x2000x1450
Temperature Range Low Temperature (A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃
Humidity Range 20%~98% R.H. (10%-98% R.H. / 5%-98% R.H optional, requires dehumidifier)
Control Accuracy ±0.5℃; ±2.5% R.H.
Temperature Rising/Falling Velocity Temperature rising approx. 0.1~3.0℃/min; temperature falling approx. 0.1~1.0℃/min (Falling Min.1.5℃/min optional)
Inner and Outer Material Interior: SUS 304# stainless steel, Exterior: stainless steel or SEE cold-rolled steel with paint coating
Key Features
  • Adjustable air outlet for optimal temperature/humidity regularity; triple independent temperature security protection system
  • Copper evaporator coils, fins, and connectors with heat transfer coefficient over 20, preventing chemical coupling from stainless steel or aluminum
  • Advanced control system with mechanical refrigeration capable of reaching -90ºC
  • Modern "L" solid design with customizable colors and appearance effects
  • Large temperature range: -40ºC~200ºC with 2.0mm thickness sheet metal
  • Unique temperature and humidity control range capabilities
  • Automatic watering system with drawer-type hidden water tank and water recovery system with level sensor
  • Competitive pricing with high quality and comprehensive after-sales service

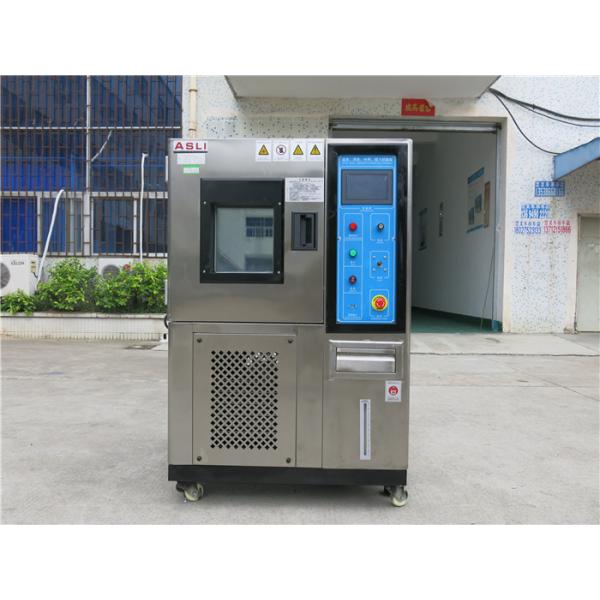

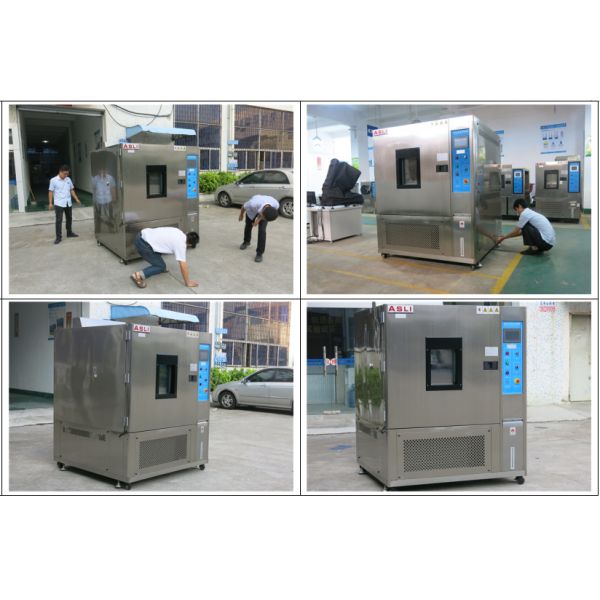

Product Images
Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber
Related Products
Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber

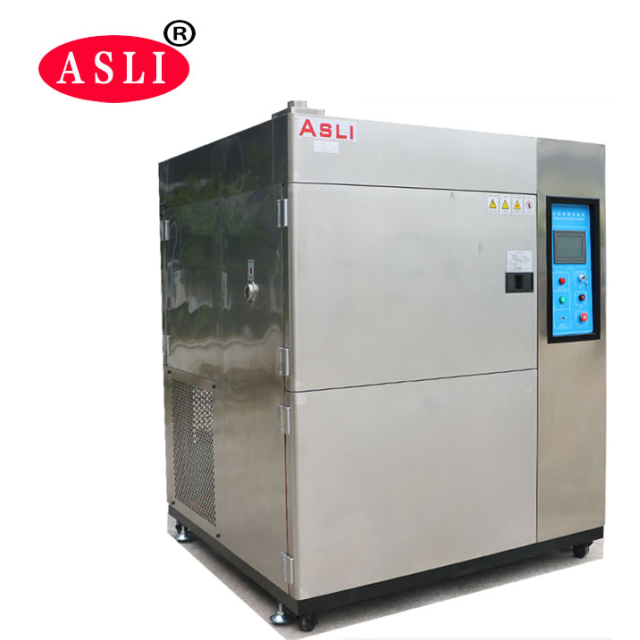

Thermal Shock Test Chamber
Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber
Temperature Humidity Vibration Test
Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber

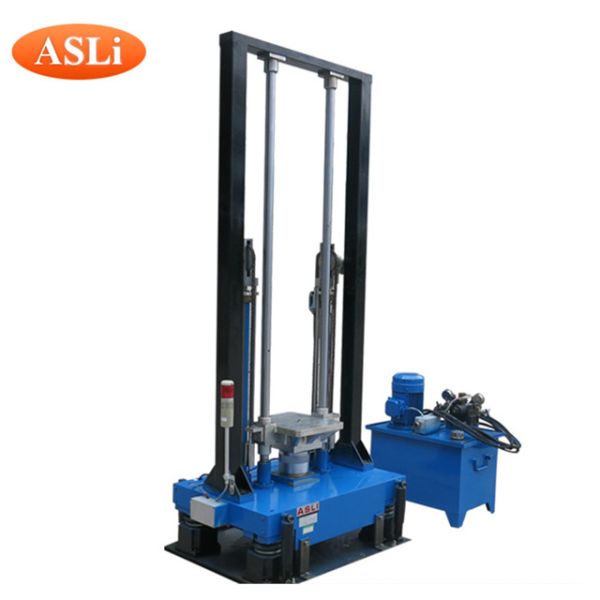

Acceleration Mechanical Shock Tester
About Our Company
Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber
With 28 years of experience, we are a leading manufacturer of simulation environmental testing equipment and mechanical vibration and shock testing machines. Our Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber is a star product that has obtained CE certification.

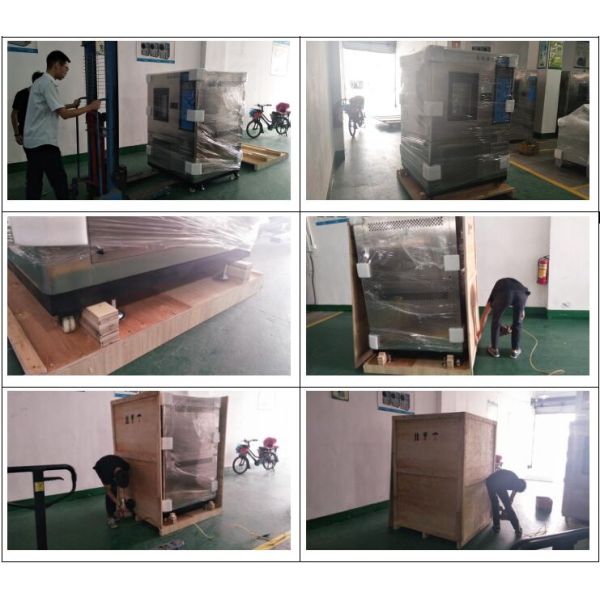

Packing & Delivery
Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber
Our Service Commitment
  • High quality guarantee
  • Professional documentation with shipment
  • Customized packaging with pre-shipment photos
  • 48-hour response time with solutions within 3 working days
  • Professional engineering after-service support
  • 12-month warranty period
Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber Cooling Temperature Calibration Conditioning Temp Humidity Test Chamber
Frequently Asked Questions
What is your terms of packing?
PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What is your terms of delivery?
EXW, FOB, CIF, DDU, DDP
How about your delivery time?
Generally, it will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
