Best Price Chemical Composition Testing Machine
Best Price Chemical Composition Testing Machine
Best Price Chemical Composition Testing Machine
Best Price Chemical Composition Testing Machine
Best Price Chemical Composition Testing Machine
Best Price Chemical Composition Testing Machine
Best Price Chemical Composition Testing Machine
Best Price Chemical Composition Testing Machine
Best Price Chemical Composition Testing Machine
Best Price Chemical Composition Testing Machine
Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
Model Number :
TH-225
MOQ :
1
Model :
TH-225-B
Internal Dimension :
W600xH750xD500(mm)
External Dimension :
W1200xH1900xD1150(mm)
Low Temperature :
0℃
High Temperature :
150℃
Humidity Range :
20%~98% R.H.
Analytic Accuracy :
0.1℃; 0.1% R.H
Temperature Control Accuracy :
±0.5℃
Humidity Control Accuracy :
±2.5% R.H.
Temperature Rising Speed :
0.1~3.0°C/min
Temperature Falling Speed :
0.1~1.5°C/min
Inner Box Material :
SUS 304# stainless steel
Outer Box Material :
Stainless steel or SEE cold-rolled steel
Power Supply :
AC220V 1ph 3 lines
Weight :
400 kg
Description

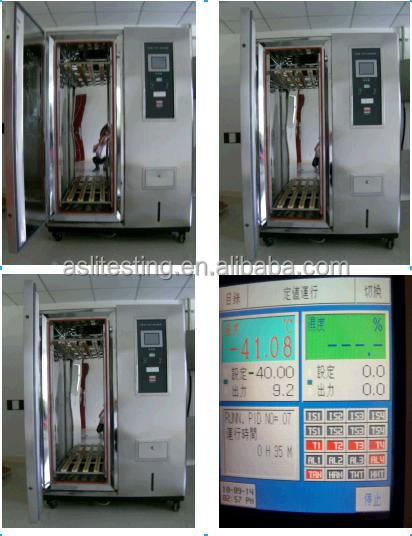

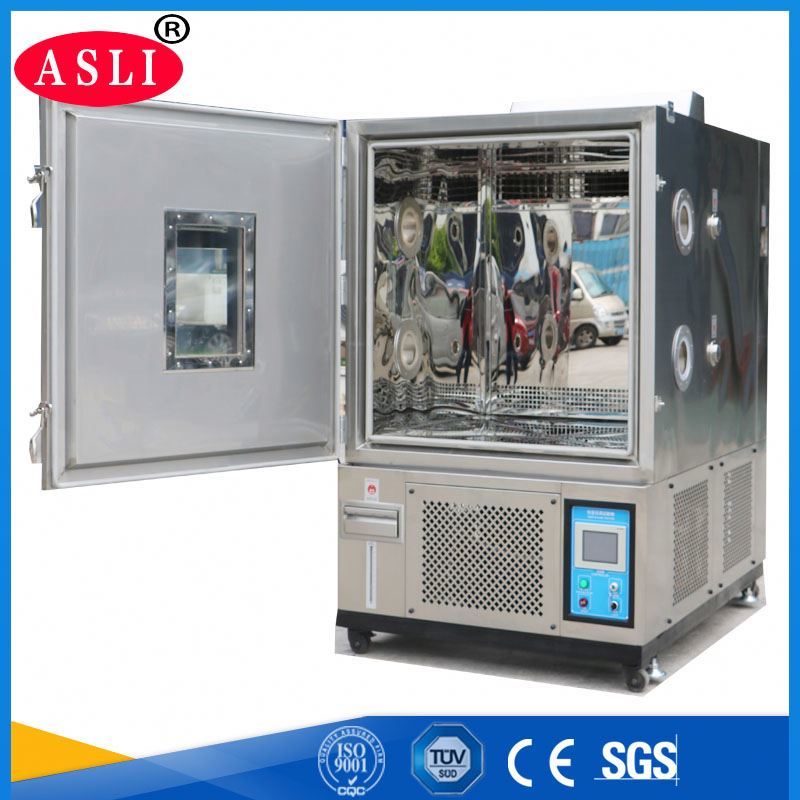

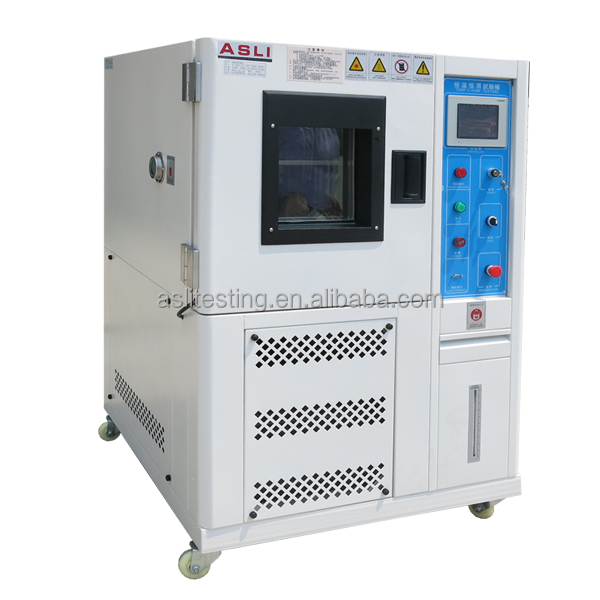

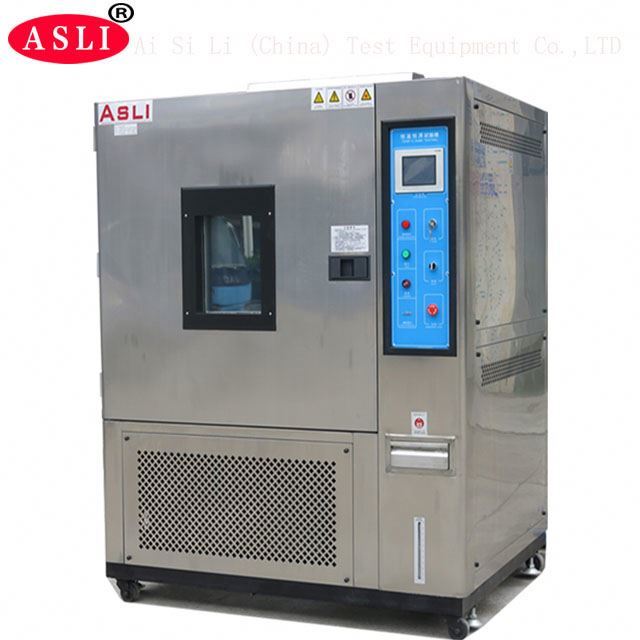

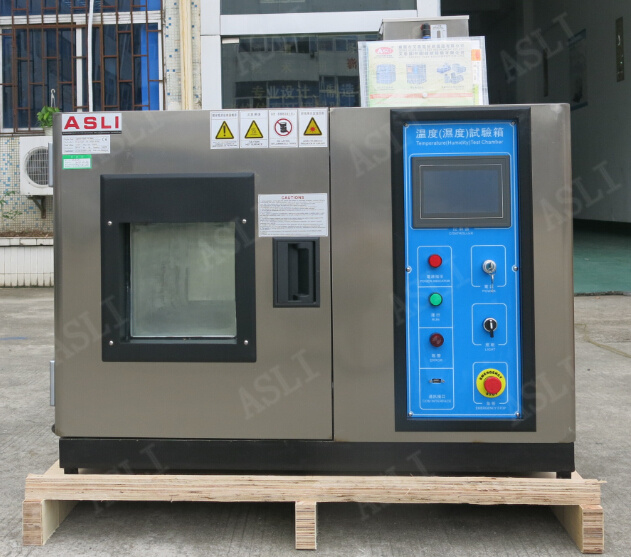

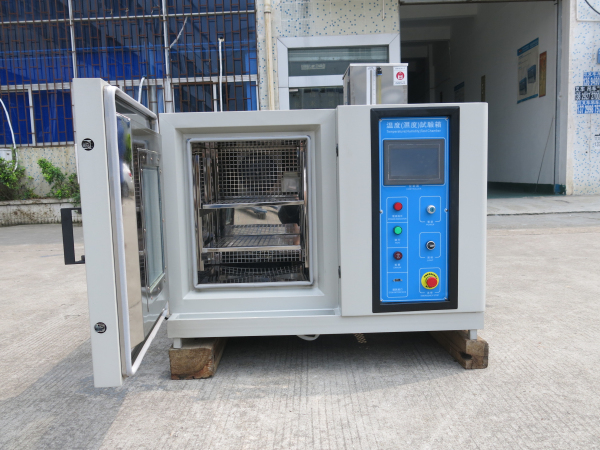

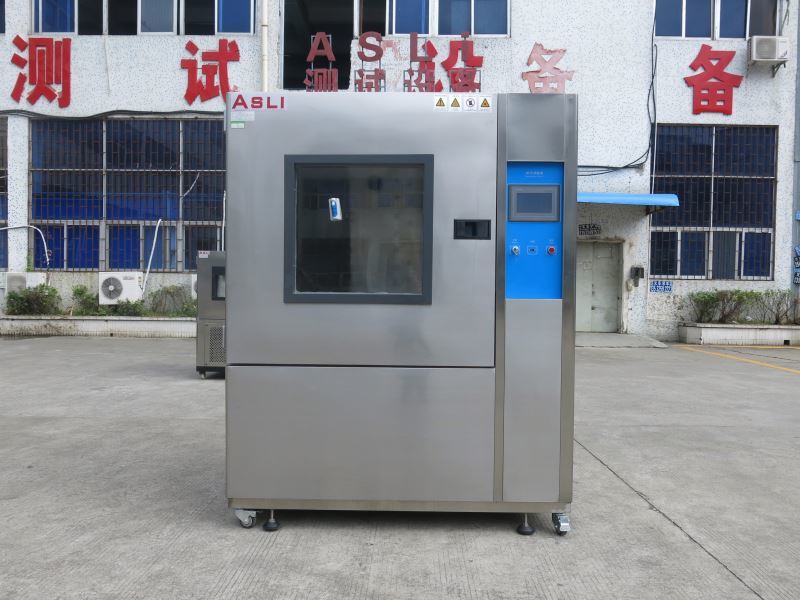

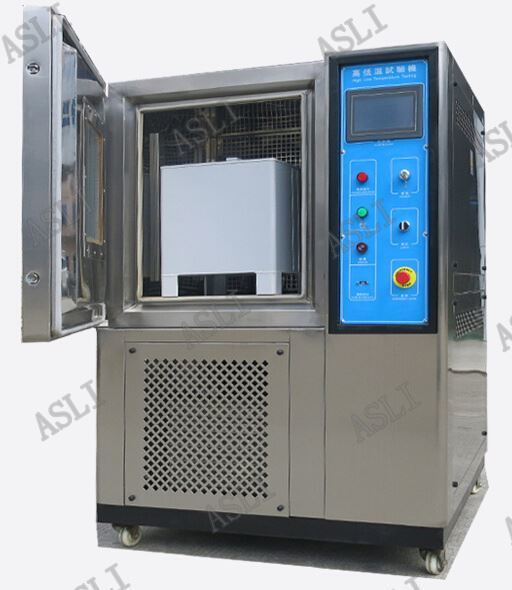

TH-225-A Humidity Chamber - Chemical Composition Testing Machine
CE Approved high-quality temperature and humidity testing chamber designed for laboratory testing equipment applications. This climatic chamber provides precise environmental simulation for material testing and quality control.
Best Price Chemical Composition Testing Machine Best Price Chemical Composition Testing Machine Best Price Chemical Composition Testing Machine
Applications
This climatic chamber is designed to test material tolerances for heat, cold, dry, and humidity conditions. Ideal for quality inspection across multiple industries including electronics, appliances, communications, automotive, plastics, metals, food processing, chemicals, building materials, medical devices, and aerospace.
Key Features
  • Elegant circular-shaped body with mist strip surface treatment and ergonomic handle design

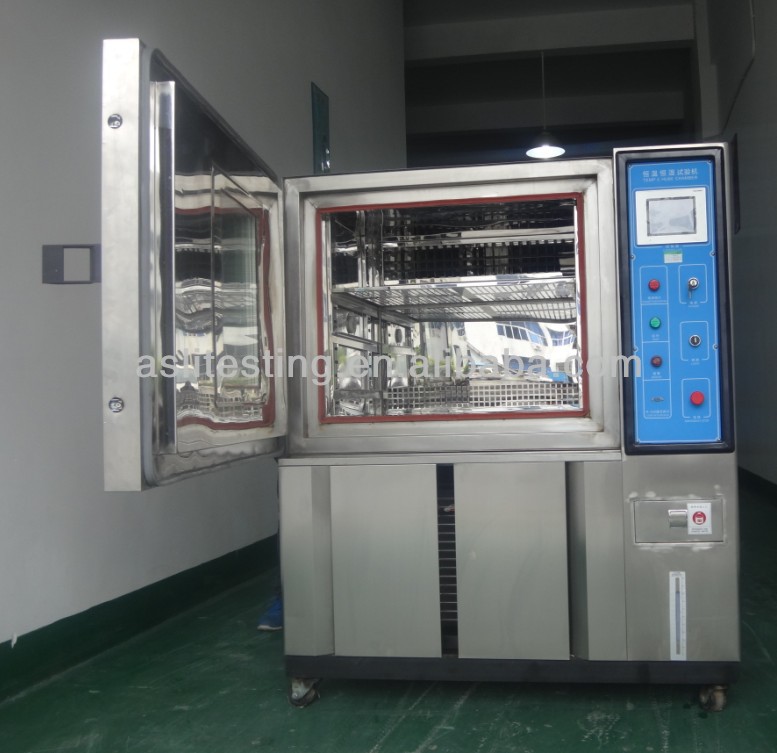

  • Rectangular double-glassed observation window with anti-condensation heating and PL fluorescent lighting
  • Double-layer insulated airtight doors for effective temperature isolation
  • External water supply system with automatic recycling for humidification
  • French Tecumseh compressor system with environmentally friendly refrigerants (R232, R404)
  • Imported LCD display showing measured values, set values, and time
  • Multi-segment program editing with temperature and humidity slope control
  • Mobile pulley system with positioning screws for easy relocation
Technical Specifications
Parameter Specification
Model TH-225-A
Internal Dimension W600×H750×D500 (mm)
External Dimension W1200×H1900×D1150 (mm)
Temperature Range Low: Customizable from -25°C | High: 150°C
Humidity Range 20% to 98% R.H.
Analytic Accuracy 0.1°C; 0.1% R.H.
Distribution Uniformity ±2.0°C; ±3.0% R.H.
Control Accuracy ±0.5°C; ±2.5% R.H.
Temperature Rate Rising: 0.1-3.0°C/min | Falling: 0.1-1.5°C/min
Construction Material Inner: SUS 304 stainless steel | Outer: Stainless steel or painted cold-rolled steel
Cooling System Wind or water cooling with single/double segment compressor
Power Supply AC220V 1ph 3 lines or AC380V 3ph 5 lines, 50/60Hz
Approximate Weight 400 kg
Best Price Chemical Composition Testing Machine Best Price Chemical Composition Testing Machine Best Price Chemical Composition Testing Machine Best Price Chemical Composition Testing Machine Best Price Chemical Composition Testing Machine
Protection & Safety Systems
Comprehensive protection including fuse-free switch, compressor overload protection, high/low pressure coolant protection, over-humidity and over-temperature protection, fuses, fault warning system, and water shortage protection.
Optional Accessories
Inner door with operation hole, data recorder, water purifier, dehumidifier.
Packaging & Shipping
Professional export packaging with PP film wrapping, 10mm foam cushioning, and standard export plywood case for secure international shipping.
Best Price Chemical Composition Testing Machine Best Price Chemical Composition Testing Machine
Manufacturer Information
ASLi Test Equipment Co., Ltd. - 25 years of expertise in simulation environmental testing equipment and mechanical vibration systems. Specialized in HAST Un-Saturated Steam Chambers with CE certification.
Best Price Chemical Composition Testing Machine Best Price Chemical Composition Testing Machine Best Price Chemical Composition Testing Machine
Frequently Asked Questions
Are you a trading company or manufacturer?
We are the factory with 28 years of experience in test instruments and 4 years of export experience.
What is the delivery time?
Typically 20 working days. For finished products, shipment can be arranged within 3 working days. Production lead times vary by specific items and quantities.
What is the warranty and after-sales service?
12-month warranty with professional technical support and problem resolution services after warranty period.
What services and quality assurance do you provide?
OEM services, design services, and buyer label services. All instruments undergo 100% quality examination and third-party calibration before shipment.
How is installation and training handled?
Simple installations use operation manuals. Complex systems include factory training or overseas engineer support.
What are your main products?

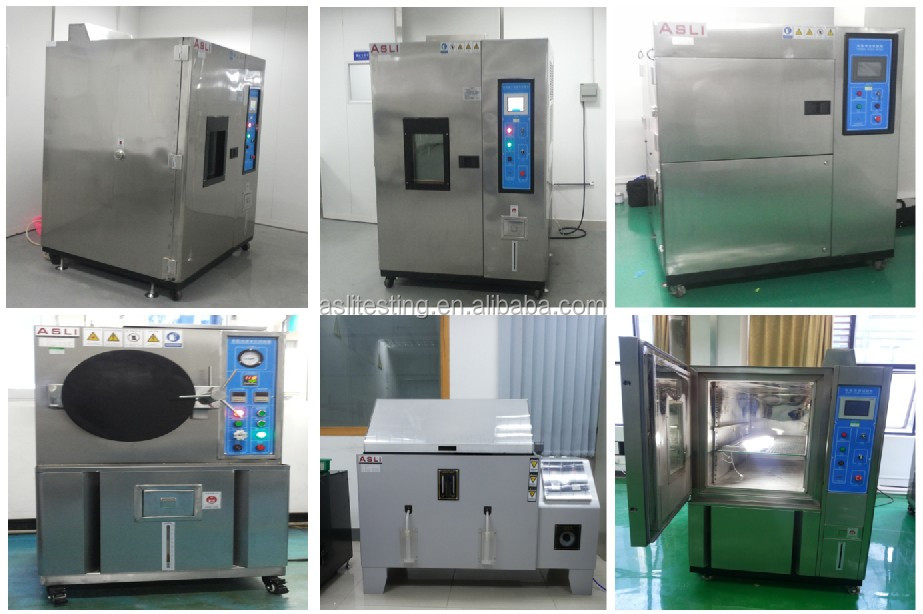

Environmental chambers, temperature/humidity chambers, HAST chambers, ESS chambers, walk-in stability chambers, vacuum ovens, altitude chambers, vibration test systems, and environmental combined vibration chambers.
Contact Information
Ms. Kris - Sales
AI SI LI (CHINA) TEST EQUIPMENT CO., LTD
Building C, JinHui Industrial Park, LiXin town
East City district 523125, DongGuan City, China
Tel: 0086-769-23164266
Cell: 0086-136 0238 4360
Welcome visits from new and regular customers. Please contact us for any inquiries!
