Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
Model Number :
TH-80-D
MOQ :
1
Internal Dimension :
W400xH500xD400mm
Temperature Range :
-40~150°C
Humidity Range :
15%~98% R.H.
Temperature Accuracy :
±0.5°C
Humidity Accuracy :
±2.5% R.H.
Volume :
225L
Test Hole Diameter :
50 mm
Communication Interface :
RS232
Temperature Sensor :
DIN PT-100Ω
Noise Level :
68 dBA
Weight :
150 kg
Temperature Rising Velocity :
0.1~3.0°C/min
Temperature Falling Velocity :
0.1~1.0°C/min
Program Segments :
50 segments max
Cycle Testing :
13450 times max
Description
Micro Mini Temperature Test Climate Humidity Stability Test Chamber
Advanced environmental testing chamber designed for precise temperature and humidity simulation with comprehensive testing capabilities.
Applications
  • Simulates test environments with varying temperature and humidity conditions
  • Performs cyclic tests including holding, cooling, heating, moistening, and drying cycles
  • Cable port with flexible silicone plug for testing units under operational conditions
  • Accelerated testing to identify unit weaknesses in short-term evaluations
Chamber Design Features
  • High-performance operation with quiet operation (68 dBA)
  • Space-saving design for flush wall installation
  • Full thermal break around doorframe for optimal insulation
  • 50mm diameter cable port with flexible silicone plug
  • Accurate wet/dry-bulb humidity measurement system for easy maintenance
Programmable Controller
  • Advanced PLC controller for precise chamber management
  • Multiple step types: ramp, soak, jump, auto-start, and end
  • RS-232 interface for computer connectivity and data output
Technical Specifications
Model TH-80(A~F) TH-150(A~F) TH-225(A~F)
Internal Dimension W×H×D (mm) 400×500×400 500×600×500 600×750×500
External Dimension W×H×D (mm) 950×1650×950 1050×1750×1050 1200×1900×1150
Temperature Range Low Temperature (A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃
Humidity Range 20%~98% R.H. (10%-98% R.H. / 5%-98% R.H optional, requires Dehumidifier)
Control Accuracy ±0.5℃; ±2.5% R.H.
Temperature Rising/Falling Velocity Rising: 0.1~3.0℃/min; Falling: 0.1~1.0℃/min (Min. 1.5℃/min falling optional)
Optional Accessories Inner door with operation hole, Recorder, Water Purifier, Dehumidifier
Weight (kg) 150 180 250
Temperature and Humidity Control Tester Specifications
  • Imported LCD display screen showing measured values, set values, and time
  • Fixed condition or programmable condition settings available
  • Fixed condition setting time range: 0 - 99999 H 59 MIN
  • Programmable mode supports 269 different programs with multiple segments for cycle testing
  • Each program supports maximum 50 segments with different temperature settings
  • Segment running time maximum 530 hr 59 min, maximum 13450 cycle repetitions
  • Power-off memory device for program continuation after interruption
  • Slope control of temperature with self-calibration function
  • TIMER SIGNAL OUTPUT RELAY capability
  • Temperature sensor: DIN PT-100Ω

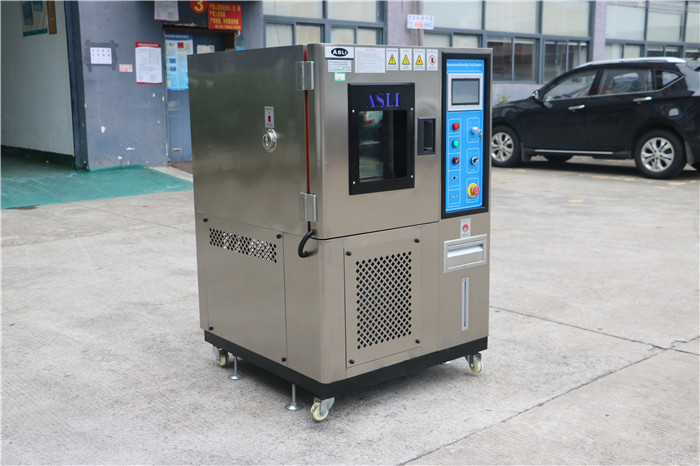

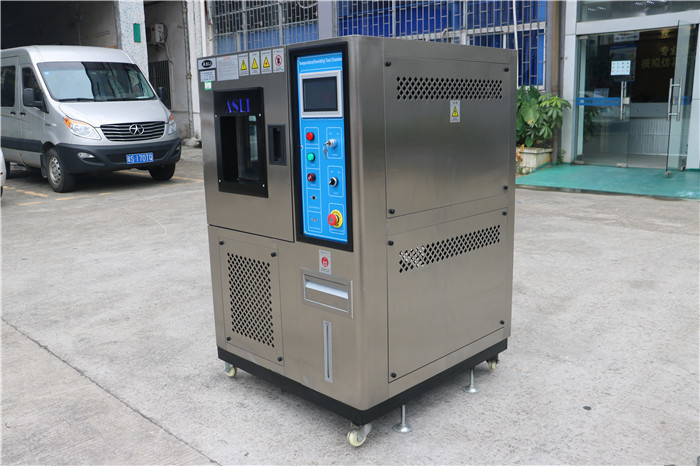

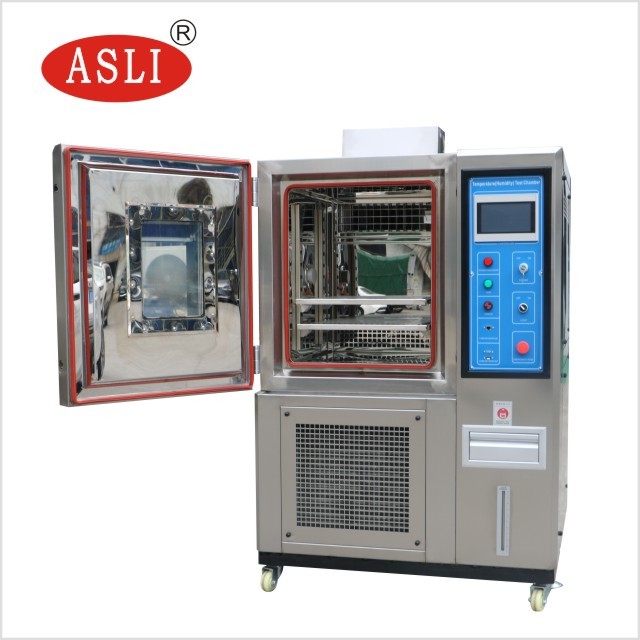

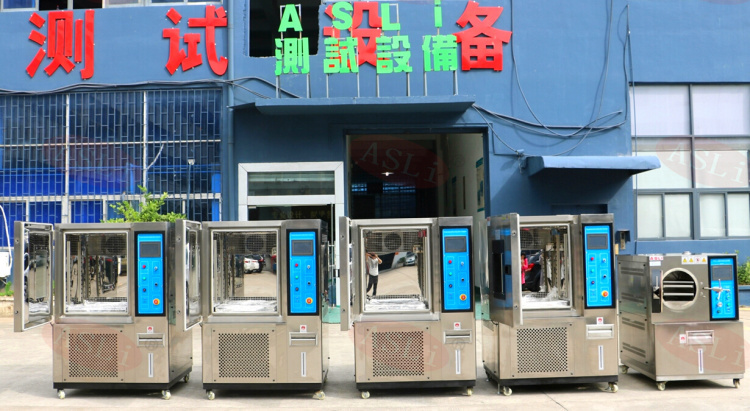

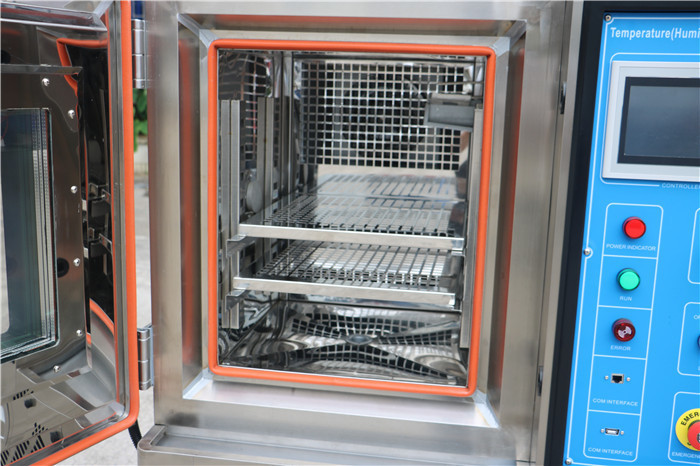

Product Images
Micro Mini Temperature Test Climate Humidity Stability Test Chamber Micro Mini Temperature Test Climate Humidity Stability Test Chamber Micro Mini Temperature Test Climate Humidity Stability Test Chamber Micro Mini Temperature Test Climate Humidity Stability Test Chamber Micro Mini Temperature Test Climate Humidity Stability Test Chamber Micro Mini Temperature Test Climate Humidity Stability Test Chamber Micro Mini Temperature Test Climate Humidity Stability Test Chamber
Company Profile
With 28 years of experience, we are a leading testing equipment manufacturer specializing in simulation environmental testing equipment and mechanical vibration/shock testing machines. Our Low Temperature Humidity Stability Chamber is a star product that has obtained CE certification.
Packing & Delivery
Micro Mini Temperature Test Climate Humidity Stability Test Chamber
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
For more information about our Low Temperature Humidity Stability Chamber, please feel free to contact us.
