Large High and Low Temperature Test Chamber for Module
Large High and Low Temperature Test Chamber for Module
Large High and Low Temperature Test Chamber for Module
Large High and Low Temperature Test Chamber for Module
Large High and Low Temperature Test Chamber for Module
Large High and Low Temperature Test Chamber for Module
Large High and Low Temperature Test Chamber for Module
Large High and Low Temperature Test Chamber for Module
Large High and Low Temperature Test Chamber for Module
Large High and Low Temperature Test Chamber for Module
Large High and Low Temperature Test Chamber for Module
Large High and Low Temperature Test Chamber for Module
Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
Model Number :
TH-225-E
MOQ :
1
Internal Dimension :
W600*H750*D500mm
Volume :
225L
Display Type :
Programmable Touch Screen
Test Hole Diameter :
Dia. 50mm
Communication Interface :
RS232
Power Supply :
AC 380V
Temperature Range :
-40ºC~200ºC
Humidity Range :
20%~98%R.H.
Control Accuracy :
±0.5℃; ±2.5% R.H.
Temperature Rising Velocity :
0.1~3.0℃/min
Temperature Falling Velocity :
0.1~1.0℃/min
Inner Material :
SUS 304# stainless steel
Outer Material :
Stainless steel or SEE cold-rolled steel
Sheet Metal Thickness :
2.0mm
Safety Device :
Emergency stop button
Description
Large High and Low Temperature Test Chamber for Module
More than 28 years experience • OEM accepted • Reasonable price • Fast Delivery
High Low Temperature Climatic Chambers are designed for testing performance indexes of aerospace products, ships, weapons, academic research, motorcycles, information electronics, instruments, materials, electronic engineering, electronic products, components, foodstuffs, chemicals, building materials, luggage, adhesive tape, printing, packaging materials, plastics, medical devices, and more in high-low temperature or temperature and humidity alternating environments.
Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module
Technical Specifications
Model TH-225(A~F) TH-408(A~F) TH-800(A~F)
Internal Dimension W×H×D (mm) 600×750×500 600×850×800 1000×1000×800
External Dimension W×H×D (mm) 1200×1900×1150 1200×1950×1350 1600×2000×1450
Temperature Range Low Temperature (A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃
Humidity Range 20%~98% R.H. (10%-98% R.H. / 5%-98% R.H. optional, requires dehumidifier)
Control Accuracy ±0.5℃; ±2.5% R.H.
Temperature Rising/Falling Velocity Temperature rising approx. 0.1~3.0℃/min; temperature falling approx. 0.1~1.0℃/min (Falling Min. 1.5℃/min optional)
Inner and Outer Material Interior: SUS 304# stainless steel, Exterior: stainless steel or cold-rolled steel with paint coating
Key Features
  • Adjustable air outlet for optimal temperature/humidity regularity; triple independent temperature security protector with redundant protection
  • Copper evaporator coils, fins, and connectors with heat transfer coefficient over 20, avoiding chemical coupling from stainless steel or aluminum
  • Advanced control system with mechanical refrigeration capable of reaching -90ºC
  • Modern "L" solid design with customizable colors and appearance effects representing LIK culture
  • Large temperature range: -40ºC to 200ºC with 2.0mm thickness sheet metal
  • Unique temperature and humidity controlled range capabilities
  • Automatic watering system with drawer-type hidden water tank and water recovery system with level sensor
  • Competitive pricing with high quality and comprehensive after-sales service

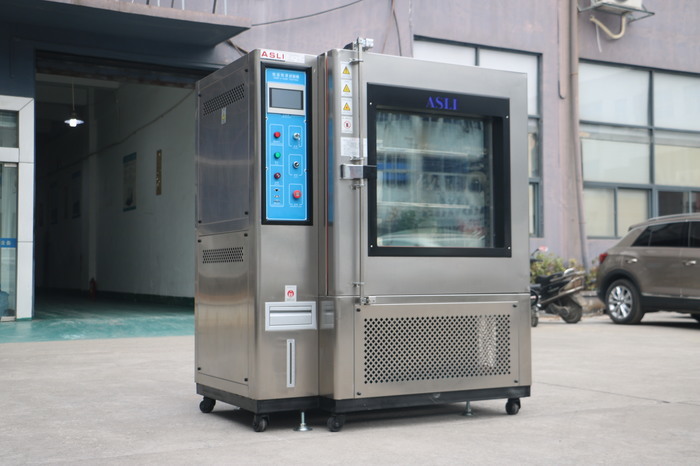

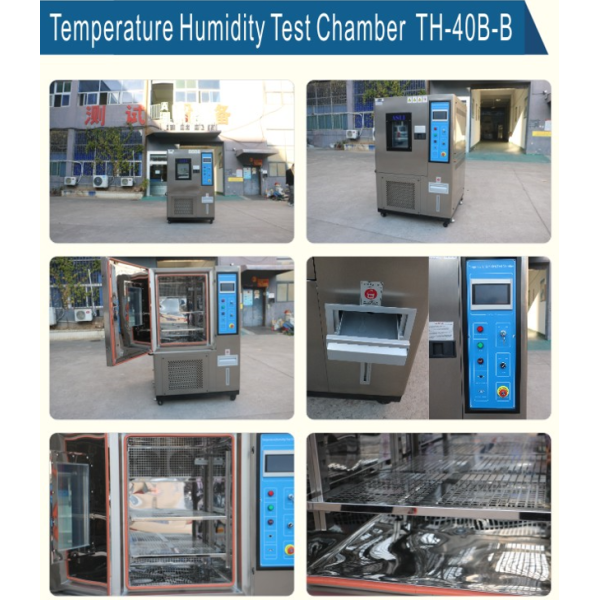

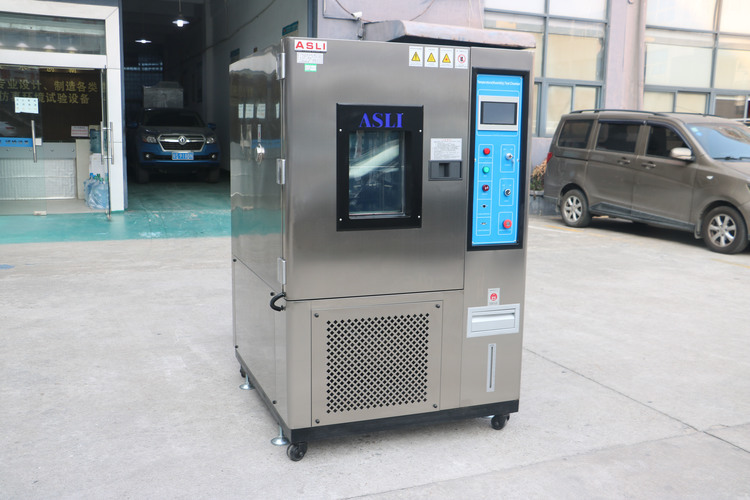

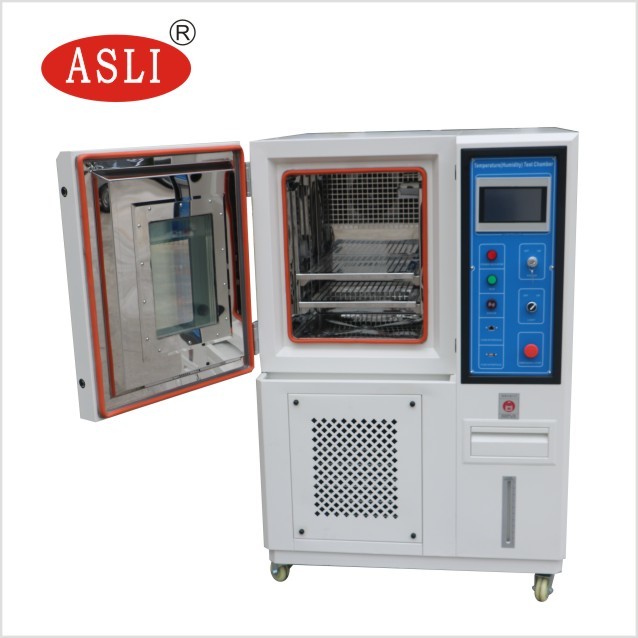

Product Images
Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module
Related Products
Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module
Thermal Shock Test Chamber
Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module
Temperature Humidity Vibration Test
Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module
Acceleration Mechanical Shock Tester

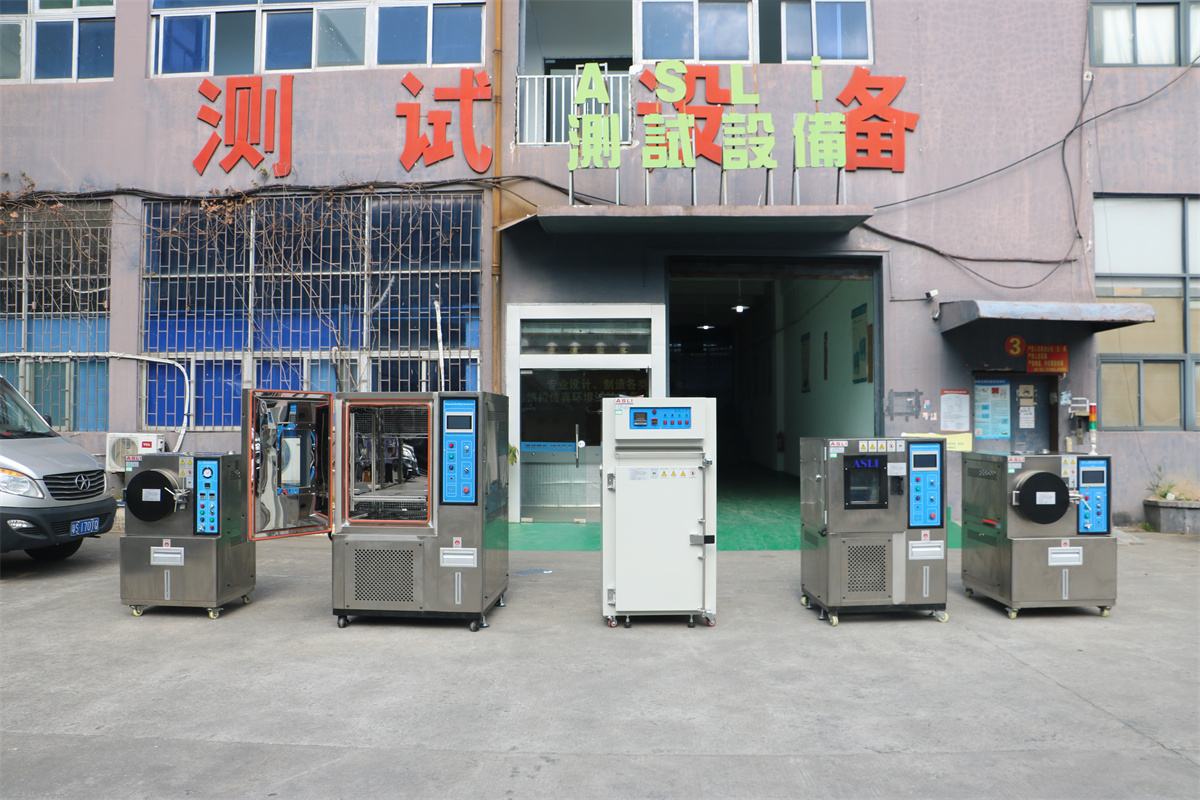

Company Profile
Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module
We are an established testing equipment manufacturer with 28 years of experience, specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our High Low Temperature Climatic Chamber is a star product that has obtained CE certification.
Packing & Delivery
Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module
Our Service Commitment
  • High quality guarantee
  • Shipment with professional documentation
  • Custom packaging with photos provided before shipment
  • Response within 48 hours with solutions within 3 working days
  • Professional after-service from our engineers
  • 12-month warranty period
Large High and Low Temperature Test Chamber for Module Large High and Low Temperature Test Chamber for Module
Frequently Asked Questions
What is your terms of packing?
PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What is your terms of delivery?
EXW, FOB, CIF, DDU, DDP
How about your delivery time?
Generally, it will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For any questions or requirements about our High Low Temperature Climatic Chamber, please feel free to send your inquiry.
