Big Size Temperature and Humidity Environmental Test Chamber
Big Size Temperature and Humidity Environmental Test Chamber
Big Size Temperature and Humidity Environmental Test Chamber
Big Size Temperature and Humidity Environmental Test Chamber
Big Size Temperature and Humidity Environmental Test Chamber
Big Size Temperature and Humidity Environmental Test Chamber
Big Size Temperature and Humidity Environmental Test Chamber
Big Size Temperature and Humidity Environmental Test Chamber
Big Size Temperature and Humidity Environmental Test Chamber
Big Size Temperature and Humidity Environmental Test Chamber
Big Size Temperature and Humidity Environmental Test Chamber
Big Size Temperature and Humidity Environmental Test Chamber
Specifications
Brand Name :
ASLI
Model Number :
THR-Series
Certification :
CE, ISO,SGS, BV
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 sets per quarter
Delivery Time :
40 work days after deposit
Packaging Details :
strongly wooden case
internal dimension :
customized
temperature range :
-70~150℃
humidity range :
20~98%R.H.
communication port :
LAN, USB
Test Hole :
Dia. 50mm
cooling method :
Air Cooling or Water cooled
Description
Product Description

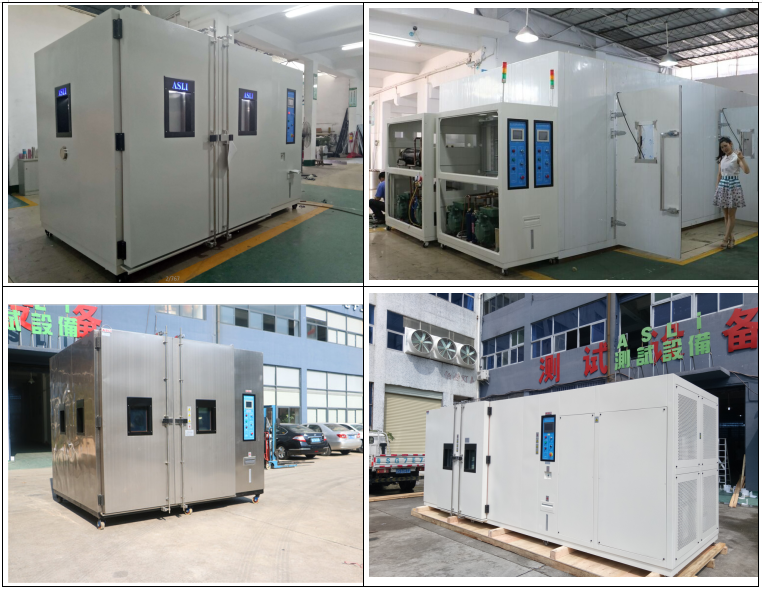

Big Size Temperature and Humidity Environmental Test Chamber is suitable for large part and machines undergone low to high, high to low temperature changing test, which can change the room size according to user's need. It applies to Patchwork type chamber, with the feature of nice looking outlook, scientific design for pipe and duct, all in one touch screen control panel and programmable logic controller can satisfy most needs of all kinds of clients.

Big Size Temperature and Humidity Environmental Test Chamber

Big Size Temperature and Humidity Environmental Test Chamber
Specification
Model
THR-volume (low-temperature options : A ~ F)
Inner Dimensions(cm)
Customers designated space size and design
Temperature Range
Low Temperature (A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C)
High Temperature 150°C (150°C ~200°C is optional)
Humidity Range
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
Control Accuracy of
Temperature and Humidity
±0.5°C; ±2.5% R.H.
Temperature Rising/ Falling Velocity
Temperature rising approx. 0.1~3.0°C/min
temperature falling approx. 0.3~1.0°C/min;
( faster temperature change rate is a optional)
Cooling System
Air Cooling or Water cooled
Protection Devices
Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories
Slope for cart , Recorder, Water Purifier, Dehumidifier
Power
AC 380 V(±10%),50/60HZ ,3 phase 5 Lines
Features:
1.Reasonable structural design, rapid cooling rate.
2. Imported refrigeration system, internal with SUS#304 high temperature resistant stainless steel.
3. More than 30% energy saving is achieved.
4. The test specimen can be easily observed via observation window,
5. Easy to Operate, install and maintain.
6.ational Construction and fast cooling rate
7.Frequency conversion control of wind speed.
8.Adopts international brand of imported parts for cooling system to improve operation reliability
9.Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
10.Standards Implemented and met
11.GB10592-89 Technical requirements for high and low temperature test chamber
12.GB2423.1-1989 Low temperature test
13.GB2423.2-1989 High temperature test mode

Standard:
GB/Bb T2423.2-89 high temperature test method GB2423.1-89 test A: low temperature test method 6
Ab IEC60068-2-1 low temperature test method GJB150.4-1986 test at low temperature
EIA - 364-59 test at low temperature IEC60068-2-38 temperature cycle
IEC60068-2-78 constant temperature IEC60068-2-30 temperature cycle
EIA - 364-31C temp resistance GB/T2423.3 constant heat test method
Functions:
1. The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.
2. Available in Chinese and English LCD touch screen, easy operation and program.
3. Programmable temperature humidity test chamber is able to display the relative date and information of the whole operating system in running mode, graphic display. Precautions, maintenance and troubleshooting appear on the screen instantly.
4. The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
5. The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operating life of the machine and decrease the failure rate.
6. Water Supply adopts automatic watering System, Circulating water supply together with water filter.
More Pictures for reference:
Big Size Temperature and Humidity Environmental Test Chamber
Big Size Temperature and Humidity Environmental Test Chamber
Packing & Delivery
Big Size Temperature and Humidity Environmental Test Chamber
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Big Size Temperature and Humidity Environmental Test Chamber
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Big Size Temperature and Humidity Environmental Test Chamber is our star products , and we had obtained the CE certification for this machine .
