Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine
Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine
Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine
Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine
Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine
Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine
Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine
Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine
Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine
Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine
Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine
Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine
Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
Model Number :
OA-408
MOQ :
1
Internal dimension :
W600xH850xD800mm
Temperature range :
RT+15C~+65C
Humidity range :
20%R.H.~98%R.H.
Temperature uniformity :
+/-2.0C
Interior material :
SUS 304 stainless steel
Cooling system :
Wind cooling
Ozone concentration :
1~1000pphm, adjustable
Ozone concentration deviation :
≤10%
Ozone generator type :
Silent discharge tube
External material :
Stainless steel or painted cold-rolled steel
Insulation material :
Polyurethane rigid foam / superfine glass fiber cotton
Temperature control accuracy :
±0.5ºC
Temperature analytic accuracy :
0.1ºC
Power supply :
AC 220V
Security protection :
Leakage, short circuit, over-current
Description

Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine

Application for Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine :
touching type ozone climate test chamber is used to test the ozone environment, the characteristics of crack-resistant rubber, ozone resistance testing machine, can control and adjust the concentration of ozone environment, to determine the anti-ozone properties of the specimen. The equipment can comply with the standard: JISK6259 ASTM1149 ISO1431 GB/TTB62 GB/T13642

Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine

ozone climate test chamber technical parameters:

Model OA-80 OA-408 OA-800

Internal Dimensions

WxHxD (mm)

400x500x400 600x850x800 1000x1000x800

Internal Dimensions

WxHxD (mm)

950x1650x950 1200x1950x1350 1600x2000x1450
Temperature Range RT+10ºC~+65ºC
Control Accuracy
of Temperature 		±0.5ºC
Distribution Uniformity
of Temperature 		±2.0ºC
Analytic Accuracy
of temperature 		0.1ºC
Ozone Concentration 1~1000pphm, adjustable
Deviation of Ozone Concentration ≤10%
Ozone Generator Silent discharge tube type
Internal and External Material

Material of the inner box is SUS 304# stainless steel, of the outer box is

stainless steel or see cold-rolled steel with paint coated.

Insulation Material Polyurethane rigid foam / superfine glass fiber cotton
Security Leakage, short circuit, over-current protection
Power AC 220V

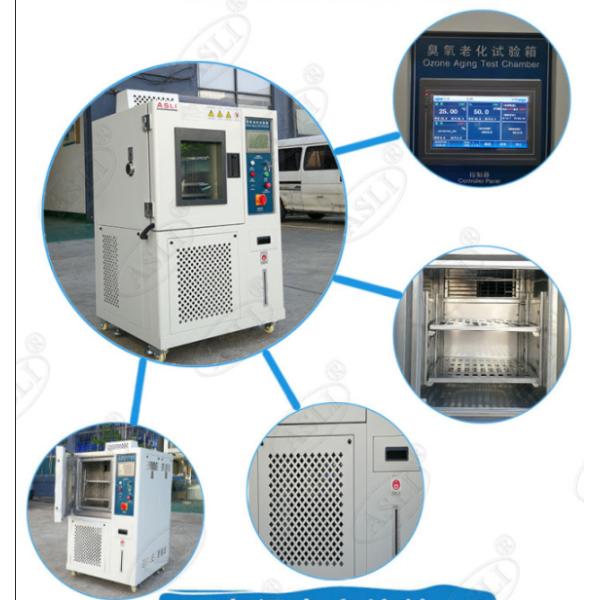

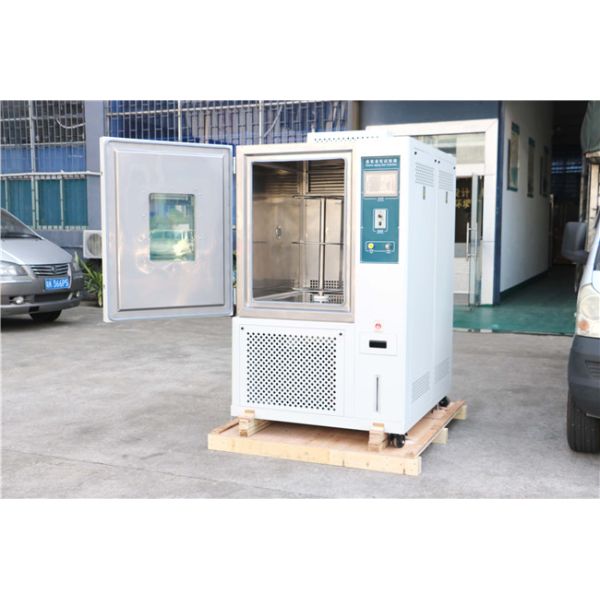

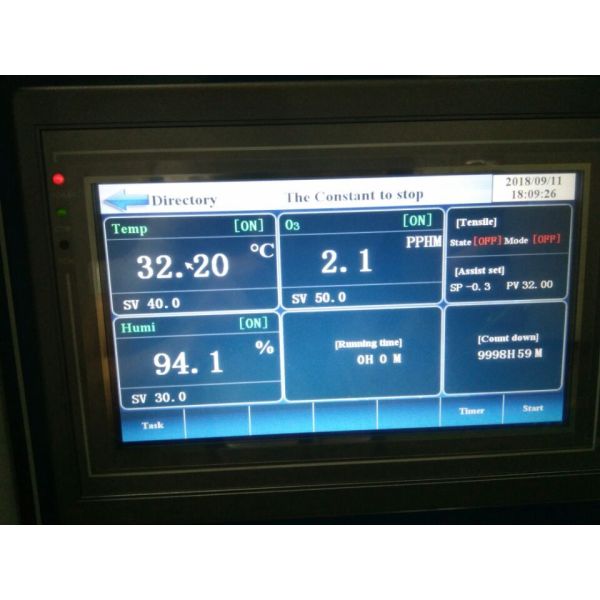

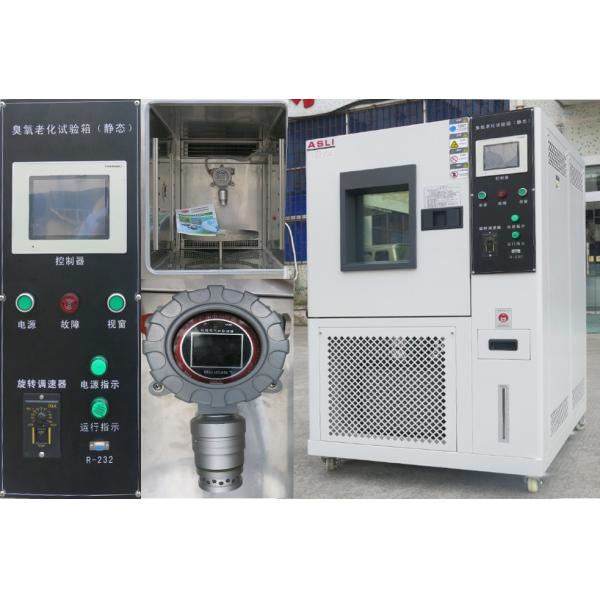

Pictures for reference:

Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing MachineOzone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine

Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine

Relative Product:

Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine Ozone Aging Test Chamber Rubber Plastic Wire Ozone Resistance Tester Accelerated Aging Testing Machine
Temperature Humidity Chamber High Frequency Vibration Tester Drop Test Machine

Please feel free to contact me if any doubt or needs about Ozone Sterilization Aging Ozone Test Chamber for Textile.
