Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
Model Number :
RT-1000A
Certification :
CE,Third party calibration qualification report
MOQ :
1
Internal dimension :
W1000×H1000×D1000 mm
External dimension :
W1600×H1950×D1450 mm
Weight :
400kg
Air switch :
63A
Power supply :
AC220V 50/60HZ
Volume :
1000 L
Water temperature :
Environmental temperature or (RT+15 Deg C) ~ 70 Deg C (Optional)
IPX1 droplet amount :
1.0+0.5mm/min
IPX1 test duration :
10min
IPX2 droplet amount :
3.0+0.5mm/min
IPX2 test duration :
4 * 2.5min, 10min
IPX3 water flow :
1.12 ~ 2.50L/min
IPX4 water flow :
1.61 ~ 2.50L/min
IPX5 water flow :
12.5L/min
IPX6 water flow :
100L/min
Description
Water Proof Watch Pressure Tester

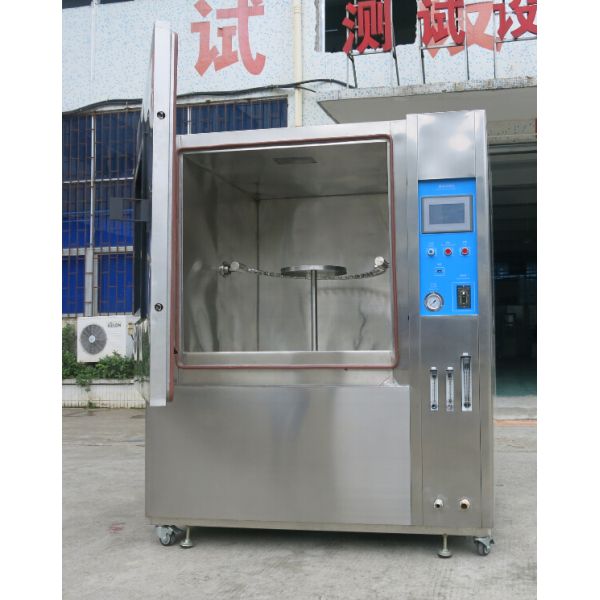

The Water Resistance Chamber is designed to test the waterproof effectiveness of electronic devices, automotive components, and communication equipment. It simulates rainfall conditions to evaluate waterproof performance and classify performance degradation.
Main Technical Parameters
Model RT-1000A
Specimens Flammable, explosive, or volatile material samples. Prohibited for corrosive substances, biological tests, and strong electromagnetic emission sources.
Volume 1000 L
Inner Dimension W1000×H1000×D1000 mm
External Dimension W1600×H1950×D1450 mm
Weight 400kg
Air Switch 63A
Power Supply AC220V 50/60HZ Single Phase Three Lines 6 m² Copper Wire
Performance Specification
Using Environmental Temperature: 5~30°C, Humidity <85% R.H. (Without load)
Water Temperature 1. Environmental temperature (uncontrolled)
2. Optional: (RT+15°C) ~ 70°C
IPX Testing Specifications
  • IPX1: Vertical drop water test - 1r/min rotation, ≤200mm distance, 1.0±0.5mm/min droplets, 10min duration
  • IPX2: 15° tilt drop test - four positions tested, 3.0±0.5mm/min droplets, 10min total duration

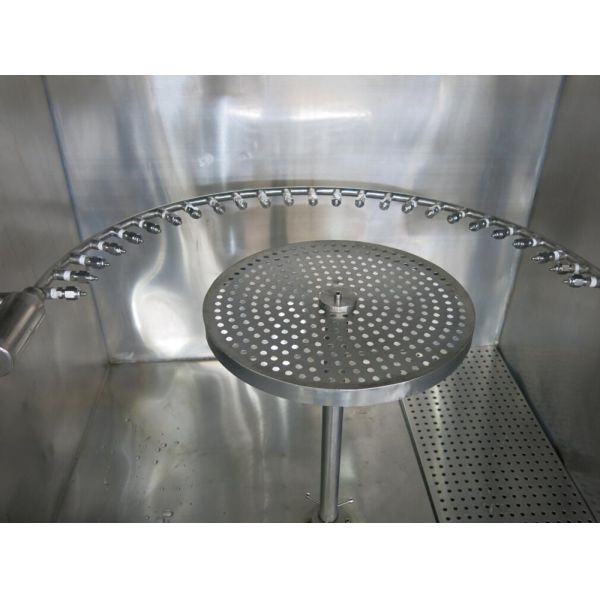

  • IPX3: 400mm swinging radius, 1.12-2.50L/min flow, 16 holes (0.4mm), 10min test with 90° rotation at 5min
  • IPX4: 400mm swing pipe, 1.61-2.50L/min flow, 23 holes (0.4mm)
  • IPX5: 12.5L/min flow, 6.3mm holes, ≥3min test
  • IPX6: 100L/min flow, 12.5mm holes, ≥3min test
Compliance Standards
JIS-D0203, IEC-60529, GB/T 2423.38 2006, IEC 60068-2.18:2000, GB4208-2008, IEC60529-2001
Water Proof Watch Pressure Tester Water Proof Watch Pressure Tester
For any questions or requirements regarding the Water Proof Watch Pressure Tester, please don't hesitate to contact us.
