ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device
ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device
ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device
ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device
ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device
ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device
ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device
ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device
ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device
ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device
ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device
ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device
Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
Model Number :
SH-90
MOQ :
1
Internal Dimension :
W900xH500xD600mm
External Dimension :
W1400xH950xD1200mm
Volume :
270 Liters
Saline Test :
NSS ACSS
Spray Volume :
1.0~2.0ml /80cm2 /h
Spray Method :
Programmable Spraying
Material :
PVC board
Lab Temperature :
35±1 °C (NSS ACSS), 50±1 °C (CASS)
Pressure Bucket Temperature :
47±1 °C (NSS ACSS), 63±1 °C (CASS)
Saline Capacity :
25L
Saline Concentration :
5% NaCl or 5% NaCl + 0.26g CuCl2H2O per Liter
Compressed Air Pressure :
1.0~6.0 Kgf
Power :
AC220V 1 ph 3 lines 15A
Weight :
80 Kg
Spray Form :
Continuous or Programmable Spraying
Description

ISO 9227 Industrial Dry And Wet Composite Salt Water Spray Test Device

Product Description

Standard Compliance- salt spray test chamber

ASTM B117 Salt Spray(Fog) Test

ASTN D1654 Standard Test Method For Evaluation of Painted or Coated Specimens Subjected to Corrosive Environments

ASTM D3359 Standard Test Methods for Measuring Adhesion By Tape Test

JIS H8502 Methods of Corrosion Resistance Test For Metallic Coatings

IEC 60068-2-11-1981 Basic Environmental Testing Procedures Part 2: Tests, Test Ka: Salt Mist

IEC6802-52 1996 Environmental Testing-Part 2: Tests-Test Kb: Salt mist, cyclic (Sodium Chloride Solution)

GJB 150.11A-2009 Laboratory Environmental Test Methods For Military Material- Part 11: Salt Fog Test

CNS 4159 CASS Test-Copper Accelerated Acetic Acetic Acid Salt Spray (Fog) Test

CNS 4158 Method of Salt Spray Fog Test for Surface Finishing

MIL-STD810F Environmental Engineering Considerations and Laboratory Tests

MIL-STD 202 Test Method Standard: Electronic and Electrical Component Parts

MIL-STD 883 Test Method Standard: Microcircuits

MIL-STD 1344 Test Methods For Electrical Connector

Lab Salt Spray Corrosion Test Chamber is used to create and maintain the salt spray (fog) test environment, and test the anti-corosion quality of the materials surfaces.

The Salt Spray (Fog) Testing is a specialized test used to evaluate the resistance to corrosion of paints, coatings, and metal structures as well as effects on electrical systems. Our chambers provide exposure to a salt intensive atmosphere at temperatures matching the proper specification.

ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device

Technical Parameters

Model

SH-60

SH-90

SH-120

SH-160

SH-200

Internal Dimension WxHxD (mm)

600x400x450

900x500x600

1200x500x800

1600x500x800

2000x500x800

External Dimension WxHxD (mm)

1100x600x1200

1400x950x1200

1900x1300x1400

2300x1300x1400

2700x1500x1500

Lab Temperature

Saline test (NSS ACSS) 35±1 °C ;Corrosion Test (CASS)50±1 °C

Pressure Bucket Temperature

Saline test method (NSS ACSS) 47±1 °C / Corrosion Test (CASS)63±1 °C

Lab Capacity(L)

108

270

480

640

800

Saline Capacity(L)

15

25

40

40

40

Saline Concentration

5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O

Compressed Air Pressure(Kgf)

1.0~6.0

Spray Volume

1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)

Spray Form

Continuous Spraying or Programmable Spraying

Power

AC220V 1 ph 3 lines15A

Weight(Kg)

65

80

120

160

200

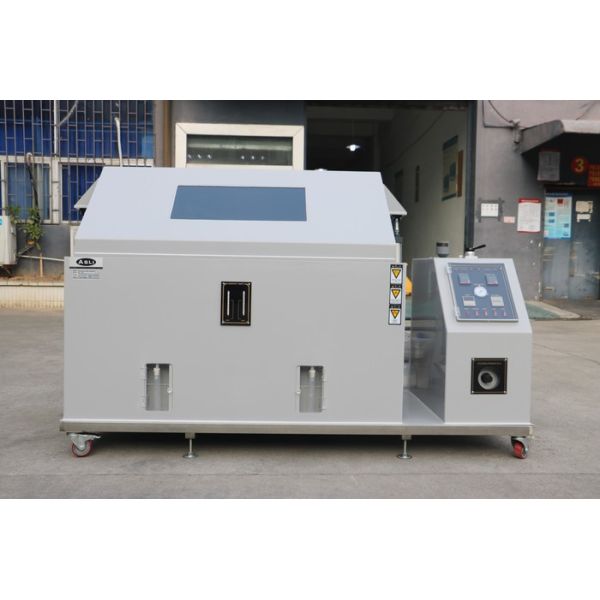

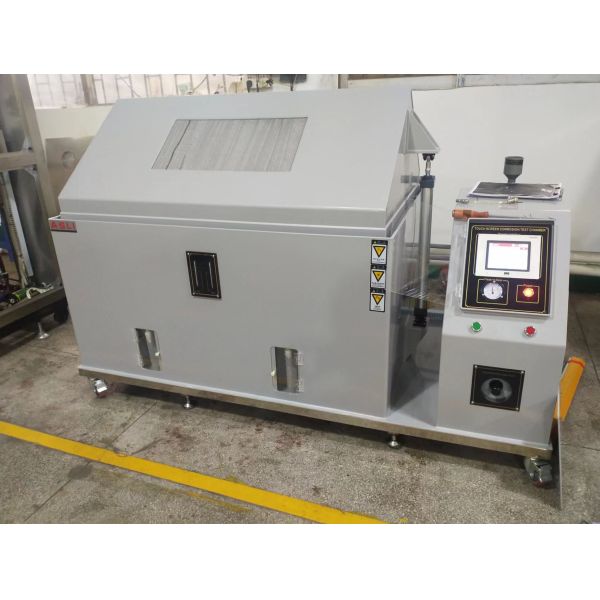

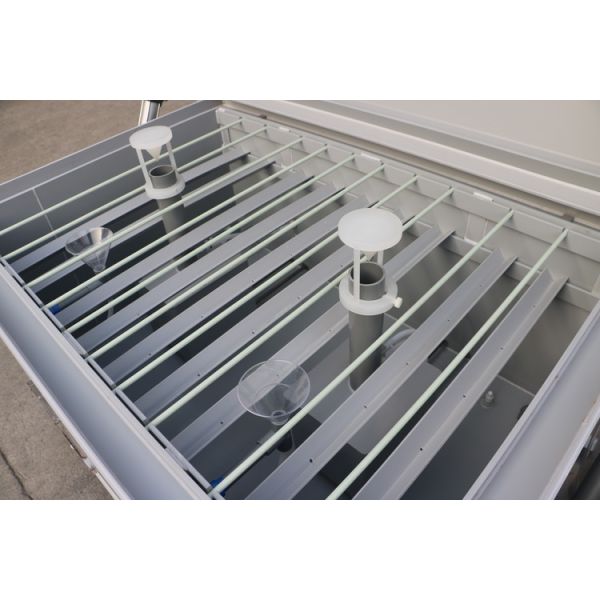

Product Pictures

ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test DeviceISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test DeviceISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device

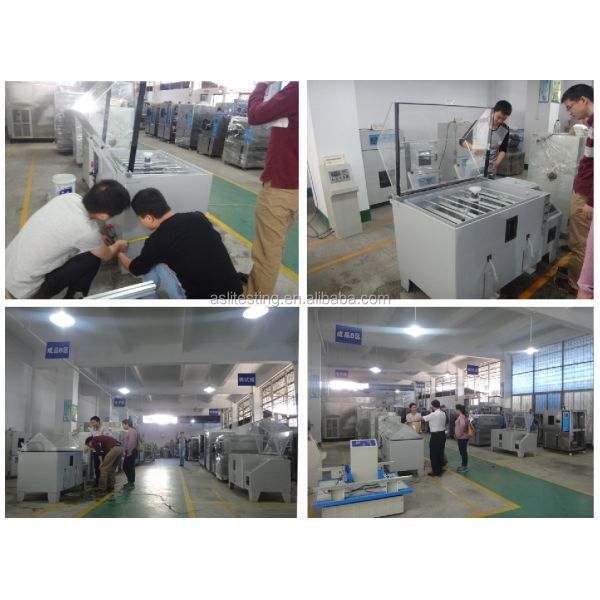

Customers' Visit ASLI Factory:

ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device

Packaging & Shipping

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device

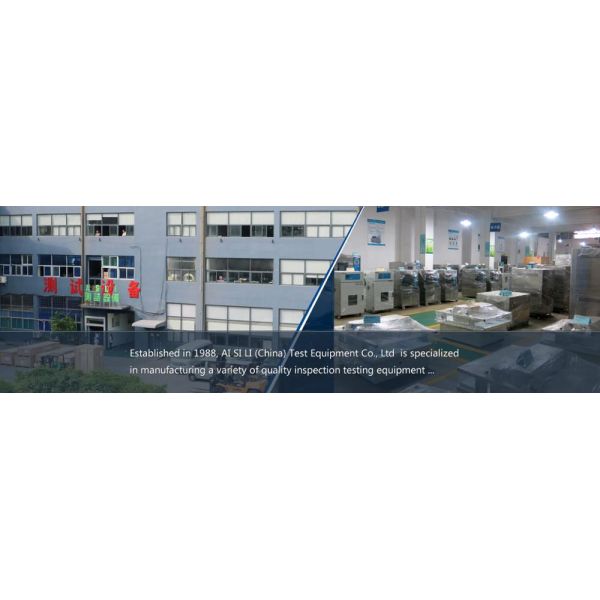

Company Information

Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. metal parts salt spray corrosion resistance tester is our star products , and we had obtained the CE certification for this machine .

ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device

ASLi main test equipments:

Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc

Certifiation:

ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device

Customers' Reference List:

ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device

1. Are your company a trading one or a factory?

Factory ,28 years focusing on test instruments field,4 years exporting experience.

2. After an order is placed, when to deliver?

Generally about 20 days, If we have finished products, we can arrange shipment within 3 days.

Please be aware that our production lead times depend on specific items and item quantities.

3. What about the warranty with after - sales services?

12 months warranty.

After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Relative Product:

ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device ISO 9227 Industrial Dry and Wet Composite Salt Water Spray Test Device
Temperature Humidity Test Chamber High Temperature Oven High Frequency Vibration Tester
If you need more information about ISO 9227 Industrial Dry And Wet Composite Salt Water Spray Test Device , please feel free to send your inquiry.
