Specifications
Brand Name :
ASLI
Place of Origin :
Guangdong, China
Model Number :
RT-1000-A
MOQ :
1
Power Supply :
AC220V
IP Rate :
IPX1 X2 X3 X4 X5 X6 X9
Inner Material :
SUS304 stainless steel
Inner Material Thickness :
1.0mm±0.05
Outer Material :
Galvanized steel plate
Internal Dimensions :
1000x1000x1000 mm
External Dimensions :
1600x1900x1400 mm
JIS Test Flow :
1.8L/Min~3.9L/Min
JIS Test Pressure :
0.1kgf/cm2~0.3 kgf/cm2
Drop Test Speed :
1~1.5mm/Min Adjustable
Rain Swing Test :
RT~±80°C
Rain Swing Flow :
0.07L/min per Nozzle
Water Spray Flow :
12.5L/min ~100L/Min
High Pressure Jet :
80Kgf~100Kgf
Rotating Speed :
4~20 RPM adjustable
Description
Spray Rating Testing Equipment Textile Lab Equipment
Our spray rating testing equipment is designed for precise evaluation of materials' resistance to water penetration in laboratory conditions.
Key Characteristics
  • Double-casing construction with SUS304 stainless steel inner wall (1.0mm±0.05 thickness) and galvanized steel outer casing
  • Sloped bottom design prevents water accumulation and includes filtration system
  • Large viewing window with interior lighting for clear observation
  • Water circulation system for efficient operation and cost savings
  • Available in standard and custom configurations for various sample sizes
Applications
Ideal for testing plastics, rubber, paints, coatings, textiles, auto parts, packaging materials, building materials, and electrical components. Provides critical data for research, product development, and quality control.
Spray Rating Testing Equipment Textile Lab Equipment
Technical Specifications
Model RT-1000A
Test Standards JIS, ISO, IEC60529, DIN40050, GB2423, GB4208
Internal Dimensions (W×H×D) 1000×1000×1000 mm
External Dimensions (W×H×D) 1600×1900×1400 mm
JIS Test Parameters Flow: 1.8-3.9 L/min
Pressure: 0.1-0.3 kgf/cm²
Drop Test 1-1.5 mm/min adjustable
IPx1/IPx2 compliant

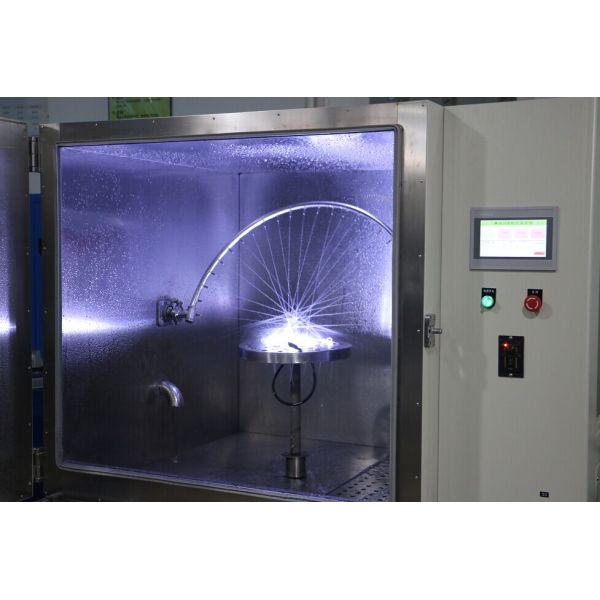

Rain/Swing Pipe Test RT~±80°C swing
0.07 L/min per nozzle
IPx3/IPx4 compliant
Water Spray Test 2.5-3m jet
12.5-100 L/min flow
High Pressure Jet Test 80-100 kgf pressure
14-16 L/min flow
IPx9K compliant
Rotating Plate Speed 4-20 RPM adjustable
Detailed Features
Spray Rating Testing Equipment Textile Lab Equipment
Spray Rating Testing Equipment Textile Lab Equipment
Spray Rating Testing Equipment Textile Lab Equipment
Spray Rating Testing Equipment Textile Lab Equipment
Spray Rating Testing Equipment Textile Lab Equipment
Spray Rating Testing Equipment Textile Lab Equipment
Temperature Humidity Chamber
Spray Rating Testing Equipment Textile Lab Equipment

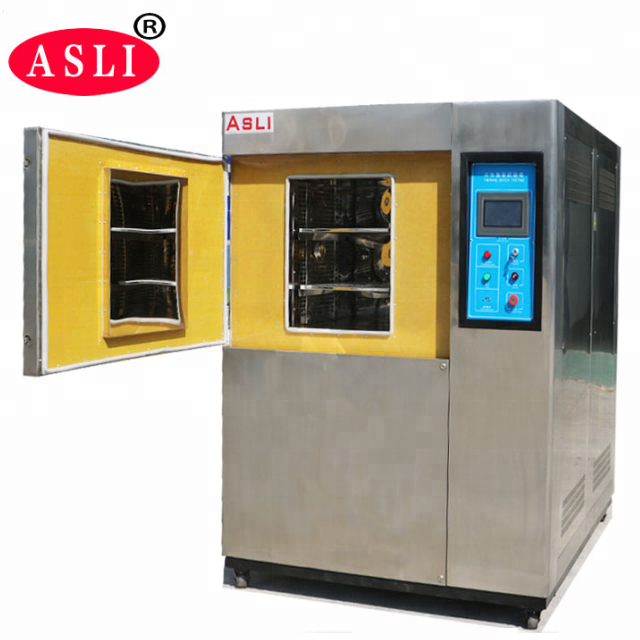

Thermal Shock Machine
Spray Rating Testing Equipment Textile Lab Equipment

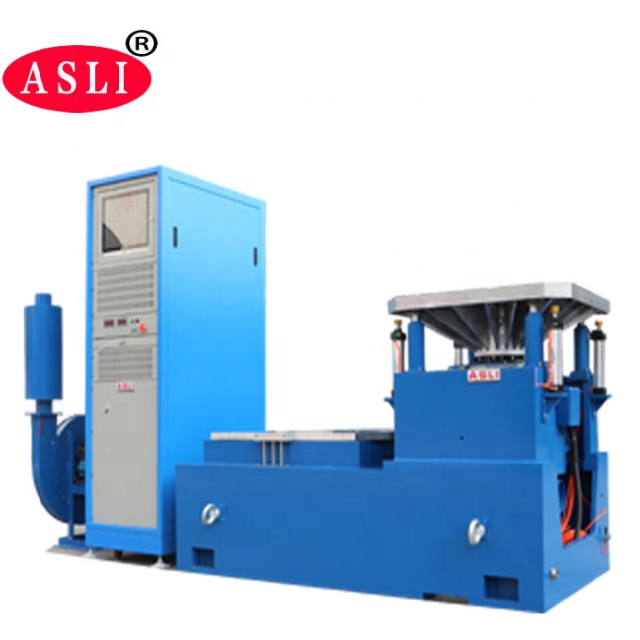

High Frequency Vibration Shaker
For any questions about our spray rating testing equipment or to request a quotation, please contact our technical team.
