Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
Specifications
Brand Name :
ASLi
Place of Origin :
Guangdong, China
Model Number :
RT Seires
MOQ :
1
Internal Dimension :
1000x1000x1000 mm
External Dimension :
1600x1900x1400 mm
JIS Test Flow :
1.8L/Min to 3.9L/Min (RT-1000A), 24.5L/Min to 39.2L/Min (RT-1000B)
JIS Test Pressure :
0.1kgf/cm2 to 0.3 kgf/cm2 (RT-1000A), 1kgf/cm2 to 3 kgf/cm2 (RT-1000B)
Drop Test Speed :
1 to 1.5mm/Min (IPX1, IPX2), 3 to 3.5mm/Min (IPX3, IPX4)
Rain Swing Angle :
RT to ±80°C
Water Spray Flow :
0.07L/min per Nozzle (RT-1000B), 12.5L/min to 100L/Min (RT-1000A)
High Pressure Jet :
80Kgf to 100Kgf (IPX9K)
High Pressure Flow :
14 to 16L/Min
Rotating Plate Speed :
4 to 20 RPM
Temperature Range :
RT to 85°C
Interior Material :
Steel plates
Exterior Material :
#304 stainless steel
Nozzle Material :
Titanium alloy
Water Pressure :
Adjustable
Description

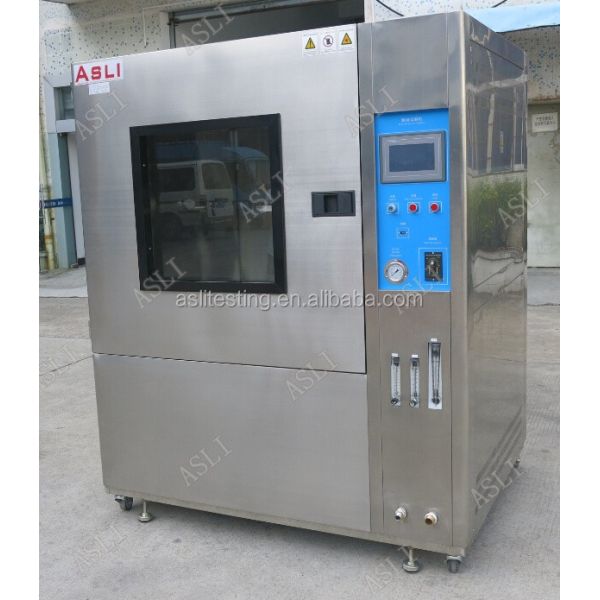

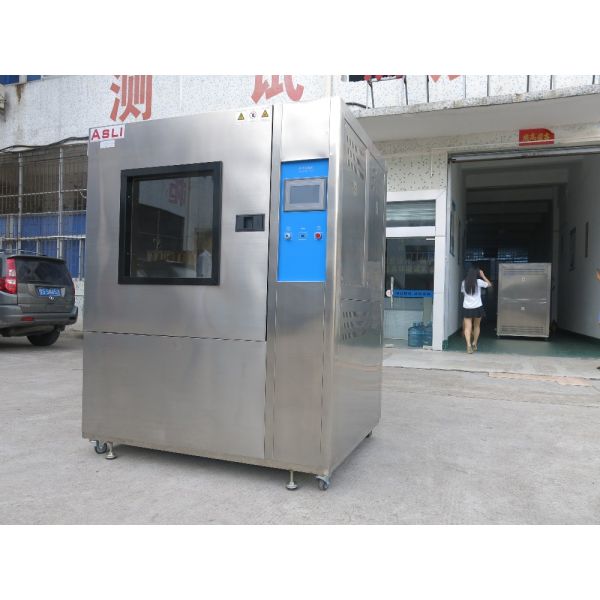

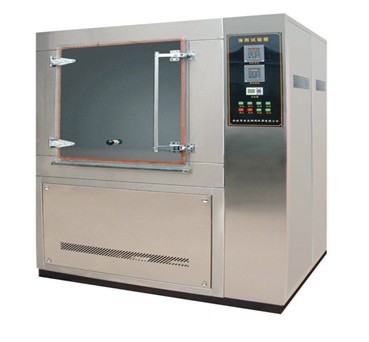

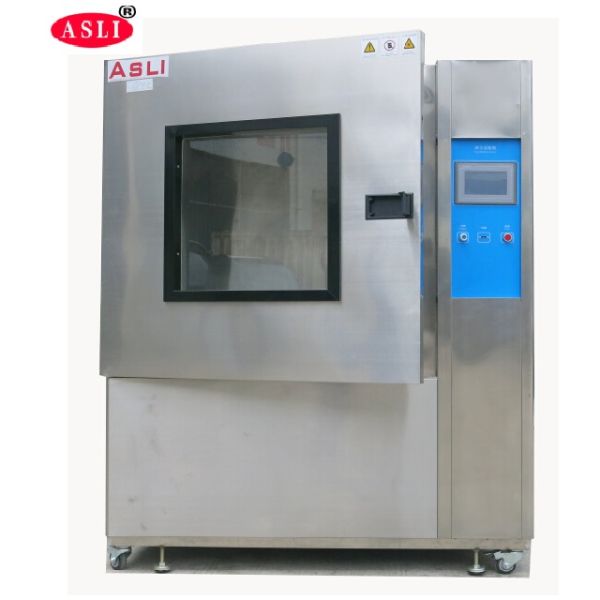

Laptop Computer LCD Screen Rain Spray Test Chamber Tester
The Laptop Computer LCD Screen Rain Spray Test Chamber Tester evaluates the waterproof effectiveness of electronic enclosures, automotive components, and communication devices. This equipment simulates rainfall conditions to assess waterproof performance and classify any performance degradation.
Applications

Designed for testing the waterproof capabilities of laptop LCD screens and other electronic enclosures in automotive and communication industries.

Key Features
  • Adjustable water pressure and flow rate
  • Specialized sprinkler system for stable rain quantity and pressure control
  • Temperature range from RT to 85°C (Model RT-1000B)
  • Steel plate interior workspace with #304 stainless steel exterior
Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
Technical Parameters
Model RT-1000A RT-1000B
Internal Dimension WxHxD (mm) 1000x1000x1000
External Dimension WxHxD (mm) 1600x1900x1400
JIS Test Flow: 1.8L/Min to 3.9L/Min
Pressure: 0.1kgf/cm² to 0.3 kgf/cm²		 Flow: 24.5L/Min to 39.2L/Min
Pressure: 1kgf/cm² to 3 kgf/cm²
Drop Test 1 to 1.5mm/Min adjustable
IPx1 IPx2 drop speed		 3 to 3.5mm/Min adjustable
Drop speed: 3 to 3.5mm/Min

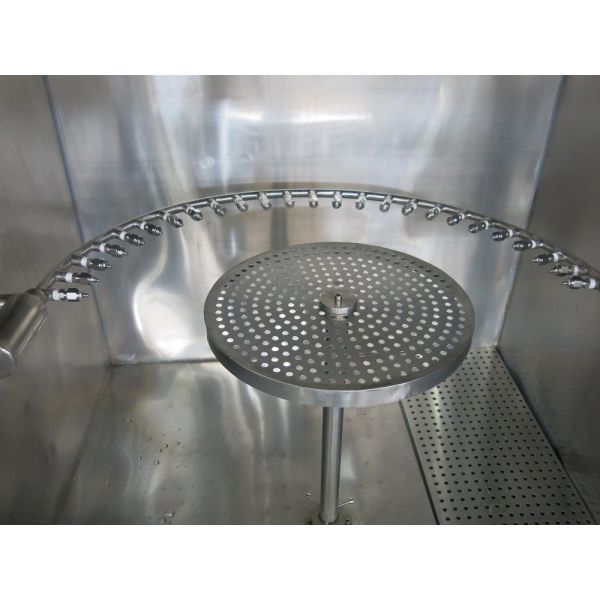

Rain of Pipe-Swing Test IPx3 IPx4 swing pipe: RT to ±80°C Flow: 0.07L/min per Nozzle
Water Spray Test IPx3 IPx4 jet: 2.5m to 3m Flow: 12.5L/min to 100L/Min
High Pressure Jet Test 80Kgf to 100Kgf IPx9K pressure Flow: 14 to 16L/Min
Rotating Speed of Rotating-Plate 4 to 20 RPM adjustable
Product Images
Laptop Computer Lcd Screen Rain Spray Test Chamber Tester Laptop Computer Lcd Screen Rain Spray Test Chamber Tester Laptop Computer Lcd Screen Rain Spray Test Chamber Tester Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
