UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
Specifications
Brand Name :
ASLI
Place of Origin :
China
Model Number :
TH SERIES
MOQ :
1
Test Hole :
50mm or 100mm
Water Tank :
25L
Viewing Window :
250*300mm
Control Panel :
LCD touch screen
Compressor Brand :
Bitzer
Internal Dimension :
600x850x800mm, 1000x1000x800mm, 1000x1000x1000mm
External Dimension :
1200x1950x1350mm, 1600x2000x1450mm, 1600x2100x1450mm
Temperature Range :
Low: -70°C to 150°C, High: 150°C
Humidity Range :
20%~98% R.H. (optional 10%~98% or 5%~98%)
Control Accuracy :
±0.5°C; ±2.5% R.H.
Temperature Velocity :
Rising: 0.1~3.0°C/min; Falling: 0.1~1.0°C/min (optional 1.5°C/min)
Power Supply :
AC380V 3 phase 5 lines, 50/60HZ
Data Storage :
USB Flash Memory
RS485/232 Output :
Yes
Adjustable Shelf :
Yes
Description
UL1703 Climate Test Chambers Solar PV Panel Module Tester
Thermal Cycling Humidity Freeze Cycle Test
Product Specifications
Model TH-408(A~F) TH-800(A~F) TH-1000(A~F)
Internal Dimension W×H×D (mm) 600×850×800 1000×1000×800 1000×1000×1000
External Dimension W×H×D (mm) 1200×1950×1350 1600×2000×1450 1600×2100×1450
Temperature Range Low Temperature (A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C)
High Temperature: 150°C
Humidity Range 20%~98% R.H. (10%-98% R.H. / 5%-98% R.H optional, requires Dehumidifier)
Control Accuracy ±0.5°C; ±2.5% R.H.
Temperature Rising/Falling Velocity Rising: 0.1~3.0°C/min
Falling: 0.1~1.0°C/min (Min.1.5°C/min optional)
Optional Accessories Inner door with operation hole, Recorder, Water Purifier, Dehumidifier
Power AC380V 3 phase 5 lines, 50/60HZ
Key Features
  • LCD Touch Screen (TATO TT5166)
  • PID Control of Temperature and Humidity
  • Programmable Temperature and Humidity (100 patterns, 999 segments each)
  • Built-in Humidity Sensor
  • Thermostats for overheat protection
  • 50mm diameter Test Hole
  • USB Flash Memory for data storage
  • Comprehensive protection systems (phase, overheat, over current)
  • Water Tank with level detector
  • Adjustable Shelf
  • RS485/232 output to computer
  • Window Software included
  • Optional remote fault notification
  • Viewing Window
  • Optional anti-condensation technology
  • Three-color LED indicator lamp for easy status monitoring
Product Images

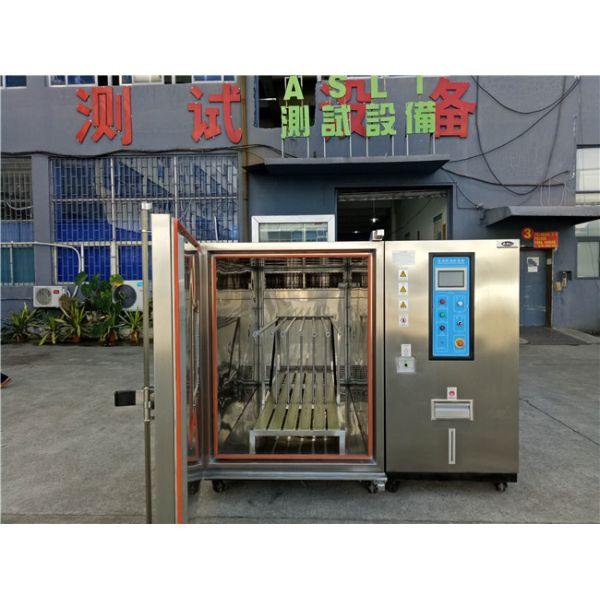

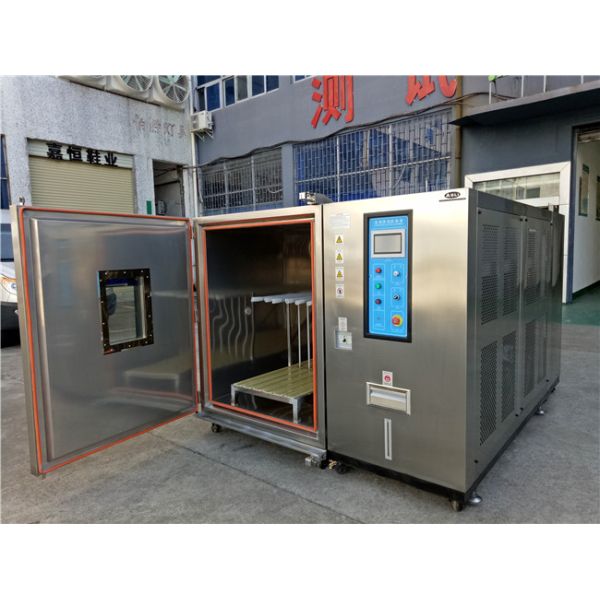

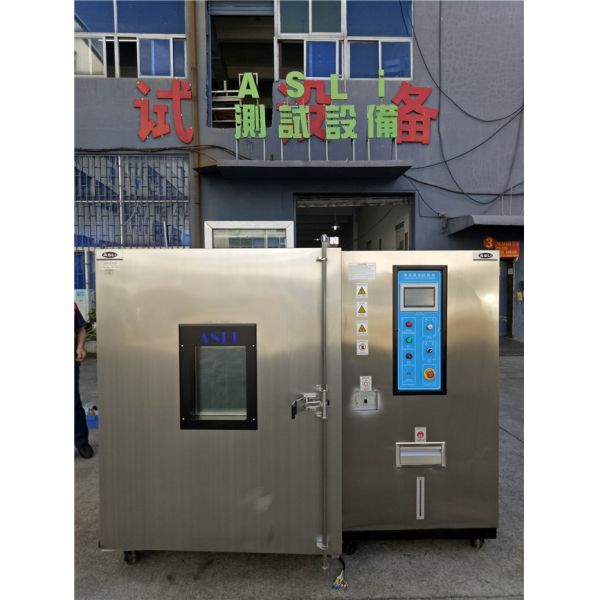

UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
Packaging & Shipping

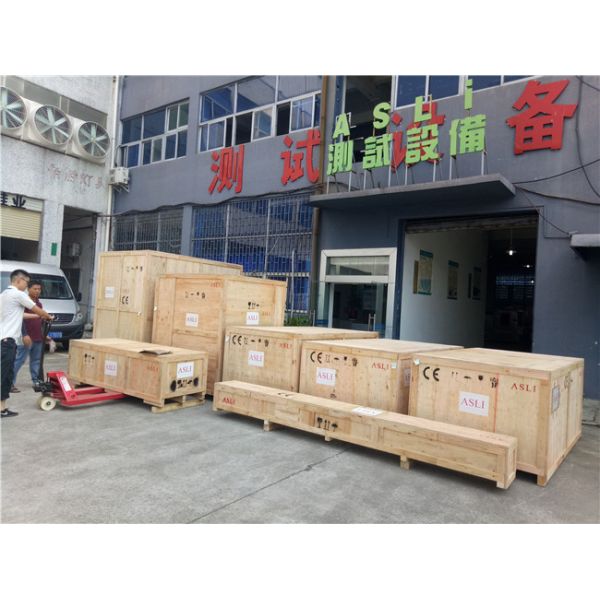

Climate test chamber packaging includes:

  • PP film protective layer
  • 10mm foam padding between machine and case
  • Standard export plywood outer case
UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
Company Information

ASLi is a professional testing equipment manufacturer with 25 years of experience specializing in environmental testing equipment and mechanical vibration/shock testing machines. Our HAST Un-Saturated Steam Chamber is CE certified.

UL1703 Climate Test Chambers Solar PV Panel Module Tester, Thermal Cycling Humidity Freeze Cycle Test
