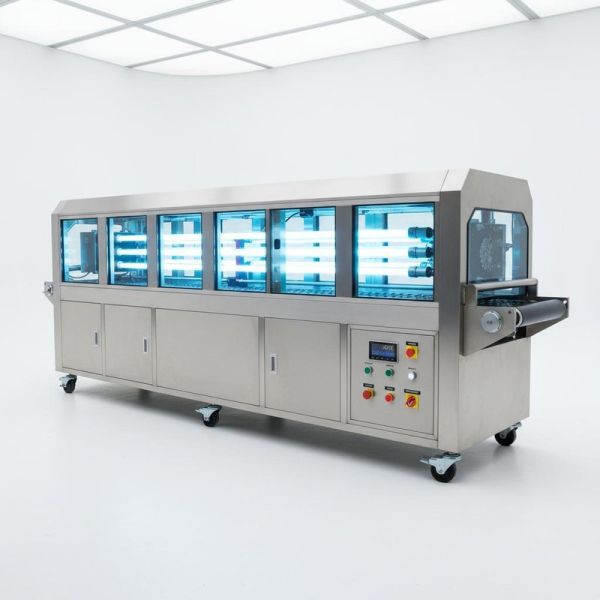

High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
Specifications
Brand Name :
OSMANUV
Model Number :
OSM-GH-600
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
30~45 Days
Packaging Details :
Wooden Box
Dryer Type :
UV drying
Speed :
0-15m/min
Working Wide :
300 * 350 mm
Power Source :
Electricity
Coating Material :
UV Coating
Machine Color :
customerized
Plate Type :
UV curing machine
Feature :
Energy saving
Description
High-Intensity UV Mercury Curing Tunnel for High-Gloss Oil-Based Coatings
Production Line Composition
This system is a standard in-line curing station, easily integrated into automated coating lines:
  • Infeed Conveyor Section: Synchronized belt or roller conveyor
  • UV Curing Chamber: Housing containing high-intensity medium-pressure mercury UV lamp arrays, optimized reflectors, and exhaust system
  • Outfeed Conveyor Section
  • Power & Control Cabinet: Central unit housing lamp power supplies (ballasts), cooling system controls, and PLC
  • Operator Interface: Touchscreen HMI for system control and monitoring
Product Overview
This High-Intensity UV Mercury Curing Tunnel is engineered specifically for the complete and rapid curing of oil-based coatings, varnishes, and inks on flat substrates. Utilizing a broad-spectrum medium-pressure mercury lamp, it delivers intense UV energy across a wide range (including 365nm, 385nm, 254nm), ensuring deep through-cure and excellent surface hardness for high-gloss finishes. Its robust design guarantees reliable, continuous operation in industrial painting and coating environments.
Technical Specifications
Category Parameter Specification
Core UV Source Lamp Type Medium-Pressure Mercury Lamp (standard)
UV Wavelength Broad spectrum: 200nm-450nm (peaks at 365nm, 385nm)
Lamp Power Customizable (e.g., 120W/cm, 160W/cm, 200W/cm per lamp)
Number of Lamps Customizable (typically 2, 3, or 4 lamps for balanced curing)
Curing Performance Effective Curing Width Customizable (Standard: 600mm, 1000mm, 1300mm)
Conveyor Speed Adjustable, typically 2-25 meters/minute
UV Intensity at Surface Up to 800+ mW/cm² (adjustable via power setting)
Physical & Utility Machine Dimensions (L×W×H) Customizable based on curing width and required dwell time
Cooling Method Forced Air Cooling (Standard) / Water-Cooling (Optional)
Power Supply 380V/220V 3-Phase, 50/60Hz (Customizable)
Control & Safety Control System PLC with 7-inch Touchscreen HMI, recipe storage
Safety Features Interlock switches, UV shielding curtains, over-temperature protection
Applications
  • Curing of high-gloss oil-based topcoats and varnishes on wooden furniture, cabinets, and flooring
  • Drying and curing of oil-based inks and coatings on metal, plastic, and composite panels
  • Final hardening of painted decorative items and industrial components
Customization Options
This UV curing system is highly customizable to meet your specific production needs:
  • Curing Width & Length: The tunnel length and lamp configuration can be customized to match your line speed and required UV dose
  • Lamp Type & Power: Options for different mercury lamp powers or hybrid (Hg+LED) systems
  • Conveyor Type: Customizable to integrate with your specific conveyor system (belt, roller, chain-on-edge)
  • Cooling & Exhaust: Enhanced cooling systems or specific exhaust designs can be customized for your factory layout
Key Features
  • Optimized for Oil-Based Coatings: The full UV spectrum ensures complete curing of photoinitiators commonly used in oil-based systems
  • High-Intensity Output: Enables fast line speeds and deep through-cure, preventing sticky surfaces
  • Excellent Gloss Development: Promotes superior surface finish and hardness for high-quality appearance
  • Robust Industrial Design: Built for 24/7 operation with reliable components and easy maintenance access
Support and Services
  • Pre-Sales Consulting: Free process evaluation and machine specification
  • Installation & Commissioning: On-site setup and process optimization by experienced engineers
  • Training & After-Sales: Comprehensive operator training, 12-month warranty, and lifetime technical support with readily available spare parts
Packing and Shipping
  • Packing: The system is securely mounted in a robust, foam-lined wooden crate for maximum protection during transit
  • Shipping: Shipped via sea or air freight worldwide. All customs documentation provided. Lead time is typically 6-8 weeks for customized models
Frequently Asked Questions
Q1: Why is a mercury lamp better than LED for some oil-based coatings?
A: Many traditional oil-based coatings are formulated with photoinitiators that respond to a broad UV spectrum. Mercury lamps provide this full spectrum (including shorter wavelengths), ensuring complete curing throughout the coating layer, which is critical for achieving ultimate hardness and chemical resistance.
Q2: How do I determine the correct conveyor speed and UV dose?
A: The required dose depends on your specific coating. We can assist with lab tests or provide guidelines. The machine allows easy adjustment of power and speed to dial in the optimal parameters for your product.
Q3: Does this machine produce a lot of heat or ozone?
A: Mercury lamps generate significant IR heat and ozone. Our standard system includes effective air cooling and an exhaust to manage heat and remove ozone, protecting both the substrate and the operating environment.
Q4: Can this system cure water-based UV coatings as well?
A: Yes, it is highly effective. The broad spectrum and high intensity are also excellent for curing water-based UV coatings, offering great versatility.
Q5: What is the lamp replacement schedule and cost?
A: Typical lamp life is 1000-1500 hours. We provide guidance on maintenance schedules and offer genuine replacement lamps at competitive prices as part of our after-sales service.
