W400mm Conveyor Mesh Width Uv Floor Curing Machine 3m/Min
W400mm Conveyor Mesh Width Uv Floor Curing Machine 3m/Min
W400mm Conveyor Mesh Width Uv Floor Curing Machine 3m/Min
W400mm Conveyor Mesh Width Uv Floor Curing Machine 3m/Min
W400mm Conveyor Mesh Width Uv Floor Curing Machine 3m/Min
W400mm Conveyor Mesh Width Uv Floor Curing Machine 3m/Min
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-UV-204A
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Delivery Time :
35-45 Working days
Payment Terms :
T/T,Western Union
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Product name :
UV curing system
Warranty :
1 Year
Power supply :
380V 50HZ
Specification :
1900mm long x 700mm wide x 1700mm high, the actual size shall prevail
Color :
Computer white
Conveyor mesh width :
400mm
Description

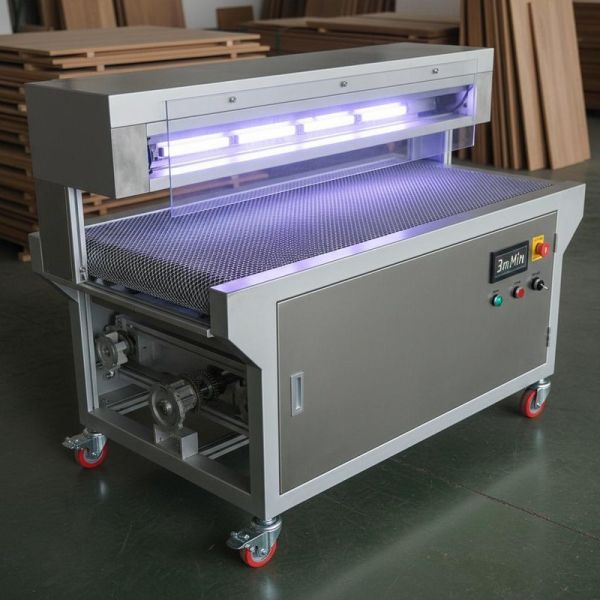

W400mm Conveyor Mesh Width UV Floor Curing Machine 3m/Min
Product Overview

This UV floor curing machine applies treating agent to shoe materials, which after drying through ultraviolet radiation, triggers polymerization reactions to increase material polarity and improve adhesion properties.

Key Features
  • Instant irradiation within seconds
  • Space-saving and energy-efficient design
  • Quality improvement with mass production capabilities and cost reduction
  • Special low-temperature design prevents EVA foaming deformation
  • Automatic alarm system for lamp failure detection
  • Standard procedure-based failure detection
  • Automatic shutdown with warning light during UV system failures
Technical Specifications
Parameter Specification
Housing Material 1.5mm cold-rolled plate, bent and welded, computer white painted finish, wear-resistant and corrosion-resistant
UV Lamp British PRIMARC imported lamps, 2KW high-pressure mercury lamps (4 lamps), individually controllable with strong/weak light conversion (50%/100%), adjustable illumination angle and height
UV Lampshade Aluminum construction with German Alanod reflector, integrated design providing over 38% UV light utilization
Conveyor Mesh Width 480mm
Conveyor Mesh Belt Stainless steel construction, resistant to high temperature and UV light, ensuring stable transportation
Entrance Height 10cm-20cm, adjustable
Mesh Belt Ground Height 750mm-800mm
Furnace Temperature 75°C
Speed 3-10m/min, stepless speed regulation
Cooling Method Motor-forced air cooling
Electrical Components Kyushu cooling fan (1.1kw), Taiwan Dongweiting TWT geared motor, Shilin contactor, CKC delay, Japanese Izumi switches
Control Panel UV lamp ammeter, lighting operation timer, over-temperature indicator, lighting completion indicator, power indicator, start/stop switches, UV light switch, strong/weak light switch
Safety Devices Leakage circuit breaker, over-temperature prevention, transmission motor overload protection, emergency switch, control line fuses - compliant with international safety standards
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards, and our products have CE certification for export.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
