2.15KW 13m/Min Instant Black Led Uv Curing Conveyor Systems
2.15KW 13m/Min Instant Black Led Uv Curing Conveyor Systems
2.15KW 13m/Min Instant Black Led Uv Curing Conveyor Systems
2.15KW 13m/Min Instant Black Led Uv Curing Conveyor Systems
2.15KW 13m/Min Instant Black Led Uv Curing Conveyor Systems
2.15KW 13m/Min Instant Black Led Uv Curing Conveyor Systems
2.15KW 13m/Min Instant Black Led Uv Curing Conveyor Systems
2.15KW 13m/Min Instant Black Led Uv Curing Conveyor Systems
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-UV-102TP
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Delivery Time :
35-45 Working days
Payment Terms :
T/T,Western Union
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Color :
Computer white / Black
Product name :
uv curing system
working speed :
1-13 m/min
working width :
300mm×350mm
Total power :
2.15KW
Dimensions :
L:1220mm W:470mm H:460mm
Description

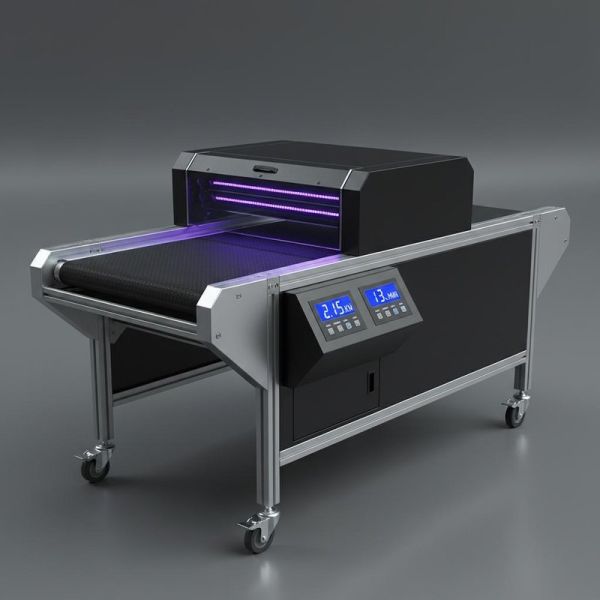

2.15KW 13m/Min Instant Black LED UV Curing Conveyor Systems
High efficiency UV curing system for fast and instant curing of UV paint, glue, ink and other materials (5-8 seconds curing time).
Product Specifications
1 High efficiency UV beam for fast curing of UV paint, glue, ink (5-8 seconds)
2 Application: Quick UV curing of all kinds of plastic parts by spraying UV paint, coating, varnish
3 Power supply: 220VAC/50HZ. Total power: 2.15KW
4 Specifications: 1220mm long × 470mm wide × 460mm high
5 UV lamp: 2 × 1KW UV lamp tubes, top-mounted, downward illumination, adjustable height and angle
6 UV lampshade: Unique aluminum reflective material (German Alanod reflector), durable with >38% UV light utilization
7 Conveyor network width: 300mm. Inlet/outlet height: 130mm
8 Lampshade: Adjustable height: 80mm
9 Transmission speed: 1-10m/min, stepless speed regulation
10 Conveyor belt: Mesh belt, high temperature resistant, UV resistant, stable conveying
11 Housing material: 1.5mm cold-rolled plates, bent and welded, spray-baked finish, wear-resistant and corrosion-resistant
12 Cooling system: Forced air cooling
13 Electrical components: CKC time delay, OMRON relay, CHNT contactor, leakage circuit breaker - compliant with international safety standards
14 Control panel: UV lamp ammeter, power indicator, power switch, UV lamp switch, time accumulator
15 Safety devices: Leakage circuit breakers, control circuit fuses - compliant with international safety standards
16 Warranty: One year for whole machine, half year for electrical parts, 800-1000 hours UV lamp warranty
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We can test your samples on our machines and provide video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully compliant with GMP & ISO standards. Our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
