25KW W1320mm Two Lamps Uv Light Curing Machine Conveyor Systems
25KW W1320mm Two Lamps Uv Light Curing Machine Conveyor Systems
25KW W1320mm Two Lamps Uv Light Curing Machine Conveyor Systems
25KW W1320mm Two Lamps Uv Light Curing Machine Conveyor Systems
25KW W1320mm Two Lamps Uv Light Curing Machine Conveyor Systems
25KW W1320mm Two Lamps Uv Light Curing Machine Conveyor Systems
25KW W1320mm Two Lamps Uv Light Curing Machine Conveyor Systems
25KW W1320mm Two Lamps Uv Light Curing Machine Conveyor Systems
Specifications
Brand Name :
Osmanuv
Model Number :
osm-uv-1320Ⅱ
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Delivery Time :
35-45 Working days
Payment Terms :
T/T,Western Union
Certification :
ISO9001 And CE
Packaging Details :
Wooden Box
Supply Ability :
According to customer's demand
Product Name :
Two-lamps UV dryer
Size :
L:1900mm×W:2230mm×H:1410mm
Color :
Computer white / green
Voltage :
50HZ
Power :
25KW
Feature :
This machina adpots UV light.so that UV coating ink fast curing.
Description

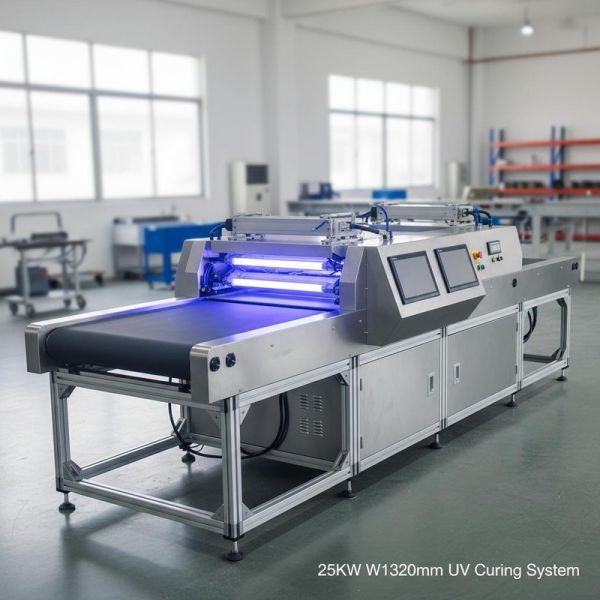

25KW W1320mm Two Lamps UV Light Curing Machine Conveyor Systems
This machine efficiently cures UV coatings in a short time through UV energy, offering high efficiency, energy savings, and environmental friendliness. Mechanization significantly improves production efficiency and operates reliably regardless of external conditions. Widely used for drying and curing various materials including wood, aluminum, acrylic, calcium silicate, PVC, and hardware accessories.
Technical Specifications
1 Mechanical dimensions 1800mm long × 2230mm wide × 1680mm high (According to actual size)
2 Effective processing size Effective width: 1320mm
3 Lamps 2 imported lamps (synthetic mercury), suitable for ultraviolet light curing of various products. Speed: 5-20m/min
4 Power supply voltage 380V 50HZ, three-phase five-wire system
5 Material Outer shell made of 1.5mm thick cold-rolled plate with liquid paint surface treatment for wear and corrosion resistance. UV section insulated with double-layer steel plates to effectively reduce cooling effect
6 Reflector Made of aluminum with integrally formed Alanod imported reflective lenses, increasing UV reflection efficiency by 38%
7 Transmission system Stainless steel string rod transmission with high temperature and UV resistance. Uses 1HP Taiwan Wanxin decelerating motor and Delta inverter control with adjustable speed from 1 to 15 meters per minute
8 Cooling system Forced air cooling with split chassis design. Light box uses independent lamp group cooling channel for sufficient heat dissipation and optimal effect
9 Light source control system Each lamp group independently controlled with strong/weak light settings (70%, 100% dimmable). Equipped with LCD usage time recorder to monitor lamp service life with reset capability
10 Electrical part Uses OMRON relay, CHNT or Tianzheng contactor, Delta inverter, Taiwan Wanxin motor, CKC brand delay time, and Japanese Izumi company switches. All components comply with CE standards
11 Safety devices Leakage circuit breaker, over-temperature protection, transformer, motor overload protection, control circuit fuse. All comply with international safety standards
12 Conveying method From left to right
13 Working height 850-900mm adjustable (height from ground to conveyor belt)
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: We can test your samples on our machines and provide video documentation. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Our production follows GMP & ISO standards and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty with lifelong maintenance and technical support.
