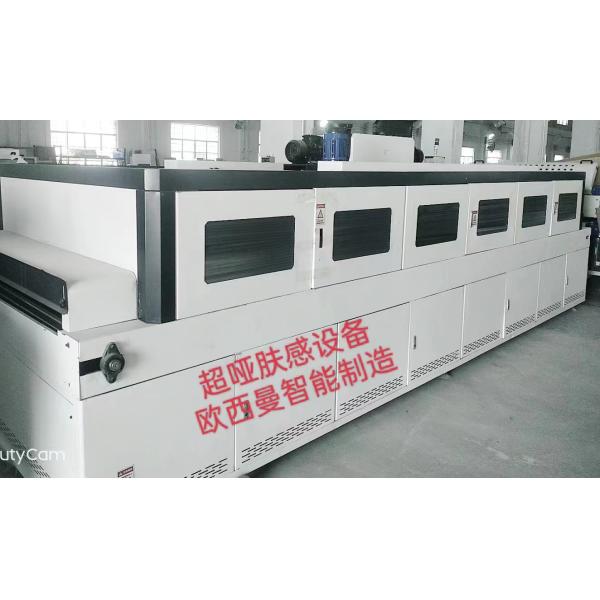

The excimer lamp surface finishing machine uses a 172nm excimer lamp (VUV) to cure ultra-thin coatings, creating a soft-touch, velvet-like, or matte surface on various substrates, including:

• Wood-based panels (MDF, particleboard)
• PVC / PET films
• Plastic sheets (ABS, PC, PMMA)
• Automotive interior parts
• Electronic housings
• Furniture and flooring materials

Unlike conventional UV curing, excimer technology achieves 100% matt finish (gloss level as low as 0-5 GU) without using matting agents. The process produces a micro-shrinkage surface that scatters light, resulting in an elegant soft-skin feel, anti-fingerprint properties, and high scratch resistance.
This system operates under inert nitrogen atmosphere to prevent oxygen inhibition, ensuring consistent curing quality. The entire line can be customized for flat panel, roll-to-roll, or 3D-shaped substrates.

We provide full customization for excimer lamp surface finishing lines:

• Working width: from 300 mm to 2200 mm
• Substrate type: flat panel, roll-to-roll, or shaped parts
• Lamp power and number of lamp units (single or dual excimer)
• Nitrogen flow rate and atmosphere control precision
• Coating method: roller coating, curtain coating, or spray
• Integration with existing UV line or printing line
• Fully automatic or semi-automatic operation
• Exhaust and ozone filtration level (for cleanroom environment)
• Custom GUI on PLC touchscreen (multiple languages)
• Explosion-proof configuration for solvent-based coatings

Packing:

• Excimer lamp units and electronics: anti-static + foam-lined plywood case
• Frame, conveyor, and chamber: wrapped with stretch film + waterproof PE cover
• Nitrogen system: separate wooden crate
• All packages labeled with handling instructions

Shipping:

• FOB / CIF / EXW by sea, air, or rail
• Express shipping for spare parts
• Delivery time: 30-60 working days (depending on customization level)
