This customizable UV102 curing system utilizes dual 1KW UV lamps to initiate photopolymerization, instantly curing UV-curable inks, adhesives, and coatings on various substrates. Available in standard lab/pilot, process-customized, and R&D flexible configurations.

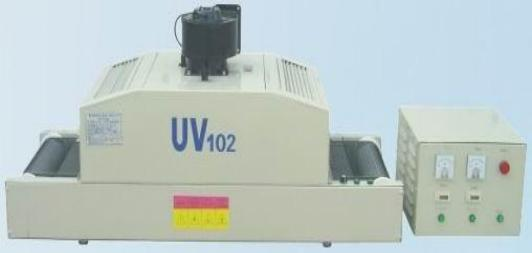

The UV102 is a compact tabletop curing system designed specifically for experimental research and small-batch production. It features a PTFE conveyor belt with stepless speed adjustment (0-10 m/min), forced air cooling to prevent substrate deformation, and independent lamp control for operational flexibility.

Working principle: UV light (365nm peak wavelength) activates photoinitiators in the coating/adhesive, generating free radicals that trigger polymerization, converting liquid materials to solid state in seconds.

• Printing industry: Screen printing, pad printing, offset - UV ink curing on paper, film, labels
• Adhesive bonding: Circuit board CHIP component bonding, glass bonding, electronic component assembly, LCD encapsulation, terminal sealing
• Coating applications: Metal plating, wood surface coating, paper UV varnishing, plastic flooring, PU synthetic leather, optical fiber coating, furniture, automotive interior parts, fishing rods, golf shafts
• Electronics manufacturing: PCB UV ink curing, component coating
• 3D printing: Post-curing of UV-curable 3D printed parts
• Decorative casting: Decorative containers, buttons, brooches, hair clips
• R&D laboratories: Material testing, formulation development, process validation

• Compact design: Tabletop footprint (1200×460×430mm) saves valuable laboratory or production space
• Dual independent lamps: Each lamp system separately controlled - flexible operation for different coating requirements
• Stepless speed control: 0-10 m/min variable conveyor speed - precise process optimization
• Forced air cooling: Prevents substrate deformation and extends lamp life
• PTFE conveyor belt: Non-stick, heat-resistant - ideal for adhesive applications
• Belt anti-offset device: Ensures smooth, continuous operation
• 365nm peak wavelength: Effective for most UV-curable formulations (inks, adhesives, coatings)
• Quick curing: Instant photopolymerization - high efficiency for lab and small-batch production
• Electrostatic painted finish: Corrosion-resistant, durable construction
• Easy integration: Can be connected with upstream/downstream equipment for production line use

This UV102 curing system is highly customizable to meet your specific production requirements:

• Lamp configuration: 1 lamp or 2 lamps - customizable based on curing speed and coating thickness
• Conveyor belt width: Standard 335mm; customizable widths available
• Conveyor belt material: PTFE (standard) or stainless steel mesh - customizable for different substrates
• Power supply: AC220V / AC110V - customizable to local electrical standards
• Dimensions: Standard 1200×460×430mm; customizable for specific workspace constraints
• Cooling system: Forced air standard; water-cooled option available for heat-sensitive applications - customizable
• Control system: Manual lamp control / PLC + HMI - customizable
• Exhaust configuration: Rear exhaust / Top exhaust - customizable
• Safety features: UV shielding, interlocks, emergency stop - customizable
• Frame finish: Custom RAL color available

• Free process consultation - send your substrate and coating for curing trials
• Custom layout design for your production floor
• On-site installation and commissioning (customizable support packages)
• Operator training program included
• Remote troubleshooting via video call or online support
• 12-month warranty on mechanical components (consumables: UV lamps excluded)
• Spare parts availability from regional warehouses (lamps, belts, cooling fans)
• Lamp replacement service
• Lifetime technical support via phone, email, or chat

• Packing: Anti-rust film + reinforced wooden case (with foam padding for sensitive components - control panel, UV lamps)
• Standard model lead time: 7-15 days after order confirmation
• Custom configuration lead time: 15-30 days (longer for custom widths or multi-lamp configurations)
• Shipping: FOB Shanghai / CIF by sea, air, or rail
• Customizable: Export crating, custom labeling, destination port documentation
