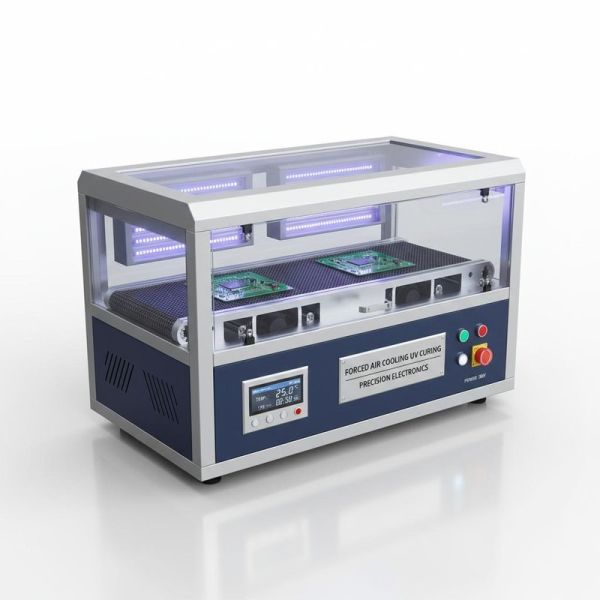

Forced Air Cooling UV Curing Machine 380V For Precision Electronic Products
Forced Air Cooling UV Curing Machine 380V For Precision Electronic Products
Forced Air Cooling UV Curing Machine 380V For Precision Electronic Products
Forced Air Cooling UV Curing Machine 380V For Precision Electronic Products
Forced Air Cooling UV Curing Machine 380V For Precision Electronic Products
Forced Air Cooling UV Curing Machine 380V For Precision Electronic Products
Specifications
Brand Name :
Osmanuv
Model Number :
UV-UVA-203
Certification :
ISO9001 And CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Delivery Time :
35-45 Working days
Packaging Details :
Wooden Box
Supply Ability :
According to customer's demand
Product name :
UV curing system
Color :
Computer white
Power supply :
380V three-phase five-wire system
Specification :
1930mm long x 650mm wide x 1650mm high
Speed :
1-10 m/min
Warranty :
1 Year
Inlet and discharge port :
10-200mm adjustable
Description
Forced Air Cooling UV Curing Machine 380V For Precision Electronic Products
Product Overview

UV Curing Machine For Precision Electronic Products Forced Air Cooling Factory 380V Three-Phase 1 meters/Min

The types and styles of UV curing machines vary depending on the products being cured, but their ultimate purpose remains the same: to cure UV paint or UV ink. The UV curing device consists of five main components: light source system, ventilation system, control system, transmission system, and cabinet.
Technical Specifications
Specification Details
Power Supply 380V three-phase five-wire system
Dimensions 1930mm long × 650mm wide × 1650mm high
Housing Material 1.5 cold-rolled plate bending and welding, painted computer color
UV Lamp 3 imported 2KW UV lamps (1 top-mounted downward, 2 side-mounted inward), UV output >90%, adjustable height and angle
UV Lampshade Professional reflective materials (Germany Alanod) increasing UV utilization by over 38%
Conveyor Belt Black conveyor belt, 450mm network width, high temperature and UV resistant
Transmission Speed 1-10 meters/minute, stepless speed regulation
Inlet/Outlet 10-200mm adjustable
Cooling Method Forced air cooling
Control & Electrical Components
  • Control Panel: Ammeter, voltmeter, UV lamp switches (3), time timer, temperature controller, governor, power switch, indicators
  • Electrical Parts: OMRON relay, CHNT contactor, CKC time delay, Japan Wazumi switch, leakage circuit breaker
  • Safety Devices: Leakage circuit breaker, phase sequence protection, temperature controller
  • Control lines and fuses comply with international safety standards
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our products comply with GMP & ISO standards and have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
