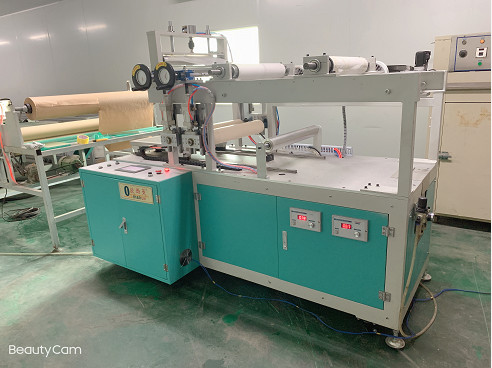

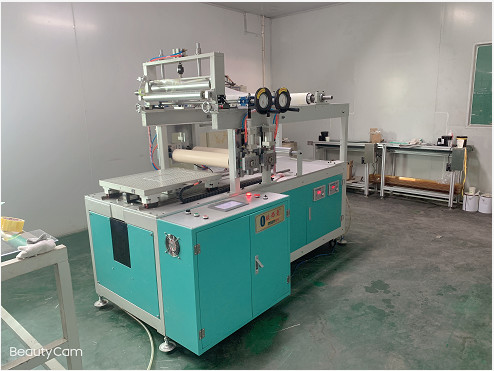

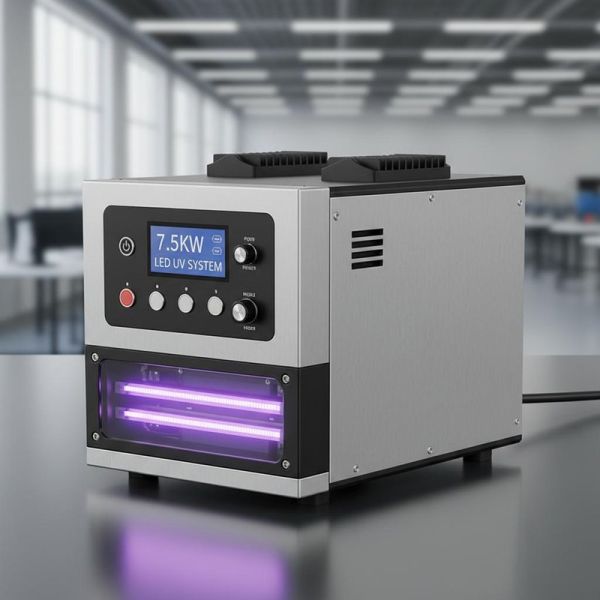

7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine
7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine
7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine
7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine
7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine
7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine
7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine
7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine
7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine
7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine
7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine
7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine
Specifications
Brand Name :
OSMANUV
Model Number :
OSM-LED-450T
Certification :
ISO9001 And CE
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Delivery Time :
35-45 Working days
Packaging Details :
Wooden Box
Supply Ability :
According to customer's demand
Product Name :
LED Embossing Machine
Power supply :
380V 50HZ
Total power :
7.5KW
Dimensions :
L:2500mm W:680mm H:1780mm
Weight :
280kg
Working width :
400mm
Feeding speed :
1-10 m/min
Feature :
Energy saving
Description
7.5KW LED UV Curing Systems for Printing, UV Coating and Curing Machine
Heat Dissipation Light Conveyor UV/LED Curing Machine

This UV ultraviolet curing machine is specifically designed for speaker horns, receivers, earphones, earplugs and various industrial applications including:

  • Micro speakers and electroacoustic industry
  • Optoelectronics, optical fibers, and microelectronics assembly bonding
  • IC protection sealing and integrated circuit chips
  • Glass plate wafers and lead bonding
  • Bare sheet sealing and electronic material assembly
  • UV curing adhesive bonding and surface coating
  • Encapsulation materials and optical adhesive bonding
  • Reinforcement adhesive and other UV light curing applications
Product Specifications
Product Name LED Embossing Machine
Model OSM-LED-450T
Specifications 2500mm long × 680mm wide × 1780mm high (Customizable according to requirements)
Features Suitable for wood, plastic, ceramics, calcium silicate board, metal and other planes covered with UV transfer film, creating clearer and more three-dimensional surface patterns
Conveying Net Width 400mm
Effective Working Size Width: 450mm; Thickness: 2-80mm; Minimum Length: 300mm
Power Supply Voltage 360-410V 50HZ
Material 1.5mm cold-rolled plate shell with liquid paint surface treatment, 100*50mm channel steel frame, 20cm A3 steel plate support wall
Coating System Single set roller coating system with steel rollers and silicone wheels, pneumatic guide wheel adjustment for even coating
Lamination System Double roller simultaneous squeezing with automatic entanglement device to prevent film wrinkling
Coating Roller Diameter: ￠205mm, Length: 1430mm, Japanese high-quality rubber, customizable hardness (30-50 degrees), solvent-resistant
Measuring Wheel Diameter: ￠130mm, Length: 1430mm, 45# seamless steel pipe with CO² welding, electroplated hard chrome surface
LED System Five independent light boxes with 2 British PRIMARC gallium lamps, 1 iron lamp, and 2 mercury lamps with adjustable height and angle
UV Lampshade German alanod reflective sheet material, increasing UV light utilization by over 30%
Control System Independent lamp control with strong/weak light conversion (75%/100% adjustable), LCD usage time recorder
Conveying Method Aluminum-laminated sheets for stable conveying and long service life
Conveying Speed 5-20m/min
Working Height 0-850mm (belt height from ground) with position display
Electrical Components OMRON relay motor, Arctic reducer, Delta inverter, CHNT contactor, CKC delay timer, Japan Izumi switches - all CE standard compliant
Safety Features Leakage circuit breaker, motor overload protection, emergency switch, control line fuse - international safety standards compliant
7.5KW Led Uv Curing Systems For Printing , Uv Coating And Curing Machine
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards and our products have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
