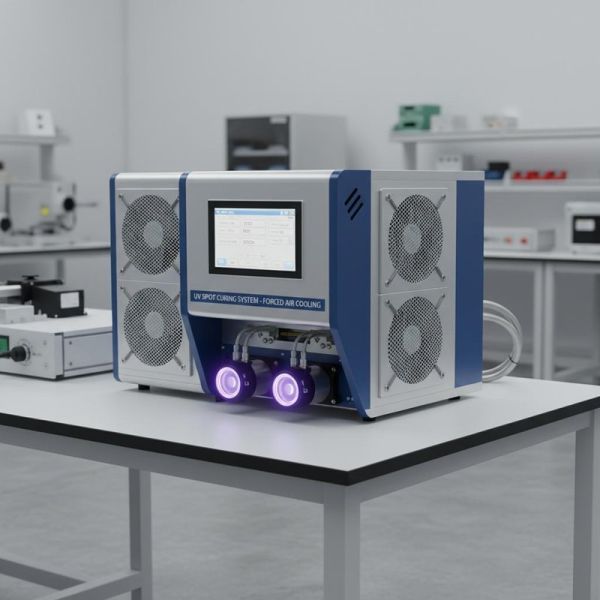

800mm width 27.5KW Uv Spot Curing System Forced Air Cooling
800mm width 27.5KW Uv Spot Curing System Forced Air Cooling
800mm width 27.5KW Uv Spot Curing System Forced Air Cooling
800mm width 27.5KW Uv Spot Curing System Forced Air Cooling
800mm width 27.5KW Uv Spot Curing System Forced Air Cooling
800mm width 27.5KW Uv Spot Curing System Forced Air Cooling
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-UV-406B
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Delivery Time :
35-45 Working days
Payment Terms :
T/T,Western Union
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Product Name :
uv curing machine
Weight :
650KG
Dimensions :
L:5800mm W:1050mm H:1780mm
Working width :
800mm
Speed :
3-20 m/min
Total power :
27.5KW
Description
800mm Width 27.5KW UV Spot Curing System with Forced Air Cooling
This industrial UV curing system is designed for multi-faceted UV light curing applications across various products. The machine features advanced cooling technology and precise control systems for optimal performance.
Technical Specifications
Housing Material Constructed from 1.5mm cold-rolled plates through bending and welding processes, finished with computer-color painting
UV Lamp System Features 6 imported 4KW UV lamp tubes with ultraviolet output above 90%. Configuration includes: 2 downward-facing lamps on top, 1 inward-facing 4KW lamp on each side, and 2 upward-facing lamps in the UV furnace. All lamps feature adjustable height and angle for multi-angle UV curing
UV Lampshade Utilizes professional German Alanod reflector material for enhanced durability and ultraviolet light utilization efficiency (over 38%)
Conveyor System 450mm wide black conveyor mesh belt with high-temperature resistance, UV resistance, and stable transportation characteristics
Transmission Speed 1-10 m/min with stepless speed regulation
Material Inlet/Outlet 10-200mm adjustable opening
Cooling Method Forced air cooling system
Control Panel Comprehensive instrumentation including: ammeter, voltmeter, individual UV lamp switches, time accumulator, temperature controller, speed controller, power switch, and status indicators
Electrical Components High-quality components including OMRON relays, CHNT contactors, CKC time delays, Japanese Izumi switches, and leakage circuit breakers
Safety Features
  • Leakage circuit breaker protection
  • Phase sequence protection
  • Temperature controller safety systems
  • Control circuit fuses
  • Compliance with international safety standards
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation for your review. Factory visits are also available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our manufacturing follows GMP & ISO standards, and our products have passed CE certification for international export.
What is your Quality Warranty?
One-year warranty with lifelong maintenance and technical support.
