18KW 1.5mm Thick Uv Floor Curing Machine With Mesh Belt
18KW 1.5mm Thick Uv Floor Curing Machine With Mesh Belt
18KW 1.5mm Thick Uv Floor Curing Machine With Mesh Belt
18KW 1.5mm Thick Uv Floor Curing Machine With Mesh Belt
18KW 1.5mm Thick Uv Floor Curing Machine With Mesh Belt
18KW 1.5mm Thick Uv Floor Curing Machine With Mesh Belt
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-UV-503C
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Delivery Time :
35-45 Working days
Payment Terms :
T/T,Western Union
Certification :
ISO9001 And CE
Packaging Details :
Wooden Box
Supply Ability :
According to customer's demand
Product Name :
UV curing machine
Power supply :
AC 380V 50HZ
Total power :
18KW
Feeding speed :
1-15 m/min
Color :
Computer white
weight :
780KG
Description

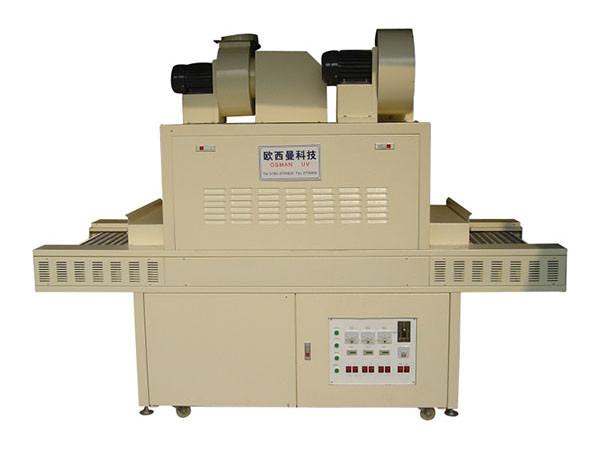

18KW 1.5mm Thick UV Floor Curing Machine With Mesh Belt

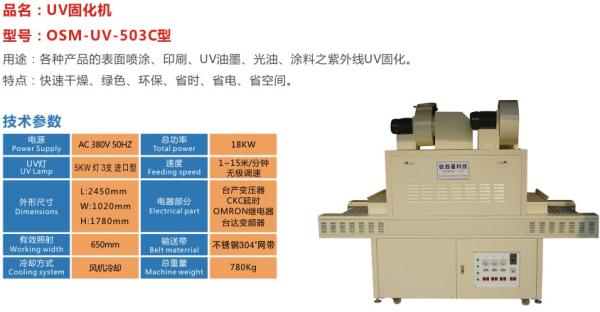

Product Specifications
Feature Specification
Material The shell is made of rolled plate with 1.5mm thickness and plastic spray surface coating
Lamp Tube 3 UV lamps (British PRIMAC 5KW), 3 top lamps at different angles. Lamp position, height, and angle are adjustable. UV wavelength: 320~400nm. Lamp lifespan: 800~1000 hours. Conveying width: 500mm
Vertical Height 800mm between conveyor belt and ground
Conveyor Belt Black mesh belt, resistant to UV rays, high temperature, and durable
Cooling System Fan system effectively discharges heat generated by UV lamps
Reflective Cover Made of aluminum with German Alanod imported reflective lenses, increasing UV reflection efficiency by 38%
Control System Independent control for each lamp group, LCD timer with reset function. Electrical components: CHNT contact, CKC timing, OMRON relay, NIPPON timer, and spring switch
Speed Control System Taiwan Delta frequency converter, stepless speed regulation from 0-10m/min
Safety Devices Leakage circuit breaker, emergency switch, phase sequence protection, transformer, motor overload protection, control circuit fuse. Complies with national safety standards
Key Features
  • UV section insulated with double-layer steel plates, 50mm insulation thickness for effective cooling
  • Two-stage lamp power output switching (75%, 100% adjustable)
  • UV lamp curing energy: 700-800mj/cm²
  • Curing range: 800-1200mw/cm²
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I know your machine has good quality?
We can test your samples on our machines and provide video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards and our products have passed CE certification for exporting.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
