Specifications
Brand Name :
Osmanuv
Model Number :
UV-UVA-203
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Delivery Time :
35-45 Working days
Payment Terms :
T/T,Western Union
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Supply Ability :
According to customer's demand
Product name :
UV curing system
Color :
Computer white
Power supply :
380V three-phase five-wire system
Specification :
1930mm long x 650mm wide x 1650mm high
Speed :
1-10 m/min
Warranty :
1 Year
Inlet and discharge port :
10-200mm adjustable
Description

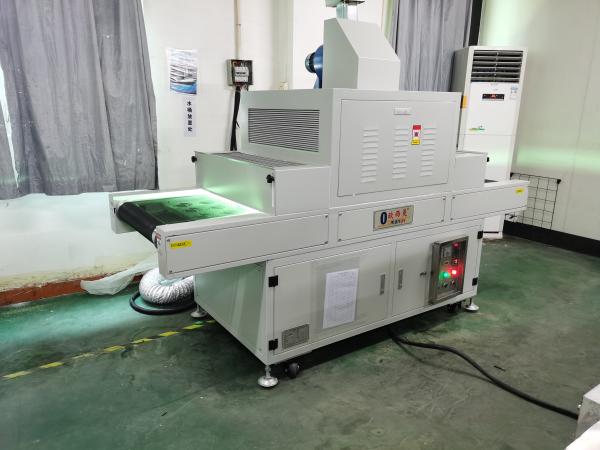

UV Curing Machine Forced Air Cooling Three-Phase
This industrial UV curing machine is designed for KT plates, glass, ceramics, and electronic parts. It provides instant drying for high production efficiency while delivering superior surface quality with high gloss, friction resistance, and solvent resistance. The conveyor belt features stepless speed regulation and anti-offset devices to ensure smooth, reliable product transportation.

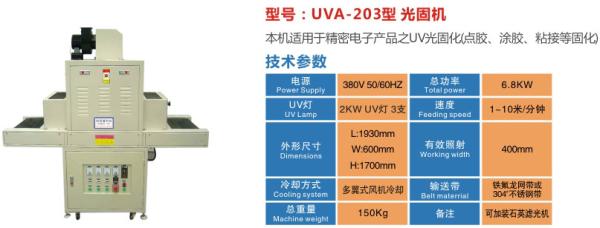

Technical Specifications
Specification Details
Power Supply 380V three-phase five-wire system
Dimensions 1930mm long × 650mm wide × 1650mm high
Housing Material 1.5 cold-rolled plate bending and welding, painted computer color
Conveyor Belt Black conveyor belt with 450mm network width, high temperature and UV resistant
Transmission Speed 1-10 meters/minute, stepless speed regulation
Inlet and Outlet 10-200mm adjustable
Cooling Method Forced air cooling
Key Features
  • UV Lamp System: 3 × 2KW imported UV lamps (1 top-mounted downward irradiation, 2 side-mounted inward irradiation) with >90% UV output, adjustable height and angle for multi-angle curing
  • UV Lampshade: Professional German Alanod reflective materials increase UV light utilization by over 38%
  • Control Panel: Comprehensive instrumentation including ammeter, voltmeter, UV lamp switches, timer, temperature controller, governor, and status indicators
  • Electrical Components: High-quality OMRON relays, CHNT contactors, CKC time delays, Japan Wazumi switches, and leakage circuit breakers
  • Safety Systems: Leakage circuit breaker, phase sequence protection, temperature controller, with control lines and fuses meeting international safety standards
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer with independent import and export rights. Our factory is located in Guangdong, China.
How can I verify your machine quality?
We provide sample testing on our machines with video documentation. Factory visits are available. Our products are widely used in China, Southeast Asia, South America, and Europe.
What certifications do you have?
Our production follows GMP & ISO standards, and our products have passed CE certification for export.
What is your Quality Warranty?
One year warranty with lifelong maintenance and technical support.
