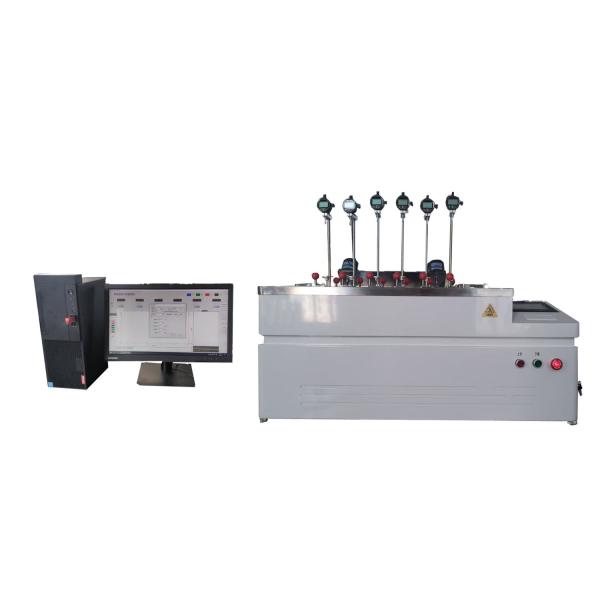

ASTM D1525 Automatic Lifting Plastic HDT VICAT Tester With Four Group Test
ASTM D1525 Automatic Lifting Plastic HDT VICAT Tester With Four Group Test
ASTM D1525 Automatic Lifting Plastic HDT VICAT Tester With Four Group Test
ASTM D1525 Automatic Lifting Plastic HDT VICAT Tester With Four Group Test
Specifications
Brand Name :
JINHAIHU
Model Number :
XRW-300BT-Ⅳ
Certification :
ISO9001
Place of Origin :
BEIJING, CHINA
MOQ :
1 set
Payment Terms :
T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability :
15 sets per month
Delivery Time :
7-15 working days
Packaging Details :
Standard export wooden cases
Product Name :
ASTM D1525 automatic lifting plastic HDT VST softening temperature tester with Four-group test
Product Category :
HDT VICAT Testing Machine
Test Standards :
ISO75-1, ISO306, GB/T8802, GB/T1633, GB/T1634, ASTM D 1525-1991, ASTM D648-06
Heating Medium :
Silicone oils, glycerine, ethylene glycol, mineral oil
Current Source :
4KW, 220VAC, 50HZ
Deformation Measurement Range :
-1.00～10.00mm
Test Stations :
4
Maximum Deformation Measurement Error :
0.01mm
Description

ASTM D1525 automatic lifting plastic HDT VST softening temperature tester with Four-group test



Function:
ASTM D1525 four-group automatic lifting HDT/VST tester for plastics, rubber, nylon, and electrical insulation materials. It determines heat distortion temperature and Vicat softening point, complying with IS075(E), IS0306(E), GB/T8802, GB/T1633, GB/T1634, etc.

Test Method:

A flat-ended needle with specified mass contacts the test specimen. The load can be:
  • 10 ± 0.2N
  • 50 ± 1.0N


Heating rates:
  • Rate A: 50 ± 5 °C/h
  • Rate B: 120 ± 10 °C/h
The temperature when the needle penetrates 1 ± 0.01 mm is the Vicat softening temperature.

Instrument characteristics:

  1. The testing machine offers simple operation, convenient use, stable performance, and high precision.
  2. Equipped with a sample rack lifting function, it raises/lowers the holder at test start/end.
  3. It monitors test temperature and deformation in real time.

Test Standards:

ISO75-1, ISO306, GB/T8802, GB/T1633, GB/T1634, ASTM D 1525-1991, ASTM D648-06, BS EN727

Technical Parameters:

Model XRW-300BT-Ⅳ
1)Temperature control range Room temperature ~300℃
2)Maximum temperature error ±0.5℃
3)Heating rate 50℃/h,120℃/h,Or set between 50-120℃ / h
4)Temperature measurement point 1
5)Test frame number 4
6)The range of deformation measurement -0.1~10mm
7)Maximum deformation error ±0.005mm
8)Deformation resolution 0.001mm
9)The sample supports the span 64mm,100mm
10)Load bar and press (needle) weight 74g
11)Voltage and power 220V, 4KW
12Thermal expansion coefficient of sample itself <0.005/100℃
13)working medium Methylsilicone oil or transformer oil
14)cooling-down method Natural cooling above 150℃, water cooling below 150℃ or natural cooling.
