HDT VICAT Tester instrument designed to test heat deflection temperature and VICAT softening point of polymer samples
HDT VICAT Tester instrument designed to test heat deflection temperature and VICAT softening point of polymer samples
HDT VICAT Tester instrument designed to test heat deflection temperature and VICAT softening point of polymer samples
HDT VICAT Tester instrument designed to test heat deflection temperature and VICAT softening point of polymer samples
Specifications
Heating Medium :
Silicone oils, glycerine, ethylene glycol, mineral oil
Place of Origin :
BEIJING, CHINA
Model Number :
XRW-300F
Loading :
10±0.2N, 50±1.0N
Payment Terms :
T/T,L/C,D/A,D/P
Maximum Temperature Error :
±0.5℃
Delivery Time :
10~15 work days
Heating Rate B :
120℃/h
MOQ :
1 set
Packaging Details :
Standard export wooden cases
Product Category :
HDT VICAT Testing Machine
Supply Ability :
15 sets per month
Current Source :
4.5KW, 220VAC, 50HZ
Span Of Sample Supports :
64mm, 100mm
Certification :
ISO9001, CE
Brand Name :
TH
Product Name :
HDT VICAT Tester instrument designed to test heat deflection temperature and VICAT softening point of polymer samples
Description
HDT VICAT Testing Machine
Professional instrument designed to test heat deflection temperature and VICAT softening point of polymer samples with precision and reliability.
Product Overview
  • Dedicated Vicat plasticity evaluation system measuring needle penetration depth under defined loading and thermal conditions
  • Characterizes plastic behavior and rigidity of polymeric materials with high accuracy
  • Compact design (900mm×580mm×1400mm) for easy deployment in laboratory and inspection environments
  • Intuitive human-machine interface with straightforward control logic for user-friendly operation
Technical Specifications
Product Category HDT VICAT Testing Machine
Product Name Determination Of Vicat Softening Temperature Of Plastic Rate A 50℃/h Rate B 120℃/h
Temperature Control Range Room temperature ～300℃
Heating Rate A 50℃/h
Heating Rate B 120℃/h
Current Source 4.5KW, 220VAC, 50HZ
Test Stations 6
Span Of Sample Supports 64mm, 100mm
Deformation Measurement Range -1.00～10.00mm
Maximum Deformation Measurement Error 0.001mm
Test Standards ISO75-1, ISO306, GB/T8802, GB/T1633, GB/T1634, ASTM D 1525-1991, ASTM D648-06
Key Features
  • Temperature range from ambient to 300℃ with deviation within ±0.5℃ for high fidelity testing
  • Deformation detection range of -1.00 mm to 10.00 mm with maximum error of 0.001 mm
  • Captures subtle material deformation under combined thermal and mechanical loads
  • Thermal expansion coefficient of specimen bracket controlled below 0.005mm/100℃
Applications
  • Core testing device for plastic production enterprises, research institutions, and quality inspection departments
  • Identifies critical temperature at which plastic materials soften and deform under standardized loading
  • Applicable to PVC, PE, PP, PS, ABS and all thermoplastic materials
  • Ideal for plastic pipes, profiles, sheets, and construction plastic materials in building industry
Support & Services
  • On-site installation and commissioning guidance
  • Operational and maintenance skill training
  • Instrument calibration and performance validation services
  • Component repair and spare-part replacement service
  • Technical consultation and fault-diagnosis support
Packaging & Shipping
Packaging
Heavy-duty wooden crates with shock-absorbing foam cushioning, sealed with standardized identification marks and handling guidance labels.
Shipping
Reliable logistic carriers with freight charges based on weight and distance. Tracking ID provided for real-time shipment monitoring. Delivery lead time varies by destination.
Frequently Asked Questions
What is the model designation of this unit?
The assigned model designation for this product is XRW-300F.
What certification credentials does this instrument possess?
This instrument holds valid ISO9001 certification.
What is the minimum purchasing volume for this item?
The minimum order quantity stands at 1 complete set.
What production capacity can be provided for this product?
The monthly supply capacity reaches 15 sets.
What is the required lead-time for shipment?
The delivery lead-time ranges from 10 to 15 working days.
What packaging solution is adopted for shipment?
The product is packed inside standard export-grade wooden crates.
Product Images

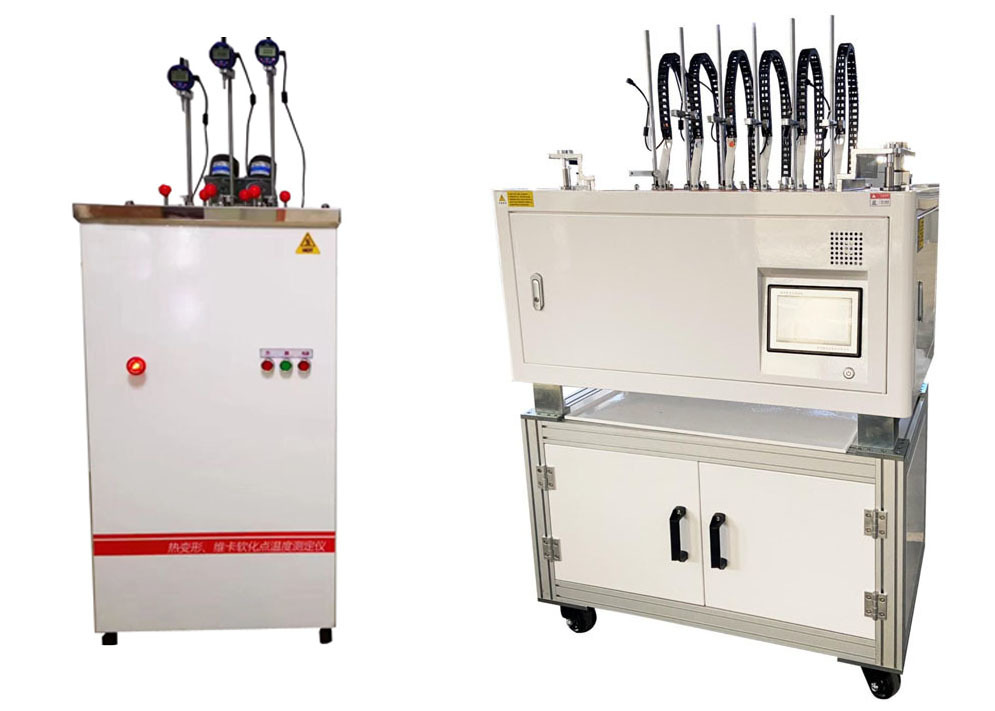

HDT VICAT Tester instrument designed to test heat deflection temperature and VICAT softening point of polymer samples HDT VICAT Tester instrument designed to test heat deflection temperature and VICAT softening point of polymer samples HDT VICAT Tester instrument designed to test heat deflection temperature and VICAT softening point of polymer samples
