Protective Glove Cutting Tester
Protective Glove Cutting Tester
Protective Glove Cutting Tester
Protective Glove Cutting Tester
Protective Glove Cutting Tester
Protective Glove Cutting Tester
Protective Glove Cutting Tester
Protective Glove Cutting Tester
Specifications
Brand Name :
Dongjun
Model Number :
DJ-DZ-366
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Load Precision :
≤0.5%
Impact Frequency :
60 blows /min
Model No :
UP-4025
Item Name :
Elastic Tape Fatigue Testing Machine
Vpressure :
0～1000N
Purpose :
Testing durability, comfort, and safety of footwear
Description

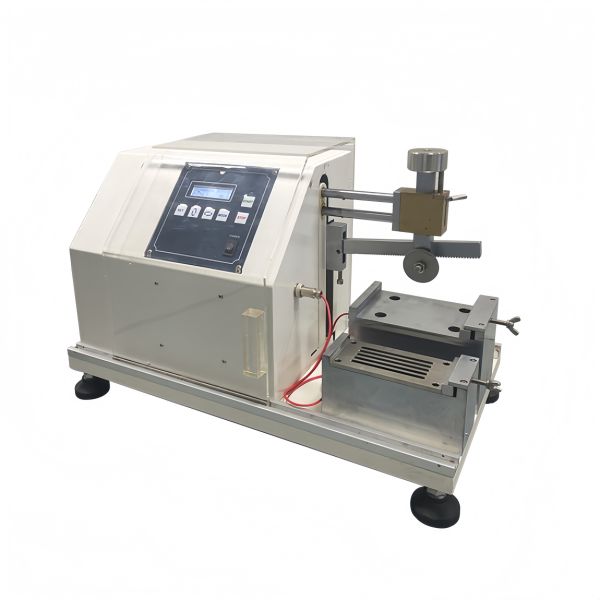

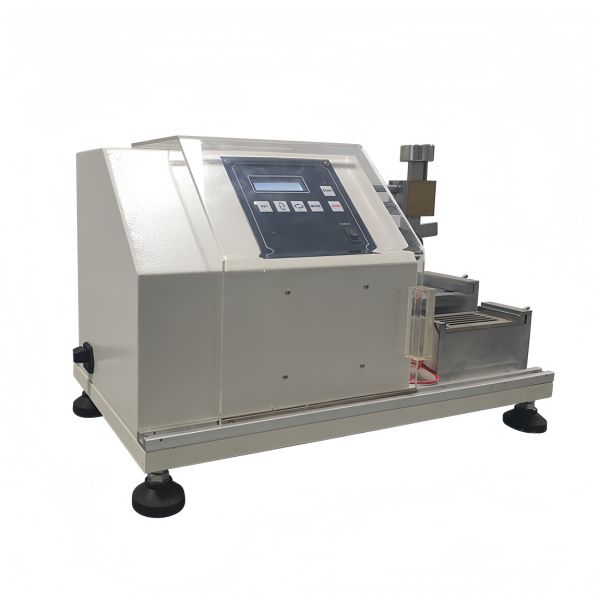

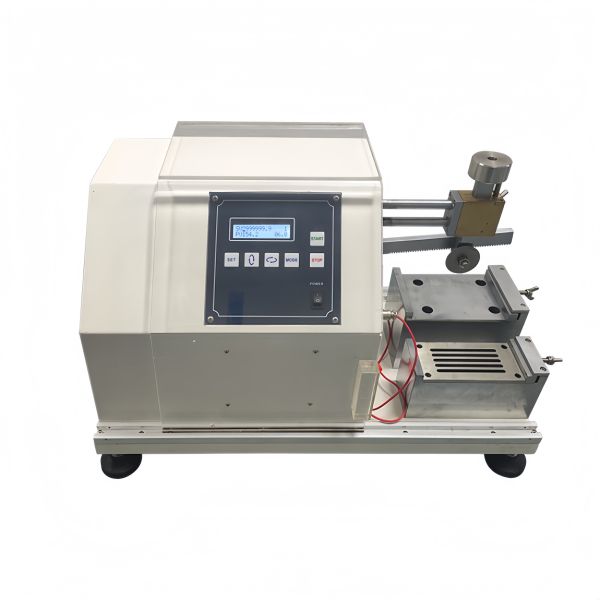

Protective Glove Cutting Tester

Product use

The Protective Glove Cutting Tester is a professional precision instrument designed to evaluate the cut resistance of protective gloves, widely applied in quality inspection, R&D and production of personal protective equipment (PPE). It complies with international standards such as EN 388, ISO 20344 and GB 24541, ensuring accurate and authoritative test results.
Its core working principle is to use a counter-rotating circular blade to cut the glove sample under a specified load (5±0.05N), with the blade moving reciprocally (50mm stroke) to simulate actual cutting scenarios. Equipped with an automatic detection system, it stops working immediately when the blade cuts through the sample and records the cutting cycles to quantify the cut resistance index.

The tester features a high-hardness circular blade (45±0.5mm diameter, 30°~35° cutting angle), a conductive rubber sample support and a precise counter. It is suitable for most flexible protective glove materials but not for rigid ones like metal mesh gloves. It plays a crucial role in industries such as metal processing, glass manufacturing and food processing, helping enterprises ensure product safety and meet relevant certification requirements.

Parameters

Model DZ-366
Cutting stroke 50mm
Load 5N±0.05N
Maximum cutting speed 10cm/S (Linear velocity)
counter LCD,0~99999
Test Positions 2
Standard EN-388, ISO-20344
Drop Height 1000±5mm
Power AC 220V 50Hz 50W

Protective Glove Cutting Tester

Working principle of protective glove cutting test equipment

The working principle of the protective glove cutting test equipment is to simulate actual cutting scenarios to scientifically and quantitatively evaluate the cut resistance of protective glove samples.
During the test, the equipment uses a counter-rotating circular blade as the core cutting component, which acts on the glove sample under a specified constant load (5±0.05N). The blade performs reciprocal movement with a fixed stroke (50mm), continuously contacting and cutting the sample to simulate the actual cutting force and movement in work scenarios.

Main Structure and Components of the Safety Helmet Impact Testing Machine

The equipment is equipped with a high-sensitivity automatic detection system. When the blade cuts through the glove sample, the system will immediately stop the operation of the blade and the reciprocating mechanism. At the same time, the built-in precise counter will record the number of cutting cycles from the start of the test to the moment of penetration. This number of cycles is used as a key index to quantify the cut resistance of the glove, reflecting the ability of the glove material to resist cutting damage.

Protective Glove Cutting Tester

Company Profile

Protective Glove Cutting Tester

PACKING AND TRANSPORTATION

Protective Glove Cutting Tester

Protective Glove Cutting Tester

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
