Shoe Sole Bending Test Equipment
Shoe Sole Bending Test Equipment
Shoe Sole Bending Test Equipment
Shoe Sole Bending Test Equipment
Shoe Sole Bending Test Equipment
Shoe Sole Bending Test Equipment
Shoe Sole Bending Test Equipment
Shoe Sole Bending Test Equipment
Specifications
Brand Name :
Dongjun
Model Number :
DJ-DZ-372 EN
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Weight :
5kg,90 KG,about 60kg
Power supply :
220V 50Hz,AC220V,AC 380V/50Hz
Function :
shoes bending testing machine,rubber's tensile strength,Imapct test,use to testing footwear,plastic
Testing angle :
90°
Display :
Digital Display,17 inch
Description

Shoe Sole Bending Test Equipment

Product use

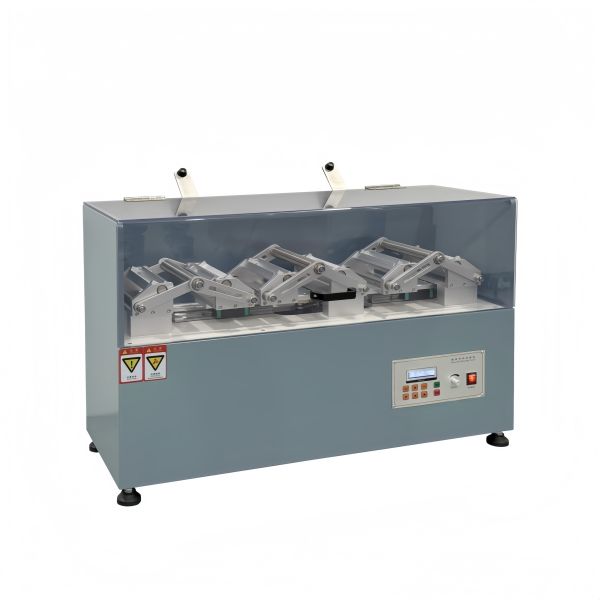

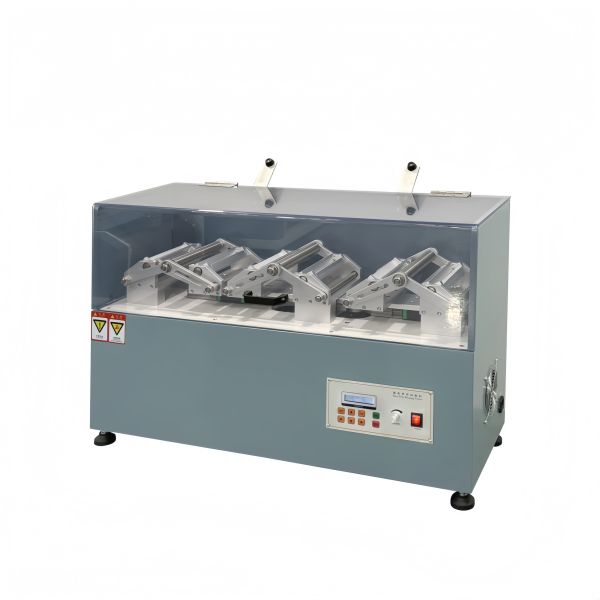

The shoe sole bending tester mainly consists of a stable machine frame, precision driving mechanism, clamping fixture, bending actuator, counter system, control system and display unit.The rigid frame ensures stable operation during repeated bending tests. The driving system provides stable and adjustable bending frequency. The fixtures firmly fix the shoe sole or sample to prevent displacement. The counter accurately records the number of bending cycles in real time, while the control system automatically controls the test process. The display unit shows real-time test data and remaining time. With these components, the machine achieves stable performance, high test accuracy and reliable results for sole fatigue and flex resistance evaluation.

Parameters

Bending angle

90°

Round shaft diameter

30mm

Bending speed

125 CYCLES/MIN

Fixture width

155MM

Try at same time

3pcs soles

Counter

LCD 0-999999

Power

200W

Volume

95x73.5×50CM

Weight

98kg

Power

ACZZOV, 3A


Shoe Sole Bending Test Equipment

Shoe Sole Bending Test Equipment Working Principle

The Shoe Sole Bending Tester is used to determine the flex resistance and fatigue performance of shoe soles, leather, and other footwear materials under repeated bending action.

Main structure and components of the DZ-372 EN shoe sole bending tester

The DZ-372 EN Shoe Sole Bending Tester, designed to comply with EN standards for footwear testing, features a scientific and robust structure, consisting of core components that ensure stable operation, high test accuracy and strict compliance with international testing requirements. Its main structure and components are as follows:

Shoe Sole Bending Test Equipment

Company Profile

Shoe Sole Bending Test Equipment

PACKING AND TRANSPORTATION

Shoe Sole Bending Test Equipment

Shoe Sole Bending Test Equipment

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
