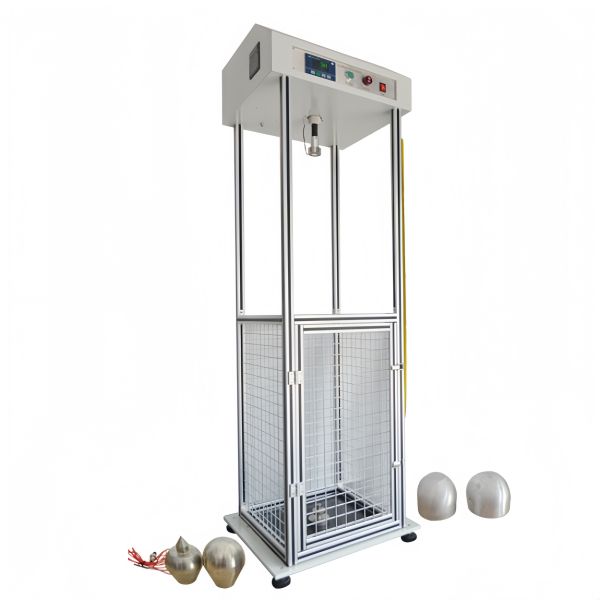

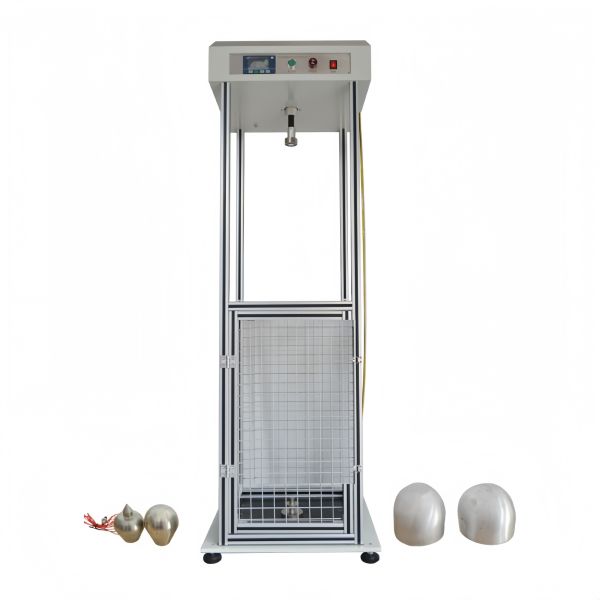

Safety Helmet Impact Testing Machine
Safety Helmet Impact Testing Machine
Safety Helmet Impact Testing Machine
Safety Helmet Impact Testing Machine
Safety Helmet Impact Testing Machine
Safety Helmet Impact Testing Machine
Safety Helmet Impact Testing Machine
Safety Helmet Impact Testing Machine
Specifications
Brand Name :
Dongjun
Model Number :
DJ-DZ-351A
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Max Test Force :
20 kN
Force Accuracy :
±1% F.S.
Vibration frequency :
10±2 mm/min
Penetration Needle Diameter :
4.5 mm
Test Standard :
SATRA　TM144， EN13287
Holder Thickness :
1.25″(31.8m)
Inner Capacity :
50*50*60cm (L x H x D)
Measurement Accuracy :
±0.1 mm or better
Testing Standards :
ISO, ASTM, EN, AATCC
Description

Safety Helmet Impact Testing Machine

Product use

The Safety Helmet Impact Testing Machine is a precision laboratory instrument designed to evaluate the impact absorption and puncture resistance performance of safety helmets, in full compliance with global industry standards. It simulates real-world impact scenarios via free-fall weights, measuring the peak force/acceleration transmitted to the headform to determine if the helmet meets mandatory safety criteria for industrial, construction, and protective use. Widely adopted by helmet manufacturers, third-party testing labs, quality inspection authorities and R&D institutions.

Parameters

Model DZ-351A
Control Method Microcomputer automatic control
Drop Head Types Impact Head & Puncture Head
Force Display LED digital display, accurate to 1N, automatically save the maximum force value
Head Form 1#,2#head form 1pc, meet GB/T 2812-2006 annex A
Drop head The mass is 5 ~ 5.01kg, hemispherical, radius: 48mm, material: 45 #
Puncture Head Mass: 3 ~ 3.05kg, cone angle 60 °, cone tip radius: 0.5mm, length 40mm, maximum end diameter 28mm, hardness HRC45
Drop Height 1000±5mm
Power AC 220V 50Hz 50W

Safety Helmet Impact Testing Machine

Working Principle of Helmet Impact Testing Machine

The helmet, pre-adjusted for temperature and humidity, is mounted onto a standard head mold.

Set the drop height (usually 1 meter) and select the test mode (impact or puncture).

The machine automatically raises the weight to the set height, locks it, and then releases it for free fall.

At the moment of impact, dynamic sensors capture the peak force/acceleration within milliseconds; the software records and displays this data.

For puncture tests, if the cone contacts the head mold, an electrical contact indicator will sound an alarm, confirming penetration.

Main Structure and Components of the Safety Helmet Impact Testing Machine

Vertical Test Frame and Guide Rail: Rigid steel frame with precision linear guide rails to ensure the weight falls vertically without deflection; enclosed safety net/protective cover prevents debris from flying during testing.
Head Mold: Standard head molds #1 and #2 aluminum-silicon alloy (compliant with GB/T 2812, ISO 3873 standards), mounted on a rigid base with a high-dynamic weighing sensor.

Safety Helmet Impact Testing Machine

Company Profile

Safety Helmet Impact Testing Machine

PACKING AND TRANSPORTATION

Safety Helmet Impact Testing Machine

Safety Helmet Impact Testing Machine

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
