Safety Shoe Impact Tester
Safety Shoe Impact Tester
Safety Shoe Impact Tester
Safety Shoe Impact Tester
Safety Shoe Impact Tester
Safety Shoe Impact Tester
Safety Shoe Impact Tester
Safety Shoe Impact Tester
Specifications
Brand Name :
Dongjun
Model Number :
DJ-DZ-351
Certification :
ISO9001，CE，
Place of Origin :
Dongguan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
15-25Work days
Packaging Details :
Wooden crate packaging
Impact energy :
200±2 J or 100±2 J 100±2 J 101.7±2 J
Impact hammer Wedge :
Length 75mm,Angle 90°
Cylinder :
Diameter 25.4mm
Impact surface :
Corner radius R3 mm
Description

Safety Shoe Impact Tester

Product use

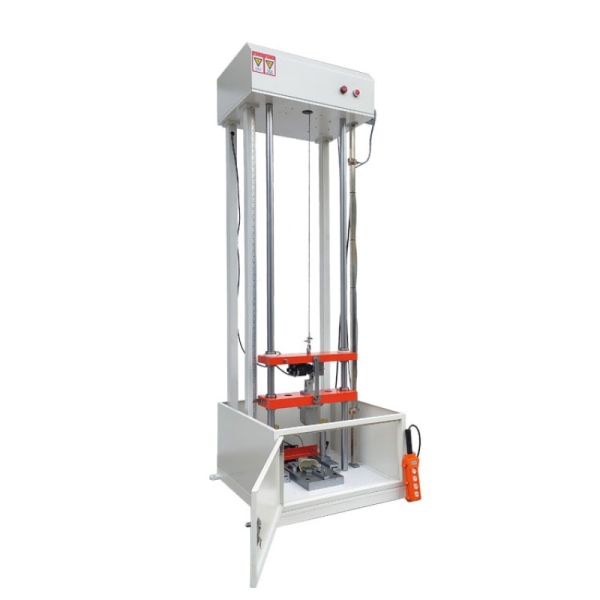

Safety Shoe Impact Tester is the Footwear Testing Device intended for the determination of impact resistance of safety shoe's toecap under specified conditions.

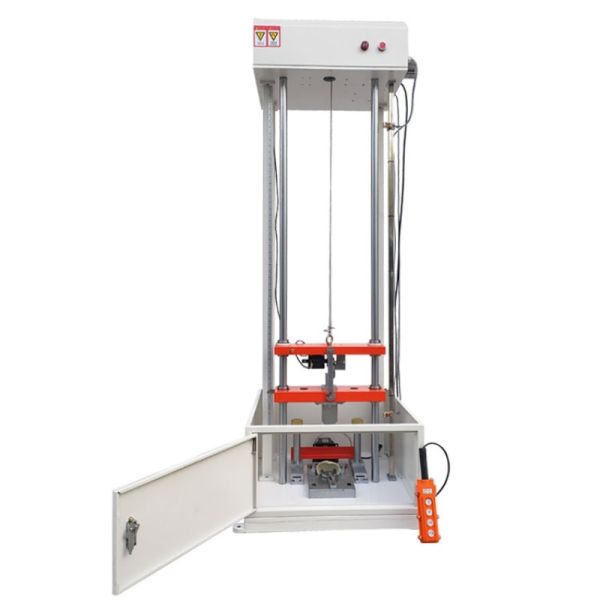

The test piece is the forepart of the footwear by cutting off the toe end 30 mm behind the rear edge of the toecap. A cylinder is positioned on one of its ends inside the test piece. The specimen is placed and secured in the directed place of the testing machine to make sure the striker is capable of hitting the back and the front of the toecap. The striker is elevated slowly to the appropriate height and then released to blow the test piece to deliver impact energy. The lowest height to which the cylinder has been compressed is measured with a dial gauge to evaluate the impact resistance.

Parameters

Drop hammer weight

(EN)20±0.2kg,(ANSI)22.7±0.2 kg

Impact energy

(EN)200 J,( BS, ANSI)100±2 J

Impact blade

(EN)R 3±0.1mm,(ANSI)ψ25.4 mm

Valid stroke

0-1100 mm

Weight (approx.)

240 kg

Power

1∮, AC 220V, 3A

Safety Shoe Impact Tester

Safety Shoes Impact Test Equipment

Safety Shoes Impact Test Equipment is suitable for safety shoes, labor protection shoes, work shoes and monomer of baotou steel impact test, in order to understand safety index of the product ,and also be used for a variety of impact (drop) tests with the appropriate anvils and strikers , Safety Shoes & Footwear Impact Tester is ideal for testing to the safety footwear standards and meets the full requirements of the latest revisions to the standards.

Safety Shoe Impact Test Machine

This Safety Shoe Impact Test Machine is used to determine the impact resistance performance of safety shoes, protective footwear, and work shoes. It applies a standard impact force to the toe cap area by dropping a specified impact hammer from a fixed height, simulating heavy object impact in industrial working environments.

Safety Shoe Impact Tester

Company Profile

Safety Shoe Impact Tester

PACKING AND TRANSPORTATION

Safety Shoe Impact Tester

Safety Shoe Impact Tester

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
